Coincident Work between Upper Steel Structure and Lower Concrete Structure of Ningxia Flower Art Center

Abstract:

In order to investigate the joint work pattern of upper steel part and lower supporting concrete part，the example of Ningxia flower art center was adopted to create finite element models for upper steel structure only and steel-concrete structure. And a further analysis for the models was done in terms of statistic analysis、elastic analysis under frequently occurred earthquake and dynamic elastic-plastic time-history analysis under seldom occurred earthquake. Besides, the influence of concrete structure’s elastic-plastic property to the whole structure under seldom occurred earthquake was discussed. The results show that structure response such as displacement and internal force increase considerably under joint work pattern. Moreover，the magnification effect of the lower structure about seismic load can not be ignored when designing and analyzing. And the structure’s seismic response will decline if we take into account the lower concrete's elastoplasticity under seldom occurred earthquake.

You might also be interested in these eBooks

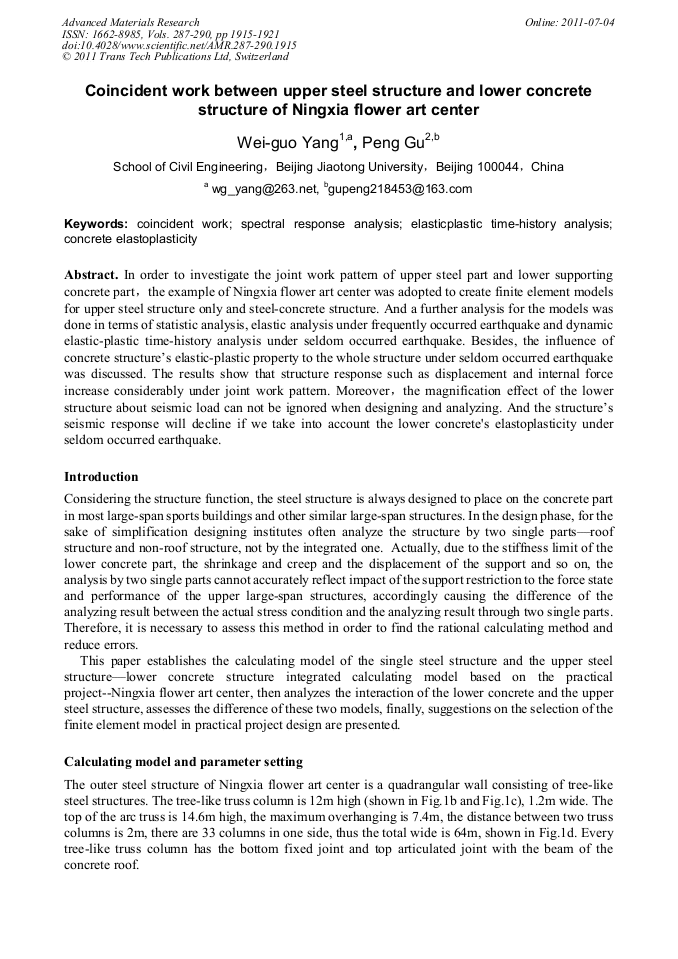

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 287-290)

Pages:

1915-1921

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.287-290.1915

Citation:

Cite this paper

Online since:

July 2011

Authors:

Wei Guo Yang, Peng Gu

Keywords:

Coincident Work, Concrete Elastoplasticity, Elasticplastic Time-History Analysis, Spectral Response Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wang Shu，Ge Jiaqi，Zhang Qingliang etc. Earthquake resistance behavior analysis and research of the coincident structural steel top roof and bottom structures of the theatre of Henan Provincial Art Centre.[J].building structure，2008，38(12). In Chinese

Google Scholar

[2] Huang Jiyang. Prestressed system analysis and study on seismic behavior of large cantilevered steel roof structure. [D].Beijing：Beijing, Jiaotong University.2008. In Chinese

Google Scholar

[3] R.W. Clough J.Penzien, Dynamics of Structures. Second edition. Translated by Pen Jin. & Wang Guangyuan. Bejing：Higher education Press，2006. In Chinese

Google Scholar

[4] Cao Z, Xue Shuduo. Seismic theory and design of space structure [M]. Beijing. Science Press，2005. In Chinese

Google Scholar
