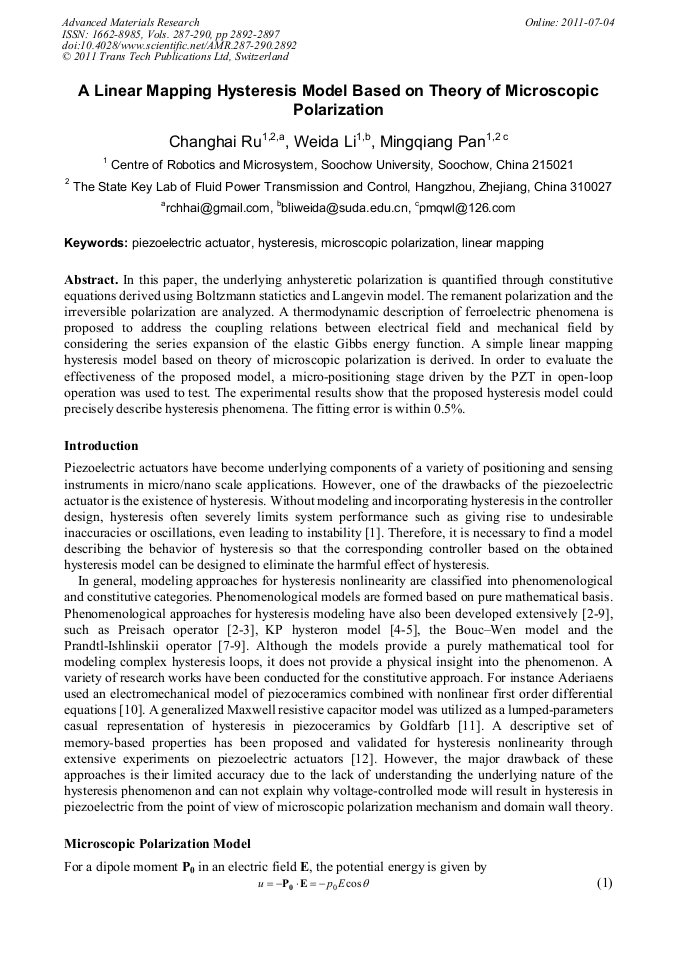

A Linear Mapping Hysteresis Model Based on Theory of Microscopic Polarization

Abstract:

In this paper, the underlying anhysteretic polarization is quantified through constitutive equations derived using Boltzmann statictics and Langevin model. The remanent polarization and the irreversible polarization are analyzed. A thermodynamic description of ferroelectric phenomena is proposed to address the coupling relations between electrical field and mechanical field by considering the series expansion of the elastic Gibbs energy function. A simple linear mapping hysteresis model based on theory of microscopic polarization is derived. In order to evaluate the effectiveness of the proposed model, a micro-positioning stage driven by the PZT in open-loop operation was used to test. The experimental results show that the proposed hysteresis model could precisely describe hysteresis phenomena. The fitting error is within 0.5%.

• Periodical: Advanced Materials Research (Volumes 287-290)
• Pages: 2892-2897
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.287-290.2892
• Online since: July 2011
• Authors: Chang Hai Ru, Wei Da Li, Ming Qiang Pan
• Keywords: Hysteresis, Linear Mapping, Microscopic Polarization, Piezoelectric Actuator

References

[1] G. Tao and P. V. Kolotovic, Adaptive control of plants with unknown hysteresis, IEEE Trans. Autom. Control, 40(2): 200–212, 1995.

[2] P. Ge and M. Jouaneh, Tracking control of a piezoelectric actuator IEEE Transactions on Control Systems Technology, 4(3): 211-21, 1996.

[3] Ping Ge and Musa Jouaneh., Generalized Preisach Model for Hysteresis nonlinearity of Piezoceramic Acruators, Precision Engineering, 20:99-111, 1997.

DOI: 10.1016/s0141-6359(97)00014-7

[4] M. A. Krasnoskl'skii and A. V. Pokrovskii, System with Hysteresis. New York: Springer-Verlag, 1989.

[5] Webb, G.; Kurdila, A.; Lagoudas, D., Adaptive Hysteresis Model for Model Reference Control with Actuator Hysteresis. Journal of Guidance, Control and Dynamics, 23(3): 459-465, 2000.

DOI: 10.2514/2.4551

[6] J. Ha, Y. Kung and R. Fung, A comparison of fitness functions for the identification of a piezoelectric hysteretic actuator based on the real-coded genetic algorithm. Sensors and Actuators A: Physical, 132:643–650, 2006.

DOI: 10.1016/j.sna.2006.02.022

[7] Kuhnen K and Janocha H., Compensation of the Creep and Hysteresis Effects of Piezoelectric Actuators with Inverse Systems, in 6th International Conference on New Actuators, Bremen, 1998: 309-12.

DOI: 10.1016/s0924-4247(99)00215-0

[8] P.Kreci and K.Kuhnen, Inverse control of systems with hysteresis and creep, in IEEE Proc, Control Theory Appl. 148 (3): 185-92, 2001.

[9] Kuhnen K. and Janocha H., Real-time compensation of hysteresis and creep in piezoelectric actuators, Sensors and Actuators A: Physical, 79:83-9, 2000.

DOI: 10.1016/s0924-4247(99)00215-0

[10] Aderiaens, H., Koning, W., and Baning, R., Modeling Piezoelectric Actuators, IEEE/ASME Trans. Mechatron., 5: 331–341, 2000.

DOI: 10.1109/3516.891044

[11] Goldfarb, M., and Celanovic, N., A Lumped Parameter Electromechanical Model for Describing the Nonlinear Behavior of Piezoelectric Actuators, ASME J. Dyn. Syst. Meas. Control, 119:478–485, 1997.

DOI: 10.1115/1.2801282

[12] Bashash, S., and Jalili, N., Underlying Memory-Dominant Nature of Hysteresis in Piezoelectric Materials, J. Appl. Phys., 100(1):014103–014109, 2006.

DOI: 10.1063/1.2208805
