Effect of Microstructural Evolution on Mechanical Properties of 55NiCrMoV7 Steel

Meng Ting Fan; Ming Yue Sun; Dian Zhong Li

doi:10.4028/www.scientific.net/AMR.287-290.848

Paper Titles

Study on Wear-Resistance of Laser Surface Remelted-Strengthening High NiCr Indefinite Chilled Iron Roll Material
p.831

Fracture Failure Analysis of the 60Si2Mn Spring Steel Liner
p.836

Water Model Study on Circulation Rate Influenced by Snorkel, Nozzle and Blowing Parameters in RH Refining
p.840

Experimental Study of Fly Ash Concrete Attacked by Sulphuric Acid
p.844

Effect of Microstructural Evolution on Mechanical Properties of 55NiCrMoV7 Steel
p.848

Study on Mechanical Properties and Microstructure of High Boron Alloy
p.853

Rutting Treatment Technology of Asphalt Pavement of Abrupt Slope Section in Heavy Load and High Temperature Zone
p.858

A Review of Strength Models in Association with Pore Structure of Cement-Based Materials
p.862

Study on Microstructure and Properties of CuZn37Mn3Al2FeSi Alloy
p.868

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 287-290Effect of Microstructural Evolution on Mechanical...

Effect of Microstructural Evolution on Mechanical Properties of 55NiCrMoV7 Steel

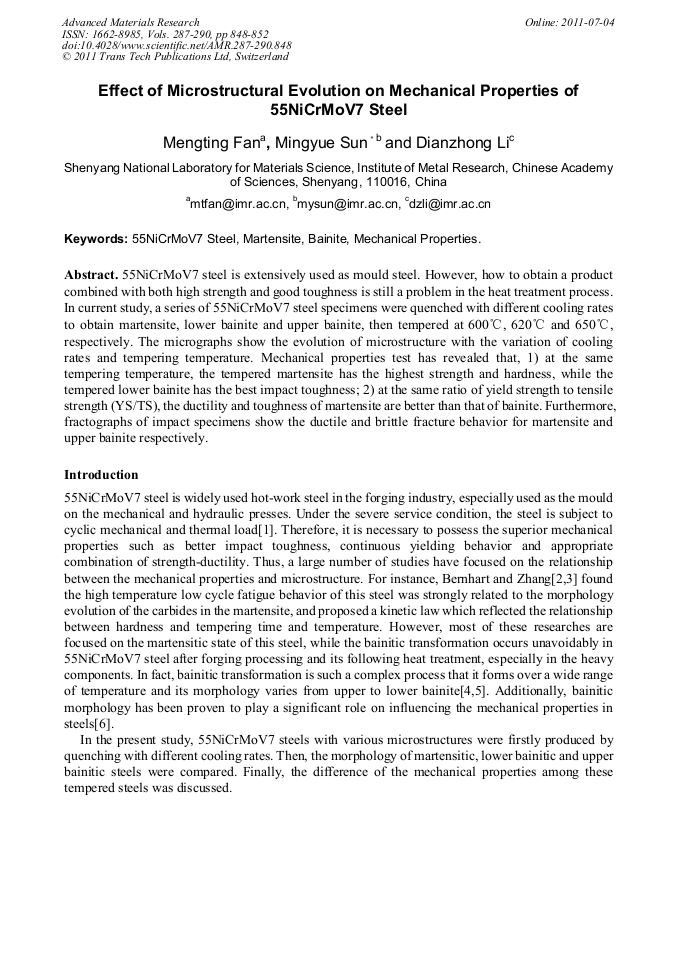

Abstract:

55NiCrMoV7 steel is extensively used as mould steel. However, how to obtain a product combined with both high strength and good toughness is still a problem in the heat treatment process. In current study, a series of 55NiCrMoV7 steel specimens were quenched with different cooling rates to obtain martensite, lower bainite and upper bainite, then tempered at 600°C, 620°C and 650°C, respectively. The micrographs show the evolution of microstructure with the variation of cooling rates and tempering temperature. Mechanical properties test has revealed that, 1) at the same tempering temperature, the tempered martensite has the highest strength and hardness, while the tempered lower bainite has the best impact toughness; 2) at the same ratio of yield strength to tensile strength (YS/TS), the ductility and toughness of martensite are better than that of bainite. Furthermore, fractographs of impact specimens show the ductile and brittle fracture behavior for martensite and upper bainite respectively.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 287-290)

Pages:

848-852

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.287-290.848

Citation:

Cite this paper

Online since:

July 2011

Authors:

Meng Ting Fan, Ming Yue Sun, Dian Zhong Li

Keywords:

55NiCrMoV7 Steel, Bainite, Martensite

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Z. Zhang, Y. Qi, D. Delagnes and G. Bernhart: Journal of Iron and Steel Research, International. 2007, 14(6), pp.68-73

Google Scholar

[2] G. Bernhart, G. Moulinier, O. Brucelle and D. Delagnes: International Journal of Fatigue. 21 (1999), pp.179-186

Google Scholar

[3] Z. Zhang, D. Delagnes and G. Bernhart: Materials Science and Engineering A. 380(2004), pp.222-230

Google Scholar

[4] S. A. Sajjadi and S. M. Zebarjad: Journal of Materials Processing Technology. 189(2007), pp.107-103

Google Scholar

[5] C. Gupta, G. K. Dey, J. K. Chakravartty, D. Srivastav and S. Banerjee: Scripta Materialia. 53(2005), pp.559-564

DOI: 10.1016/j.scriptamat.2005.04.031

Google Scholar

[6] R. Bakhtiari and A. Ekrami: Materials Science and Engineering A. 525(2009), pp.159-165

Google Scholar

[7] Z. Zhang, Y. Qi, X. Wang, D. Delagnes and G. Bernhart: Transaction of Materials and Heat Treatment. 2007, 28(2), pp.73-76

Google Scholar

[8] C. Nills: Handbook of Fractography. ASM International, USA, (1990)

Google Scholar

[9] Z. Liu and H. Ren: Diffusion Phase Transformation of Supercooled Austenite. Science Press, China, (2008)

Google Scholar

[10] D. Huang and G. Thomas: Metallurgical Transactions. 2(1971), pp.1587-1598

Google Scholar
