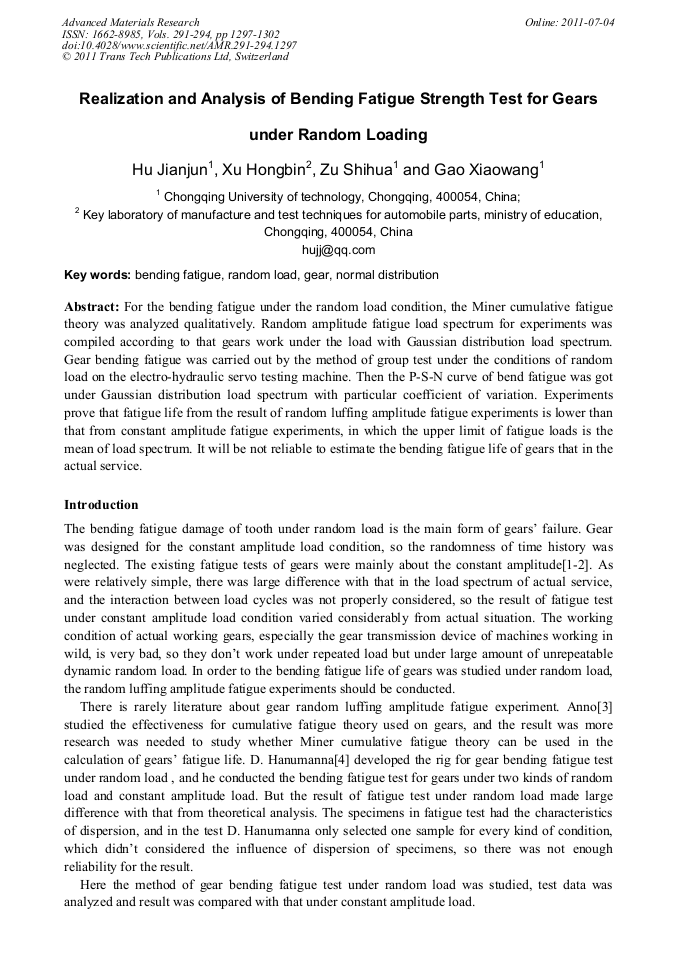

Realization and Analysis of Bending Fatigue Strength Test for Gears under Random Loading

Abstract:

For the bending fatigue under the random load condition, the Miner cumulative fatigue theory was analyzed qualitatively. Random amplitude fatigue load spectrum for experiments was compiled according to that gears work under the load with Gaussian distribution load spectrum. Gear bending fatigue was carried out by the method of group test under the conditions of random load on the electro-hydraulic servo testing machine. Then the P-S-N curve of bend fatigue was got under Gaussian distribution load spectrum with particular coefficient of variation. Experiments prove that fatigue life from the result of random luffing amplitude fatigue experiments is lower than that from constant amplitude fatigue experiments, in which the upper limit of fatigue loads is the mean of load spectrum. It will be not reliable to estimate the bending fatigue life of gears that in the actual service.

• Periodical: Advanced Materials Research (Volumes 291-294)
• Pages: 1297-1302
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.291-294.1297
• Online since: July 2011
• Authors: Jian Jun Hu, Hong Bin Xu, Shi Hua Zu, Xiao Wang Gao
• Keywords: Bending Fatigue, Gear, Normal Distribution, Random Load

References

[1] Nagamura, K., Terauchi, Y., Martowibowo, S. Y. and Rerayama, K.．Reliability estimation of bending fatigue strength of supercarburized steel gear．Jap. Soc. Mech. Engrs, March 1992, vol35(1), p.142~151

DOI: 10.1299/jsmec1988.35.142

[2] Inoue, K., Kitamura Ken'Ichi, Yamanaka, K., Masuyama T. and Asano Jun'Ichi．Bending fatigue strength of carburized clean steel gear．Jap. Soc. Mech. Engrs, 2002, vol68(669), p.1615~1620

[3] Anno, Y., Hayashi, K. and Harda, H. Bending fatigue strength of spur of gear teeth under random loading loading. Bull. Jap. Soc. Mech. Engrs, September 1974,vol17(111), p.1192

DOI: 10.1299/jsme1958.17.1192

[4] Hanumanna, D., Narayanan, S. and Krishnamurthy, S. Bending fatigue testing of gear teeth under random loading. Journal of Mechanical Engineering Science, July 2001, vol215(7), p.773~784(12)

DOI: 10.1243/0954406011524135

[5] Weixing.Yao. Fatigue life analysis of structure. Beijin: National Defence Industry Press, 2003.3-4.In Chinese

[6] Chunhua.Zeng. Methods and Applications of Fatigue Analysis. Beijin: National Defence Industry Press , 1991.50-75.In Chinese

[7] GB/T 14230-93, Test method for bending load capacity of gears [S].In Chinese

[8] Jingchuan.Xue,Wenbin.Liu. Compilation method of load spectrum for fatigue test under the condition of the combination of load state simulation and damage equivalent. Study on structural strength [J], 2001, 2:6~14. In Chinese
