Experimental Research of Characteristics of Fluid-Induced Force in Eccentric Seal

Abstract:

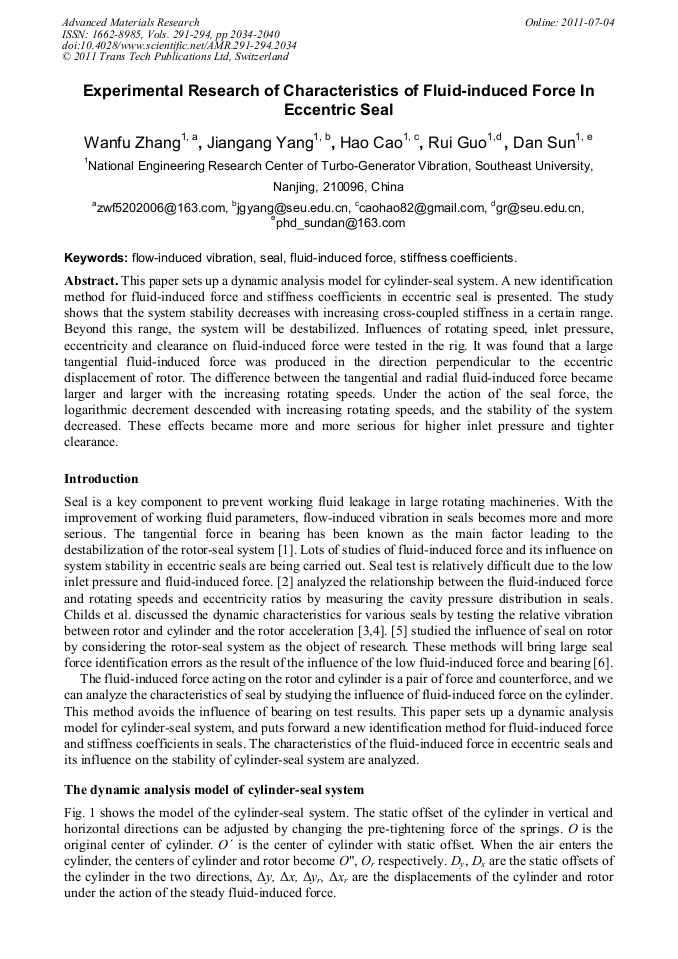

Article Preview

This paper sets up a dynamic analysis model for cylinder-seal system. A new identification method for fluid-induced force and stiffness coefficients in eccentric seal is presented. The study shows that the system stability decreases with increasing cross-coupled stiffness in a certain range. Beyond this range, the system will be destabilized. Influences of rotating speed, inlet pressure, eccentricity and clearance on fluid-induced force were tested in the rig. It was found that a large tangential fluid-induced force was produced in the direction perpendicular to the eccentric displacement of rotor. The difference between the tangential and radial fluid-induced force became larger and larger with the increasing rotating speeds. Under the action of the seal force, the logarithmic decrement descended with increasing rotating speeds, and the stability of the system decreased. These effects became more and more serious for higher inlet pressure and tighter clearance.

Info:

Periodical:

Advanced Materials Research (Volumes 291-294)

Edited by:

Yungang Li, Pengcheng Wang, Liqun Ai, Xiaoming Sang and Jinglong Bu

Pages:

2034-2040

DOI:

10.4028/www.scientific.net/AMR.291-294.2034

Citation:

W. F. Zhang et al., "Experimental Research of Characteristics of Fluid-Induced Force in Eccentric Seal", Advanced Materials Research, Vols. 291-294, pp. 2034-2040, 2011

Online since:

July 2011

Export:

Price:

$38.00

[1] R. Tiwari, A. W Lees, M. I Friswell, Identification of Dynamic Bearing Parameters: A Review, The Shock and Vibration Digest. Vol. 36 (2004), pp.99-124.

DOI: 10.1177/0583102404040173

[2] C. Rajakumar, F. Sisto, Experimental Investigations of Rotor Whirl Excition Forces Induced by Labyrinth Seal Flow, Journal of Vibration and Acoustics. Vol. 112 (1990), pp.515-522.

DOI: 10.1115/1.2930137

[3] C. R Alexander, D. W Childs, Z. Yang, Theory Versus Experiment for the Rotordynamic Characteristics of a Smooth Annular Gas Seal at Eccentric Positions, Journal of Tribology. Vol. 117 (1995), pp.148-152.

DOI: 10.1115/1.2830591

[4] M. Weatherwax, D. W Childs, Theory Versus Experiment for the Rotordynamic Characteristics of a High Pressure Honeycomb Annular Gas Seal at Eccentric Positions, Journal of Tribology. Vol. 125(2003), pp.422-429.

DOI: 10.1115/1.1504093

[5] M. Cheng, G. Meng, J. P Jing, Numerical and experimental study of a rotor–bearing–seal system, J. Mechanism and Machine Theory, Vol. 42(2007), pp.1043-1057.

DOI: 10.1016/j.mechmachtheory.2006.04.010

[6] R. Tiwari, S. Manikandan, S. K Dwivedy, A Review of the Experimental Estimation of the Rotor Dynamic Parameters of Seals, The Shock and Vibration Digest, Vol. 37(2005), p.261–284.

DOI: 10.1177/0583102405055442
