The Improvement of 13MnNiMoNbR Weld Strength and Low Temperature Toughness

Abstract:

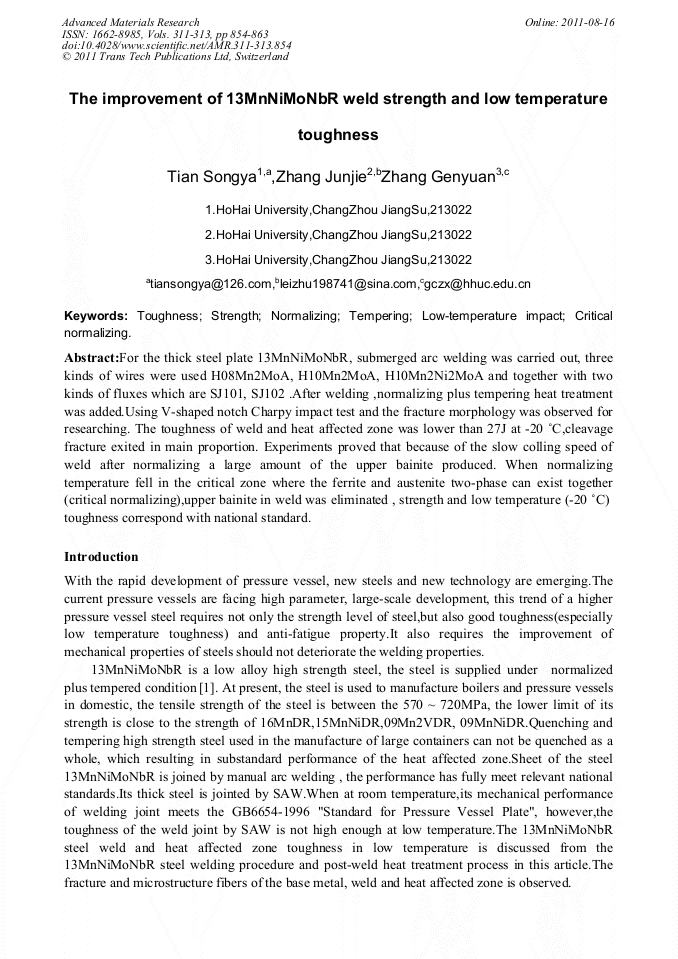

For the thick steel plate 13MnNiMoNbR, submerged arc welding was carried out, three kinds of wires were used H08Mn2MoA, H10Mn2MoA, H10Mn2Ni2MoA and together with two kinds of fluxes which are SJ101, SJ102 .After welding ,normalizing plus tempering heat treatment was added.Using V-shaped notch Charpy impact test and the fracture morphology was observed for researching. The toughness of weld and heat affected zone was lower than 27J at -20 °C,cleavage fracture exited in main proportion. Experiments proved that because of the slow colling speed of weld after normalizing a large amount of the upper bainite produced. When normalizing temperature fell in the critical zone where the ferrite and austenite two-phase can exist together (critical normalizing),upper bainite in weld was eliminated , strength and low temperature (-20 °C) toughness correspond with national standard.

• Periodical: Advanced Materials Research (Volumes 311-313)
• Pages: 854-863
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.311-313.854
• Online since: August 2011
• Authors: Song Ya Tian, Jun Jie Zhang, Gen Yuan Zhang
• Keywords: Critical Normalizing, Low-Temperature Impact, Normalizing, Strength, Tempering, Toughness

References

[1] Q.H.Su,S.G. Han.The welding process of 13MnNiMoNbR steel(In Chinese).Petroleum engineering construction 2007，04，Vol.33.No.2.

[2] D.G.Yu,Y.X. Tan.The microstructure strength subject of steel(In Chinese).Shanghai Scientific and Technical Publishers 1979:342-346.

[3] Mechanical and electronic industry Harbin welding institute.Domestic low alloy steel welding CCT figure(In Chinese). Machinery industry press,1990:30-31.

[4] A.Kumar S.G. Roberts A.J. Wilkinson.Low-temperature fracture mechanisms in a spheroidised reactor pressure vessel steel.Springer.Int J Fract(2007)144:121-129.

DOI: 10.1007/s10704-007-9084-3
