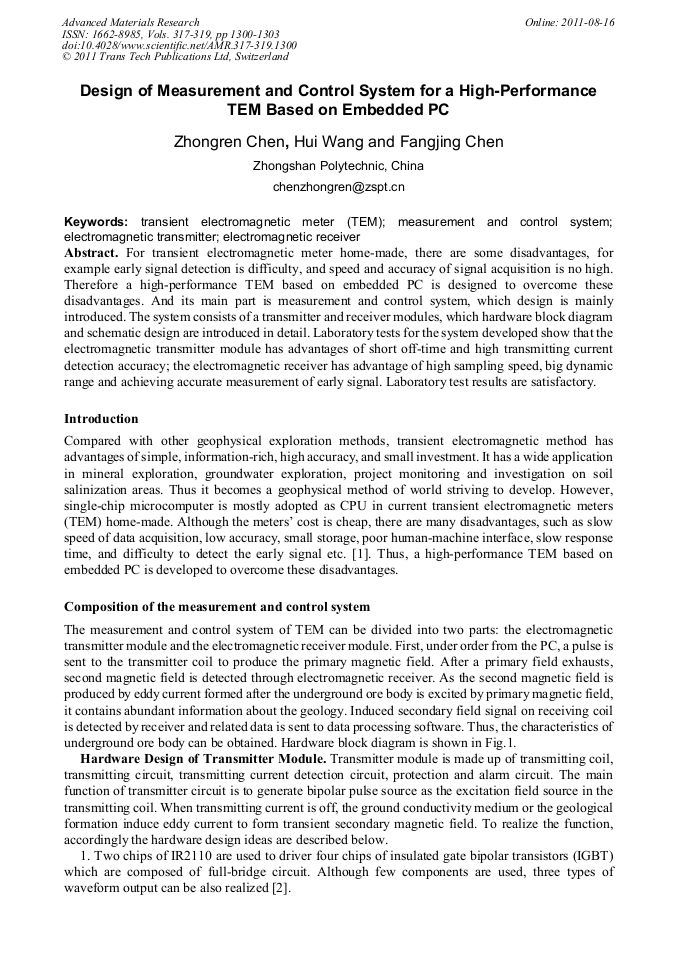

Design of Measurement and Control System for a High-Performance TEM Based on Embedded PC

Abstract:

For transient electromagnetic meter home-made, there are some disadvantages, for example early signal detection is difficulty, and speed and accuracy of signal acquisition is no high. Therefore a high-performance TEM based on embedded PC is designed to overcome these disadvantages. And its main part is measurement and control system, which design is mainly introduced. The system consists of a transmitter and receiver modules, which hardware block diagram and schematic design are introduced in detail. Laboratory tests for the system developed show that the electromagnetic transmitter module has advantages of short off-time and high transmitting current detection accuracy; the electromagnetic receiver has advantage of high sampling speed, big dynamic range and achieving accurate measurement of early signal. Laboratory test results are satisfactory.

• Periodical: Advanced Materials Research (Volumes 317-319)
• Pages: 1300-1303
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.317-319.1300
• Online since: August 2011
• Authors: Zhong Ren Chen, Hui Wang, Fang Jing Chen
• Keywords: Electromagnetic Receiver, Electromagnetic Transmitter, Measurement and Control System, TEM

References

[1] Shi Li, Jianping Song and Chuangshe Li:Academic Journal of Xi'an Jiaotong University Vol.35(2001),p.373.

[2] Ruiqing Ma and Weiguo Liu: Power Electronics Vol. 34(2000), p.31

[3] Bingren Zhang, Jun Lin and Yanju Ji: Instrument Techniques and Sensor Vol.12 (2002), p.29

[4] Ruijie Qin: Aviation Metrology Measurement Tech. Vol.17 (1997), p.27

[5] Jian Wang and Hong Zhang: Application Research of Comp. Vol. 16(1999), p.105
