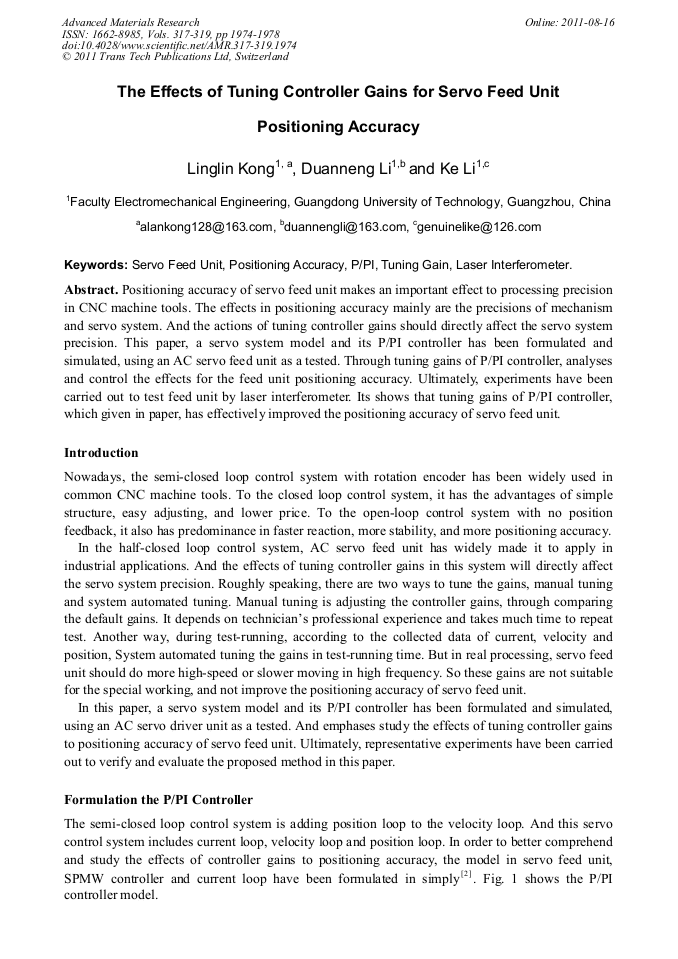

The Effects of Tuning Controller Gains for Servo Feed Unit Positioning Accuracy

Abstract:

Positioning accuracy of servo feed unit makes an important effect to processing precision in CNC machine tools. The effects in positioning accuracy mainly are the precisions of mechanism and servo system. And the actions of tuning controller gains should directly affect the servo system precision. This paper, a servo system model and its P/PI controller has been formulated and simulated, using an AC servo feed unit as a tested. Through tuning gains of P/PI controller, analyses and control the effects for the feed unit positioning accuracy. Ultimately, experiments have been carried out to test feed unit by laser interferometer. Its shows that tuning gains of P/PI controller, which given in paper, has effectively improved the positioning accuracy of servo feed unit.

• Periodical: Advanced Materials Research (Volumes 317-319)
• Pages: 1974-1978
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.317-319.1974
• Online since: August 2011
• Authors: Ling Lin Kong, Duan Neng Li, Ke Li
• Keywords: Laser Interferometer, P/PI, Positioning Accuracy, Servo Feed Unit, Tuning Gain

References

[1] Ping. Qian: The Servo System (The Machinery Industry Press,2005).In Chinese

[2] Boshi Chen: The Electric Drive Control System, edtied by The Machinery Industry Press, Beijing(2003),in press. In Chinese

[3] Baojun. Hu: The Servo Controller Gain tuning technique. the master thesis of Beijing University of Technology(2007),p.10. In Chinese

[4] Ting. Lu: Mechanical Design and Manufacturing (2007), pp.141-143. In Chinese

[5] Constantin ISPAS, Dorel ANANIA, Constantin DOGARIU, Dragos TILINA : The International Conference of The Carpathian EURO-REGION Specialists in Industrial Systems edition(2006).
