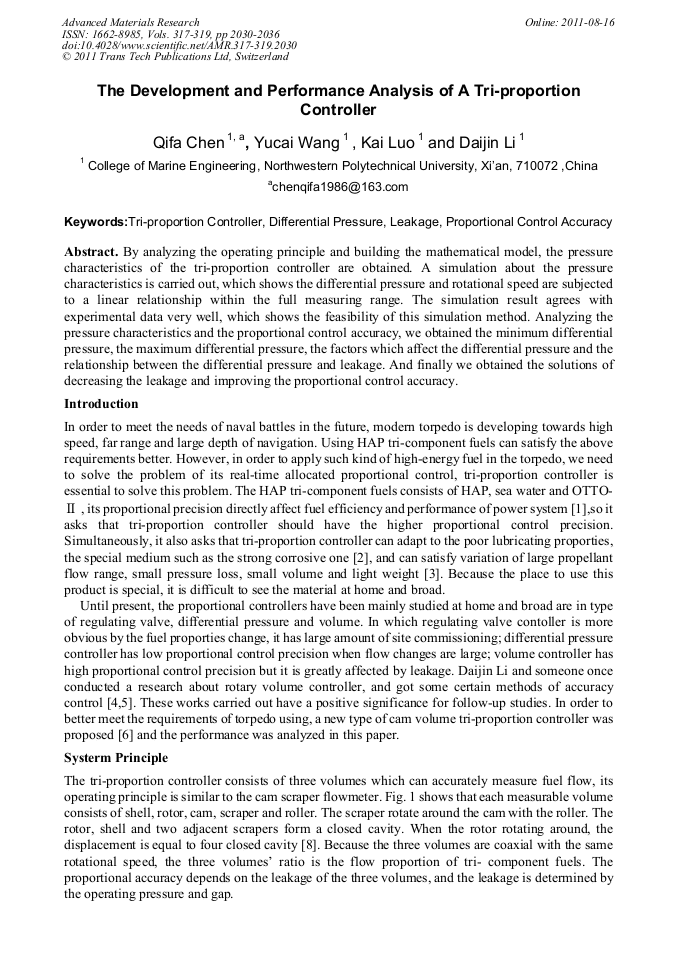

The Development and Performance Analysis of a Tri-Proportion Controller

Abstract:

By analyzing the operating principle and building the mathematical model, the pressure characteristics of the tri-proportion controller are obtained. A simulation about the pressure characteristics is carried out, which shows the differential pressure and rotational speed are subjected to a linear relationship within the full measuring range. The simulation result agrees with experimental data very well, which shows the feasibility of this simulation method. Analyzing the pressure characteristics and the proportional control accuracy, we obtained the minimum differential pressure, the maximum differential pressure, the factors which affect the differential pressure and the relationship between the differential pressure and leakage. And finally we obtained the solutions of decreasing the leakage and improving the proportional control accuracy.

• Periodical: Advanced Materials Research (Volumes 317-319)
• Pages: 2030-2036
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.317-319.2030
• Online since: August 2011
• Authors: Qi Fa Chen, Yu Cai Wang, Kai Luo, Dai Jin Li
• Keywords: Differential Pressure, Leakage, Proportional Control Accuracy, Tri-Proportion Controller

References

[1] Bellerby J M, Blackman C S: Propellants Explosives Pyrotechnics.Vol. 29 (2004), p.262

[2] Kalavalapally R, et al: Finite Elements in Analysis and Design. Vol. 43 (2006), p.103

[3] HITLS R C: HAP/OTTO Fuel Application to Torpedo Engines. AIAA-82-1280.

[4] Jianjun Dang, Kai Luo, Yuwen Zhang: Journal of Northwestern Polytechnical University, Vol.23 (2005), p.212 (in chinese)

[5] Zhiwu Cha, Xiaofeng Shi, Zhibo Qian: Technical of Torpedo Thermal Power (National Defense Industry Press, Beijing 2006) (in chinese)

[6] Daijin Li, Yuwen Zhang, Hao Tang, et al: Journal of Hydrodinamics. Vol. 24 (2009), p.113 (in chinese)

[7] Qifa Chen, Kai Luo, Yucai Wang, et al: Machine Tool & Hydraulics.Vol. 39 (2011), p.71 (in chinese)

[8] Yinghua Xu, Youtao Yang. Flow and Analytical Instruments (China Metrology Publishing House, Beijing 2008) (in chinese)

[9] Yongquan Gu. Moving Seal of Fluid (China Petrochemical Press, Beijing 1992) (in chinese)

[10] Yeying Zhang. Hydromechanics (Higher Education Press, Beijing 1986) (in chinese)

[11] Hongbing Yuan, Hong Zhang, Zisheng Lian, et al: Journal of China Coal Society. Vol 33 (2008), p.694 (in chinese)
