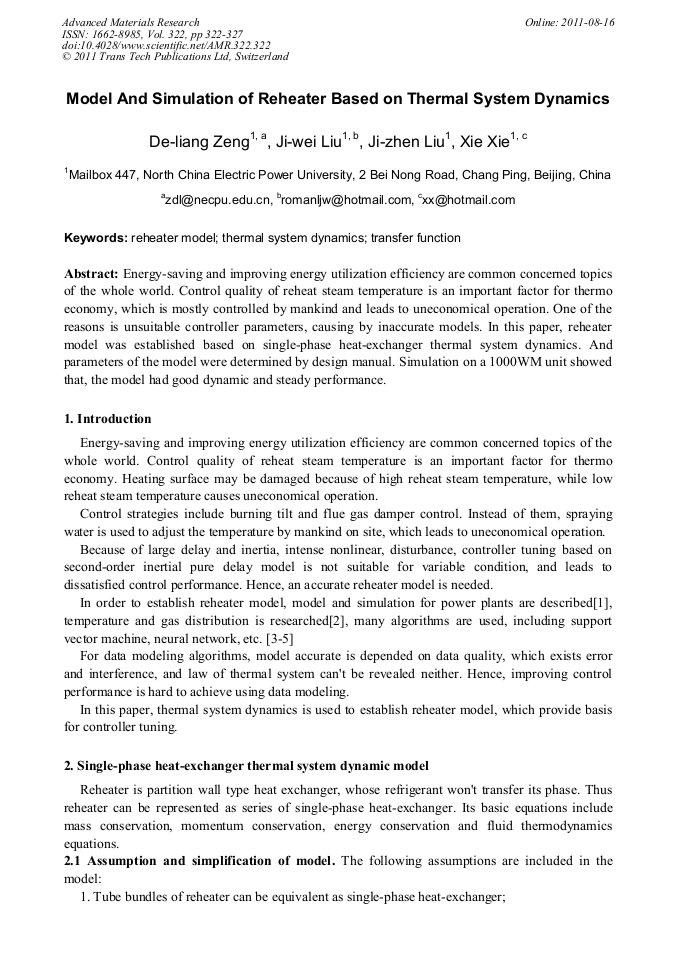

Model and Simulation of Reheater Based on Thermal System Dynamics

Abstract:

Energy-saving and improving energy utilization efficiency are common concerned topics of the whole world. Control quality of reheat steam temperature is an important factor for thermo economy, which is mostly controlled by mankind and leads to uneconomical operation. One of the reasons is unsuitable controller parameters, causing by inaccurate models. In this paper, reheater model was established based on single-phase heat-exchanger thermal system dynamics. And parameters of the model were determined by design manual. Simulation on a 1000WM unit showed that, the model had good dynamic and steady performance.

• Periodical: Advanced Materials Research (Volume 322)
• Pages: 322-327
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.322.322
• Online since: August 2011
• Authors: De Liang Zeng, Ji Wei Liu, Ji Zhen Liu, Xie Xie
• Keywords: Reheater Model, Thermal System Dynamics, Transfer Function

References

[1] Lv Zhongde, Ren Tingjin, Rong Xuezhi. Model and Simulation for Large Capacity Thermal Power Units. Beijing : Tsinghua University Press, (2002).

[2] YUAN Yi-chao, LIU Yu-zheng, CHEN Zhi-hang. Theoretical analysis and experimental research on temperature distribution of flue gas and steam in large capacity utility boilers[J], Proceedings of the Csee, 2002, 22(12): 56-61.

[3] HUANG Jing-tao, MA Long-hua, MAO Jian-bo, QIAN Ji-xin. Modeling research of the reheat steam temperature of 300 mw boiler based on support vector regression[J], Proceedings of the Csee, 2006, 26(7): 19-24.

[4] ZHANG Yun-hui, LV Zhen-zhong, ZHAO Yu-hong. Modeling and simulation of reheated vapour temperature based on neural network predicting model[J]. Proceedings of the Electric Power System and Automation, 2006, 18(1): 30-33.

[5] Zhang Yunhui, Lv Zhenzhng, Zhao Yuhong. The Model of Neural Network Based on Chaos Theory for Reheated Steam Temperature[J]. Process Automation Instrumentation, 2006, 27(2): 6-10.

[6] Wang Guangjun, Xin Guohua. Thermal system dynamics and application [M]. Beijing: Science Press, (1997).

[7] Zhang Chenyue. Mathematical model and dynamic characteristics of the boiler[M]. China WaterPower Press, (1997).

[8] The International Association for the Properties of Water and Steam[M]. (1997).

[9] Shanghai Industrial Boiler CO., LTD. Thermal Calculation Summary[Z] . (2010).

[10] Shanghai Waigaoqiao 2nd power generation CO., LTD. Boiler control operation regulation[Z]. (2006).

[11] Standard method of boiler Thermodynamic Calculation[S]. China Machine Press, (1976).

[12] REN Ting-jin, XIE Mao-qing, LI Zhi-gang, ZHANG Ping. A new method of chain structure medeling on boiler's single-phase heat-exchanger[J]. Proceedings of the Csee, 2003, 23(3), 175-178.
