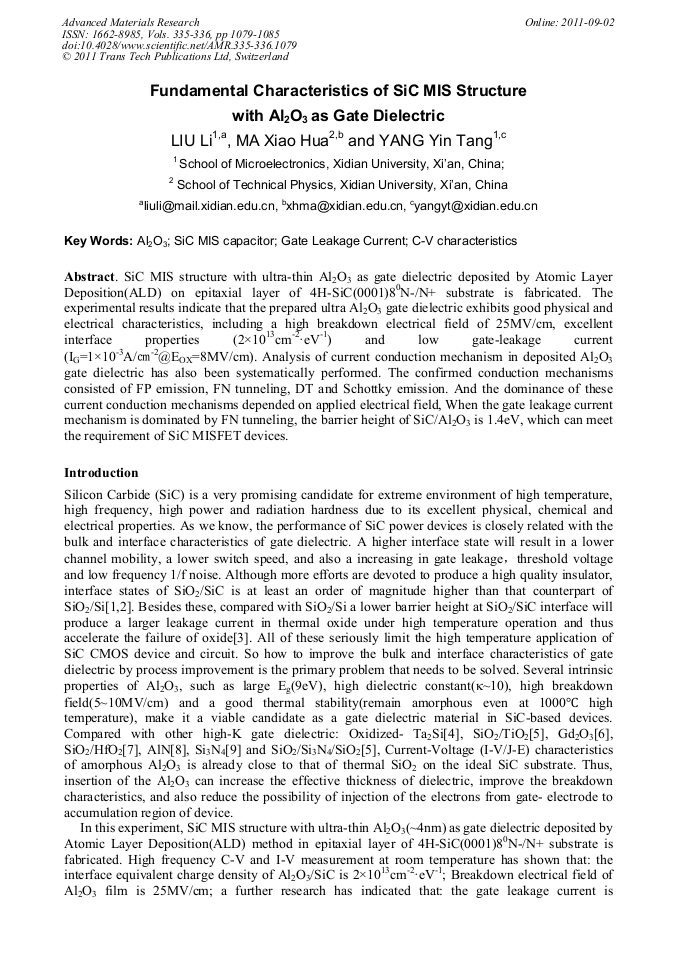

Fundamental Characteristics of SiC MIS Structure with Al₂O₃ as Gate Dielectric

Abstract:

SiC MIS structure with ultra-thin Al₂O₃ as gate dielectric deposited by Atomic Layer Deposition(ALD) on epitaxial layer of 4H-SiC(0001)8⁰N-/N+ substrate is fabricated. The experimental results indicate that the prepared ultra Al₂O₃ gate dielectric exhibits good physical and electrical characteristics, including a high breakdown electrical field of 25MV/cm, excellent interface properties(2×10¹³cm^-2•eV^-1) and low gate-leakage current (I_G=1×10^-3A/㎝-²@EOX=8MV/cm). Analysis of current conduction mechanism in deposited Al₂O₃ gate dielectric has also been systematically performed. The confirmed conduction mechanisms consisted of FP emission, FN tunneling, DT and Schottky emission. And the dominance of these current conduction mechanisms depended on applied electrical field, When the gate leakage current mechanism is dominated by FN tunneling, the barrier height of SiC/Al₂O₃ is 1.4eV, which can meet the requirement of SiC MISFET devices.

• Periodical: Advanced Materials Research (Volumes 335-336)
• Pages: 1079-1085
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.335-336.1079
• Online since: September 2011
• Authors: Li Liu, Xiao Hua Ma, Yin Tang Yang
• Keywords: Al₂O₃, C-V Characteristics, Gate Leakage Current, Sic Mis Capacitor

References

[1] Deák P, Knaup J M, Hornos T, Christoph Thill, Adam Gali and Thomas Frauenheim: J Phys D: Appl. Phys. Vol. 40 (2007), p.6242

DOI: 10.1088/0022-3727/40/20/s09

[2] Dang Hongli and Gudipati: J.Comput.Theor.Nanosci. Vol. 6 (2009), p.1305

[3] R. Puthenkovilakam and J. P. Chang: J. Appl. Phys. Vol. 96 (2004), p.2701

[4] A.Perez-Tomas, P.Godignon and J.Montserrat: Applied Surface Science. Vol. 253 (2006), p.1741

[5] R.Mahapatra, A.K. Chakraborty and N.Poollamai: J. Vac. Sci. Technol.B. Vol. 25 (2007), p.217

[6] A.Fissel, M.Czernohorsky and H.J. Osten: J. Vac. Sci. Technol.B. Vol. 24 (2006), p.2115

[7] V.V. Afanas'ev, A.Stesmans and F.Chen: Appl. Phys.Lett. Vol. 89 (2003), p.922

[8] M.Wolborski, D.Rosen and A.Hallen: Thin Solid Films. Vol. 515 (2006), p.456

[9] L.A. Lipkin and J.W. Palmour: IEEE Trans. On ED. Vol. 46 (1999), p.525

[10] Xu Min, Zhang Wei and Sun Qing-Qing: The 6th National Surface Engineering Academic Conference Vol. 8 (2006) p.474(In Chinese)

[11] S.M. Sze and Kwok K.NG: Physics of Semiconductor Devices(Wiley-Interscience(The 3th.Edition) 2006)

[12] W.D. Zhang, B.Govoreanu, X.F. Zheng and D.Ruiz Aguado: IEEE ED Lett. Vol.29 (2008), p.1043

[13] T.Ouisse, N.Bécourt and C.Jaussaud: J.Appl.Phys. Vol. 75 (1994), p.604

[14] Khairurrijal and W.Mizubayashi: Appl. Phys.Lett. Vol. 77 (2007), p.3580

[15] Leonard F. Register, Elyse Rosenbaum and Kevin Yang: Appl. Phys. Lett. Vol. 74 (1999), p.457

[16] Wu Yi, Master thesis of Xi Dian University (2010)(In Chinese)
