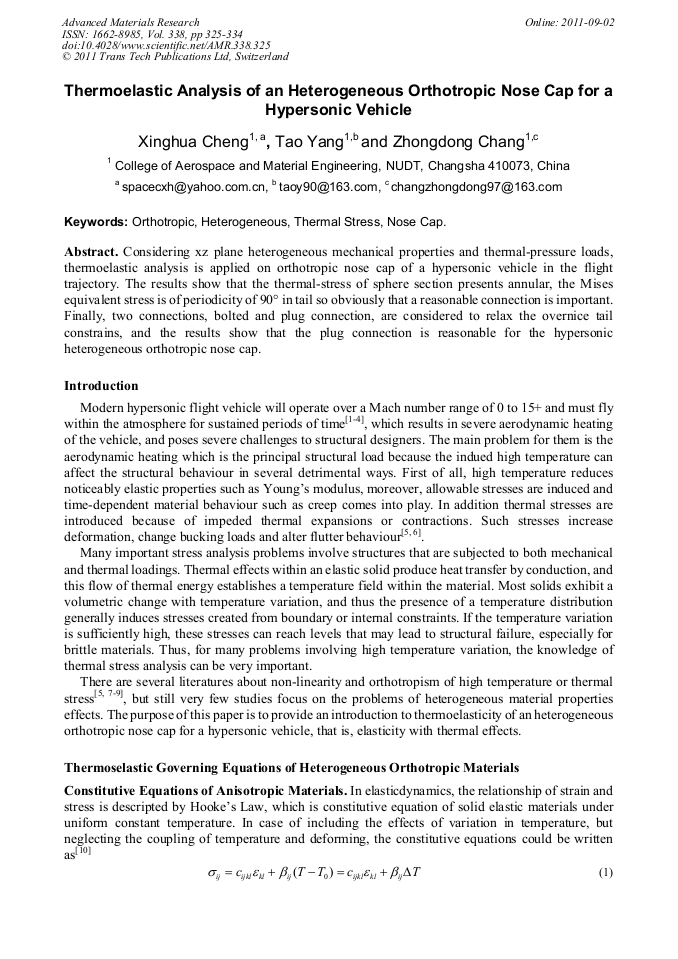

Thermoelastic Analysis of an Heterogeneous Orthotropic Nose Cap for a Hypersonic Vehicle

Abstract:

Considering xz plane heterogeneous mechanical properties and thermal-pressure loads, thermoelastic analysis is applied on orthotropic nose cap of a hypersonic vehicle in the flight trajectory. The results show that the thermal-stress of sphere section presents annular, the Mises equivalent stress is of periodicity of 90° in tail so obviously that a reasonable connection is important. Finally, two connections, bolted and plug connection, are considered to relax the overnice tail constrains, and the results show that the plug connection is reasonable for the hypersonic heterogeneous orthotropic nose cap

• Periodical: Advanced Materials Research (Volume 338)
• Pages: 325-334
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.338.325
• Online since: September 2011
• Authors: Xing Hua Cheng, Tao Yang, Zhong Dong Chang
• Keywords: Heterogeneous, Nose Cap, Orthotropic, Thermal Stress

References

[1] Mansour N., Pittman J., Olson L. Fundamental Aeronautics Hypersonics Project: Overview. AIAA Paper 2007-4263.

DOI: 10.2514/6.2007-4263

[2] Walker S.H., Rodgers F. Falcon Hypersonic Technology Overview. AIAA Paper 2005-3253.

[3] Cazier J., F. W., Ricketts R.H. Structural Dynamic and Aeroelastic Considerations for Hypersonic Vehicles. AIAA Paper 1991-1255.

DOI: 10.2514/6.1991-1255

[4] Ricketts R.H., Noll T.E., Whitlow Jr., W. An Overview of Aeroelasticity Studies for the National Aero-Space Plane. AIAA Paper 1993-1313.

DOI: 10.2514/6.1993-1313

[5] Rosario Borrellia, Aniello Riccio, Domenico Tescione. Thermo-structural behaviour of an UHTC made nose cap of a reentry vehicle. Acta Astronautica 65 (2009) 442-456.

DOI: 10.1016/j.actaastro.2009.02.016

[6] A.Thornton. Thermal structures: four decades of progress. Journal of Aircraft, 1992, 29 (3): 485-498.

DOI: 10.2514/3.46187

[7] Grant Palmer. A heating analysis of the nosecap and leading edges of the X-34 vehicle. AIAA 98-0878.

[8] Yin Lian-Hua, Liu Li, Zhang Shuai. Research of Numerical Simulation Method in Thermal Stress of Short Range High Speed Missile of Ablation Protection Material(in chinese). Journal of System Simulation, 2008, 20 (15): 3966-3968.

[9] Jiang Zhijie, Zhang Boyi, He Hao. Research on Analysis of Thermal Environment and Structure of Nose Tip for Hypersonic Vehicle(in chinese). Missle and Space Vehicle, 2009, (4): 14-17.

[10] Fan Xuqi. Thermal Structures Analysis and Applications of Highspeed Vehicles(in chinese). Beijing: 2009.
