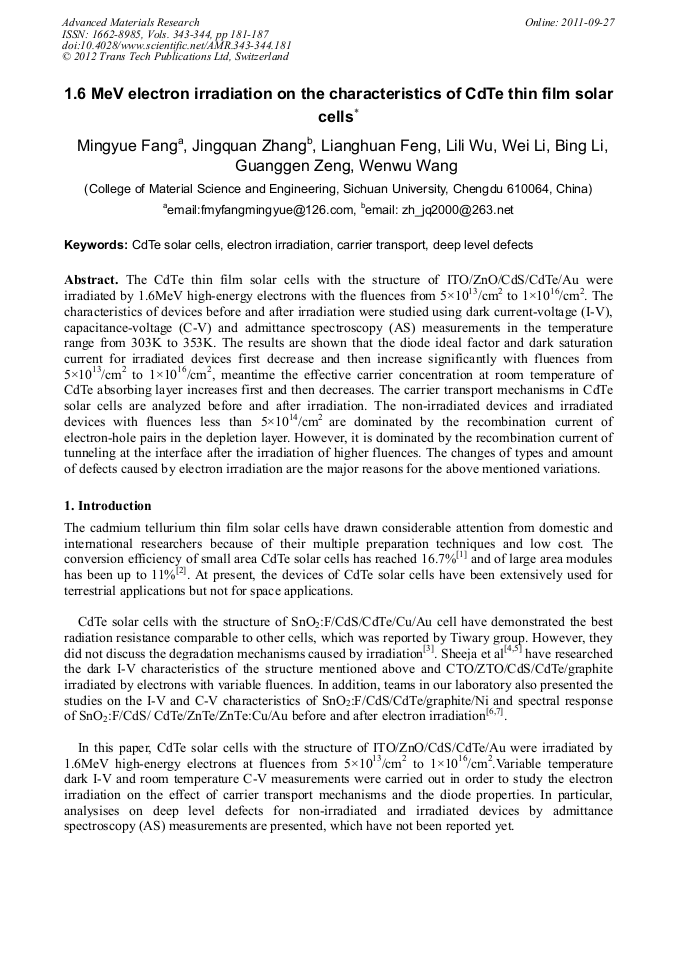

1.6 MeV Electron Irradiation on the Characteristics of CdTe Thin Film Solar Cells

Abstract:

The CdTe thin film solar cells with the structure of ITO/ZnO/CdS/CdTe/Au were irradiated by 1.6MeV high-energy electrons with the fluences from 5×10¹³/cm² to 1×10¹⁶/cm². The characteristics of devices before and after irradiation were studied using dark current-voltage (I-V), capacitance-voltage (C-V) and admittance spectroscopy (AS) measurements in the temperature range from 303K to 353K. The results are shown that the diode ideal factor and dark saturation current for irradiated devices first decrease and then increase significantly with fluences from 5×10¹³/cm² to 1×10¹⁶/cm², meantime the effective carrier concentration at room temperature of CdTe absorbing layer increases first and then decreases. The carrier transport mechanisms in CdTe solar cells are analyzed before and after irradiation. The non-irradiated devices and irradiated devices with fluences less than 5×10¹⁴/cm² are dominated by the recombination current of electron-hole pairs in the depletion layer. However, it is dominated by the recombination current of tunneling at the interface after the irradiation of higher fluences. The changes of types and amount of defects caused by electron irradiation are the major reasons for the above mentioned variations.

• Periodical: Advanced Materials Research (Volumes 343-344)
• Pages: 181-187
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.343-344.181
• Online since: September 2011
• Authors: Ming Yue Fang, Jing Quan Zhang, Liang Huan Feng, Li Li Wu, Wei Li, Bing Li, Guang Gen Zeng, Wen Wu Wang
• Keywords: Carrier Transport, CdTe Solar Cells, Deep Level Defects, Electron Irradiation

References

[1] X. Wu, J.C. Keane and R.G. Dhere. in: Proceedings of the 17th European photovoltaic solar energy conference (Munich: WIP). (2001), p.995.

[2] D. Cunningham, K. Davies and L. Grammond. in: Proceedings of 28th IEEE photovoltaic specialist conference. (2000), p.13.

[3] D.L. Batzner, A. Romeo and M. Terheggen: Thin Solid Films. Vol. 451 (2004), p.536.

[4] S. Krishnan, G. Sanjeev and M. Pattabi: Semi. Sci. and Tech. Vol. 22 (2007), p.1307.

[5] S. Krishnan, G. Sanjeev and M. Pattabi: Solar Energy Materials & Solar Cells. Vol. 93(2009), p.2.

[6] J.Q. Zhang, L.H. Feng and Y.P. Cai. in: Proceedings of the 10th Chinese photovoltaic solar energy conference. (2008), p.501.

[7] G.P. Xia, H.G. Zheng and L.H. Feng: Journal of Sichuan University. Vol. 1(2004), p.118.

[8] L. Kerkache, A. Layadi and A. Mosser: Jouranal of Alloys and Compounds. Vol. 485(2009), p.46.

[9] T.K. Subramanyam: Chinese Journal of Physics. Vol. 2(2002), p.196.

[10] W. Li, L.H. Feng and Y.P. Cai: Mater. Res. Symp. Proc. Vol. 744(2003), p.487.

[11] L.H. Feng, J.Q. Zhang and B. Li: Thin Solid Films. Vol. 491(2005), p.104.

[12] H. Bayhan and A.S. Kavasoglu: Solid-State Electronics. Vol. 49(2005), p.991.

[13] M. Saad and A. Kassis: Renewable Energy. Vol. 33(2008), p.974.

[14] A. Rao, S. Krishnan and G. Sanjeev: Energy Material & Solar Cells. Vol. 93(2009), p.1618.

[15] X.L. He, J.Q. Zhang and L.H. Feng: China Tech. Sci. Vol. 53(2010), p.2337.

[16] A. Castaldini, A. Cavallini and B. Fraboni: Journal of Applied Physics. Vol. 83(1998), p.2121.

[17] B. Li, C. Liu and L.H. Feng: Physics Journal. Vol. 58(2009), p. (1987).

[18] F. H. Seymour, V. Kaydanov and T. R. Ohno: Applied Physics Letters. (2005), p.87.

[19] Y.Y. Proskuryakov, K. Durose and B.M. Taele: Journal of Applied Physics. (2007), p.101.

[20] E.K. Liu: Semiconductor Physics (Electronic Industry Press, Beijing 2009).

[21] X. Zheng, B. Li and Z. Wang: Physics Journal. Vol. 59(2010), p.2783.
