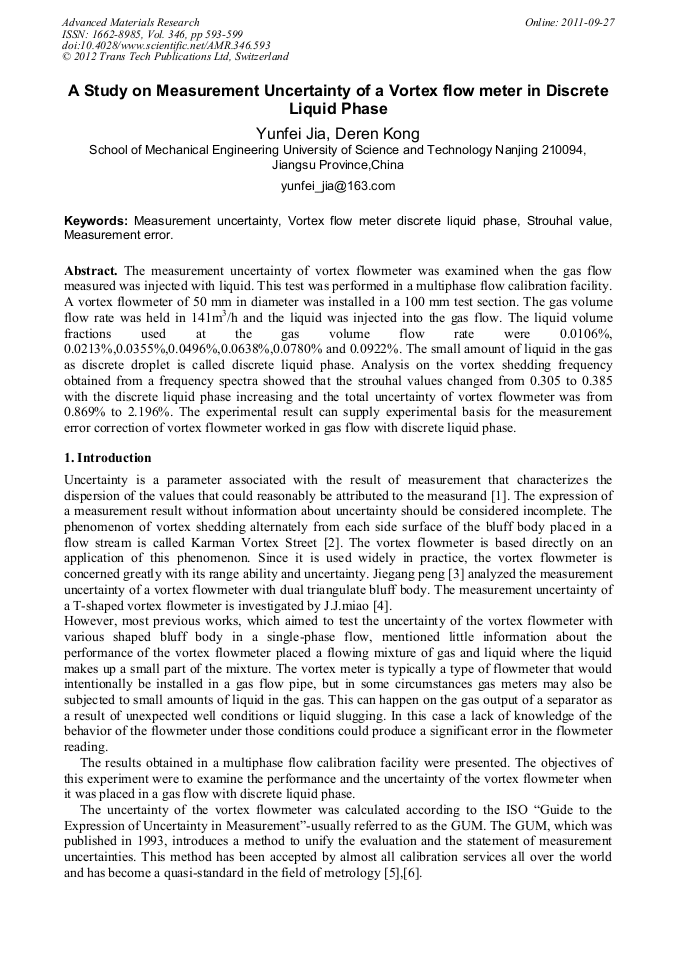

A Study on Measurement Uncertainty of a Vortex Flow Meter in Discrete Liquid Phase

Abstract:

The measurement uncertainty of vortex flowmeter was examined when the gas flow measured was injected with liquid. This test was performed in a multiphase flow calibration facility. A vortex flowmeter of 50 mm in diameter was installed in a 100 mm test section. The gas volume flow rate was held in 141m³/h and the liquid was injected into the gas flow. The liquid volume fractions used at the gas volume flow rate were 0.0106%, 0.0213%,0.0355%,0.0496%,0.0638%,0.0780% and 0.0922%. The small amount of liquid in the gas as discrete droplet is called discrete liquid phase. Analysis on the vortex shedding frequency obtained from a frequency spectra showed that the strouhal values changed from 0.305 to 0.385 with the discrete liquid phase increasing and the total uncertainty of vortex flowmeter was from 0.869% to 2.196%. The experimental result can supply experimental basis for the measurement error correction of vortex flowmeter worked in gas flow with discrete liquid phase.

• Periodical: Advanced Materials Research (Volume 346)
• Pages: 593-599
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.346.593
• Online since: September 2011
• Authors: Yun Fei Jia, De Ren Kong
• Keywords: Measurement Error, Measurement Uncertainty, Strouhal Value, Vortex Flow Meter Discrete Liquid Phase

References

[1] ISO Guide to the Expression of Uncertainty in Measurement, (1993).

[2] PANKANIN G L. The vortex flowmeter: various methods of investigating phenomena[J]. Meas. Sci. Technol, 2005, 16：R1-R16.

DOI: 10.1088/0957-0233/16/3/r01

[3] Peng J G, FU X, Chen Y. Flow measurement by a new type vortex 1flowmeter of dual triangulate bluff body[J]. Sensors and Actuators, 2004(115): 53-59.

DOI: 10.1016/j.sna.2004.03.020

[4] Miao J J, Yeh C F, Hu C C, et al. On measurement uncertainty of a vortex flowmeter[J]. Flow Measurement and Instrumentation, 2005(16): 397-404.

DOI: 10.1016/j.flowmeasinst.2005.04.005

[5] Wolfgang K, Measurement uncertainty according to ISO/BIPM-GUM[J], Thermochimica Acta 382(2002), 1-16.

DOI: 10.1016/s0040-6031(01)00729-8

[6] Ernesto A, Franco C, et al. On the application of the Guide to the Expression of Uncertainty in Measurement to measuring instruments[J]. Measurement, 1995, 16: 51-57.
