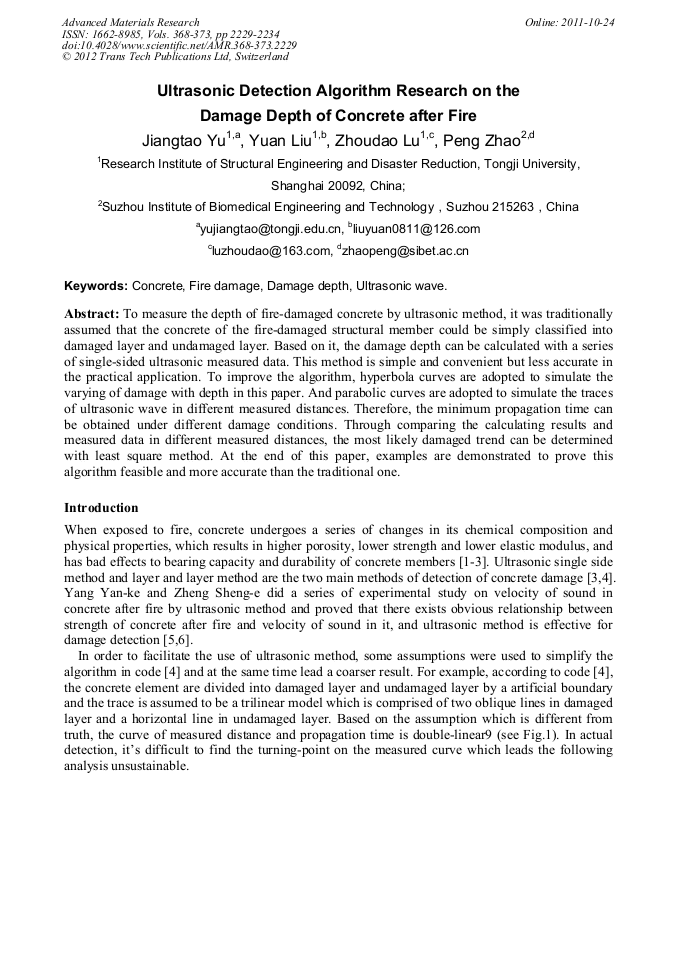

Ultrasonic Detection Algorithm Research on the Damage Depth of Concrete after Fire

Abstract:

To measure the depth of fire-damaged concrete by ultrasonic method, it was traditionally assumed that the concrete of the fire-damaged structural member could be simply classified into damaged layer and undamaged layer. Based on it, the damage depth can be calculated with a series of single-sided ultrasonic measured data. This method is simple and convenient but less accurate in the practical application. To improve the algorithm, hyperbola curves are adopted to simulate the varying of damage with depth in this paper. And parabolic curves are adopted to simulate the traces of ultrasonic wave in different measured distances. Therefore, the minimum propagation time can be obtained under different damage conditions. Through comparing the calculating results and measured data in different measured distances, the most likely damaged trend can be determined with least square method. At the end of this paper, examples are demonstrated to prove this algorithm feasible and more accurate than the traditional one.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 2229-2234
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.2229
• Online since: October 2011
• Authors: Jiang Tao Yu, Yuan Liu, Zhou Dao Lu, Peng Zhao
• Keywords: Concrete, Damage Depth, Fire Damage, Ultrasonic Wave (UW)

References

[1] Zhenhai Guo, Xudong Shi. Behaviour of reinforcement concrete at elevated temperature and its calculation[M].Beijing: Tsinghua University Press, (2003)

[2] Cancan Li. Experimental research of deterioration assessment for fire damaged concrete structures[D]. Shanghai: Tongji University, 2006.

[3] Jiangtao Yu. Experimental and theoretical research on damage assessment of reinforced concrete member after fire [D]. Shanghai: Tongji University, 2007.

[4] Technical specification for inspection of concrete defects by ultrasonic method (CECS 21: 2000) [S]. Beijing: China Engineering Construction Standardization Association, (2000)

[5] Yanke Yang, Sheng'e Zhen. Evaluating temperature distribution of the section of fire damaged concrete elements by ultrasonic method[J].Journal of Southwest Jiaotong University, 1993,92(4) :78-83.

[6] Yanke Yang, Sheng'e Zhen. Fire damage inspection of concrete. [J].Building Science Research of Sichuan, 1991, (4):22-27

[7] Hongwei Ma, Jiatong Yang. Methods and advances of structural damage detection [J].Advances in Mechanics, 1999, 29(4):513-527.

[8] Bin Han, Tao Zhang. A study on the amplitude of elastic wave transmission in inhomogeneous media [J]. Journal of Beijing Institute of Technology (Natural Science Edition), 2006, 26(5):383-387
