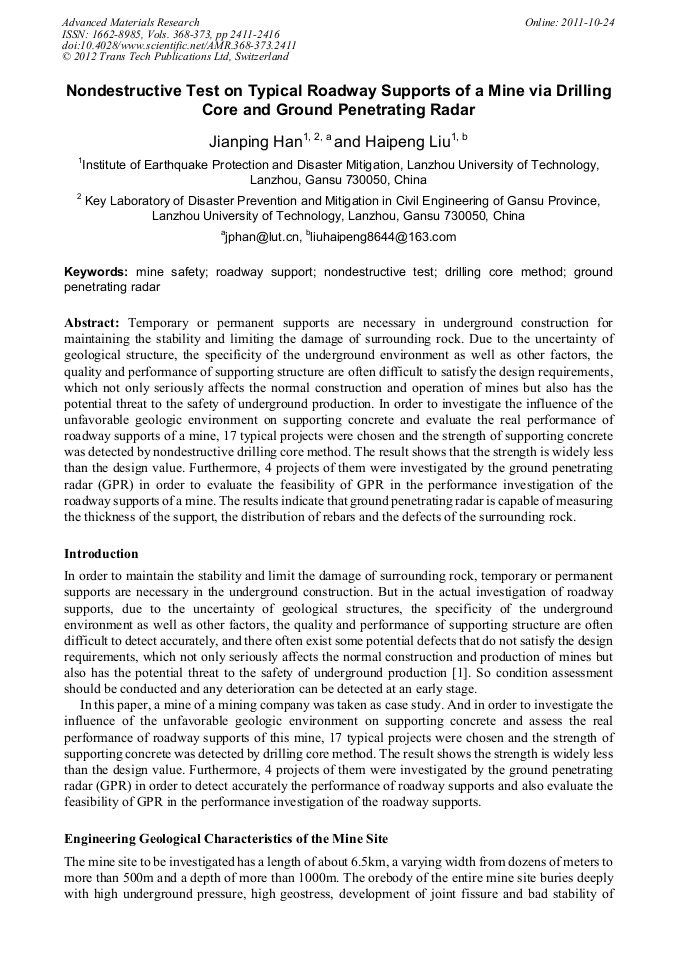

Nondestructive Test on Typical Roadway Supports of a Mine via Drilling Core and Ground Penetrating Radar

Abstract:

Temporary or permanent supports are necessary in underground construction for maintaining the stability and limiting the damage of surrounding rock. Due to the uncertainty of geological structure, the specificity of the underground environment as well as other factors, the quality and performance of supporting structure are often difficult to satisfy the design requirements, which not only seriously affects the normal construction and operation of mines but also has the potential threat to the safety of underground production. In order to investigate the influence of the unfavorable geologic environment on supporting concrete and evaluate the real performance of roadway supports of a mine, 17 typical projects were chosen and the strength of supporting concrete was detected by nondestructive drilling core method. The result shows that the strength is widely less than the design value. Furthermore, 4 projects of them were investigated by the ground penetrating radar (GPR) in order to evaluate the feasibility of GPR in the performance investigation of the roadway supports of a mine. The results indicate that ground penetrating radar is capable of measuring the thickness of the support, the distribution of rebars and the defects of the surrounding rock.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 2411-2416
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.2411
• Online since: October 2011
• Authors: Jian Ping Han, Hai Peng Liu
• Keywords: Drilling Core Method, Ground Penetrating Radar (GPR), Mine Safety, Non-Destructive Test, Roadway Support

References

[1] W. Ju: China Safety Science Journal Vol. 16, 2 (2006), pp.99-102

[2] W. Zhu, S. Li and S. Bai: Chinese Journal of Rock Mechanics and Engineering Vol. 22 (2003), pp.1586-1591

[3] X. Yang, H. Huang and B. Liu: Journal of Xiangtan Mining Institute Vol. 15,3 (2000), pp.12-16

[4] Z. Hou, W. Han and X. Li: Chinese Journal of Rock Mechanics and Engineering Vol. 23, 1 (2004), pp.64-68

[5] CECS03: 2007: Technical Specifications for detecting concrete strength by drilling core method (China Association for Engineering Construction Standardization, Beijing 2007)

[6] GB/T50081-2002: Standard for test method of mechanical properties on ordinary concrete (Ministry of Construction of the People's Republic of China, Beijing 2003)

[7] JTJ/T272-99: Technical specifications for Nondestructive Inspection of Concrete Structures in Port Engineering (Ministry of Transport of the People's Republic of China, Beijing 2000)

[8] GB50107-2010: Standard for Test and Evaluation of Concrete Compression Strength (Ministry of Housing and Urban-Rural Development of the People's Republic of China, Beijing 2010)

[9] Concrete Society: Guidance on radar testing of concrete structures (Concrete Society Technical Report 48, Slough 1997)

[10] D.H. Chen and A. Wimsatt: Journal of Geotechnical and Geoenvironmental Engineering Vol. 136 (2010), pp.207-214

[11] H. Jol: Ground penetrating radar: theory and applications (Elsevier Science, Amsterdam, The Netherlands 2009).

[12] X. Dong: Modern Tunnelling Technology Vol. 46, 3 (2009), pp.100-104

[13] M. Li and C. Li: Computing Techniques for Geophysical and Geochemical Exploration Vol. 30 (2008), pp.231-234
