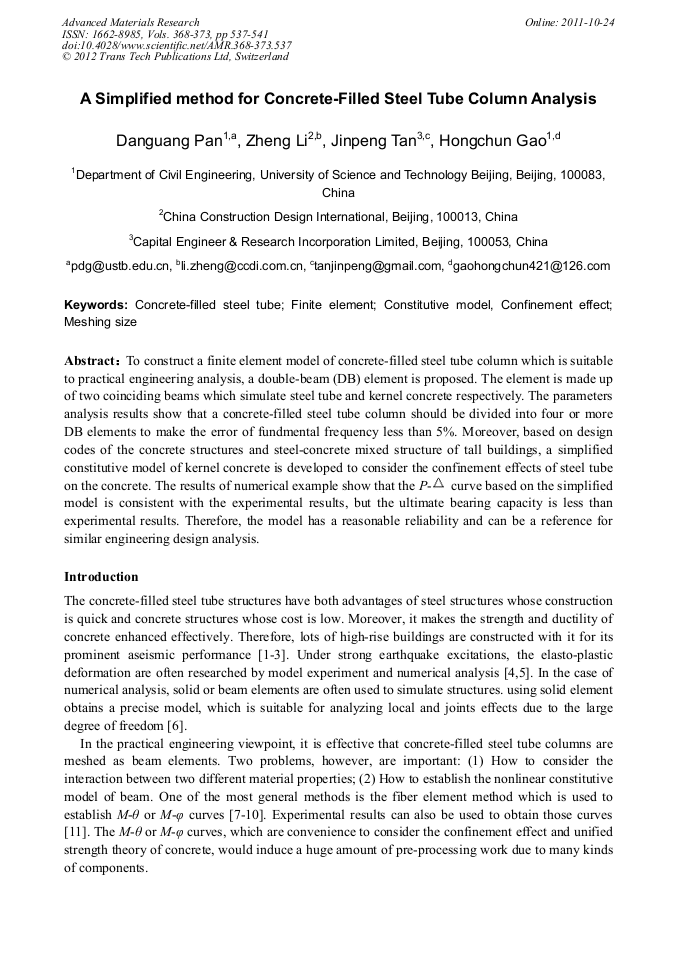

A Simplified Method for Concrete-Filled Steel Tube Column Analysis

Abstract:

To construct a finite element model of concrete-filled steel tube column which is suitable to practical engineering analysis, a double-beam (DB) element is proposed. The element is made up of two coinciding beams which simulate steel tube and kernel concrete respectively. The parameters analysis results show that a concrete-filled steel tube column should be divided into four or more DB elements to make the error of fundmental frequency less than 5%. Moreover, based on design codes of the concrete structures and steel-concrete mixed structure of tall buildings, a simplified constitutive model of kernel concrete is developed to consider the confinement effects of steel tube on the concrete. The results of numerical example show that the P-△ curve based on the simplified model is consistent with the experimental results, but the ultimate bearing capacity is less than experimental results. Therefore, the model has a reasonable reliability and can be a reference for similar engineering design analysis.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 537-541
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.537
• Online since: October 2011
• Authors: Dan Guang Pan, Zheng Li, Jin Peng Tan, Hong Chun Gao
• Keywords: Concrete-Filled Steel Tube (CFST), Confinement Effect, Constitutive Model, Finite Element, Meshing Size

References

[1] Jian-guo Nie: Composite structures of steel and concrete: theory and practice. Beijing: Science Press, (2009). (in Chinese)

[2] Shaohuai Cai: China Civil Engineering Journal, Vol. 32 (1999), p.16. (in Chinese)

[3] Linhai Han. Concrete-filled steel tubular structure. Science Press, Beijing (2000). (in Chinese)

[4] M. Shams, M. A. Saadeghvaziri: ACI Structural Journal, Vol. 94 (1997), p.558.

[5] E. Spacone, S. El-Tawil: Journal of Structural Engineering, Vol. 130 (2004), p.159.

[6] Hui Qu, Wang Wen da: Engineering Mechanics, Vol. 27 (2010), pp.106-114. (in Chinese)

[7] Qingxiong Wu, Baochun Chen, Jiangang Wei: Engineering Mechanics, Vol. 25 (2008), p.68. (in Chinese)

[8] Hefei Zhu, Qingli Wang, Yang Liu: Journal of Shenyang Jianzhu University (Natural Science), Vol. 24 (2008), p.86. (in Chinese)

[9] Quanliang Qing, Sam Fragomeni: Journal of Constructional Steel Research, Vol. 66 (2010), p.159.

[10] Hamid R. Valipour, Stephen J. Foster: Journal of Constructional Steel Research, Vol. 66 (2010), p.793.

[11] Yafeng Xu, Jingyi Zhao, Ning Li, Xiaoyi Lu: Journal of Shenyang Jianzhu University (Natural Science), Vol. 25 (2009), p.482. (in Chinese)

[12] China Association for Engineering Construction Standardization: Specification for design of steel-concrete mixed structure of tall buildings. CECS2003:2008. Beijing: China Planning Press, (2008). (in Chinese)

[13] Ministry of Construction of People's Republic of China: Code for design of concrete structures. Beijing: China Architecture & Building Press, (2002). (in Chinese)
