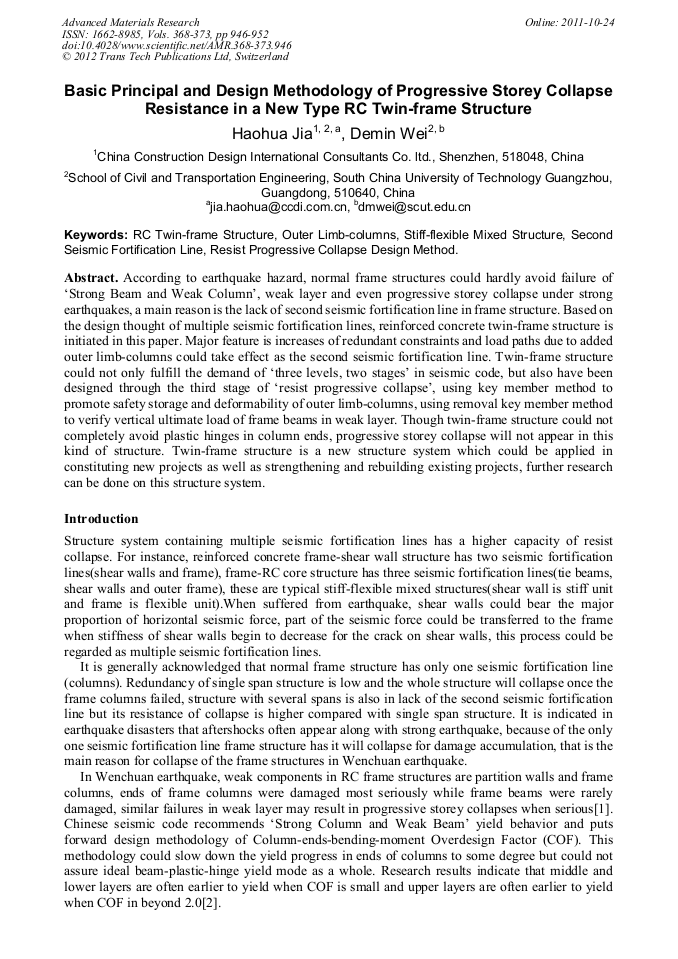

Basic Principal and Design Methodology of Progressive Storey Collapse Resistance in a New Type RC Twin-Frame Structure

Abstract:

According to earthquake hazard, normal frame structures could hardly avoid failure of ‘Strong Beam and Weak Column’, weak layer and even progressive storey collapse under strong earthquakes, a main reason is the lack of second seismic fortification line in frame structure. Based on the design thought of multiple seismic fortification lines, reinforced concrete twin-frame structure is initiated in this paper. Major feature is increases of redundant constraints and load paths due to added outer limb-columns could take effect as the second seismic fortification line. Twin-frame structure could not only fulfill the demand of ‘three levels, two stages’ in seismic code, but also have been designed through the third stage of ‘resist progressive collapse’, using key member method to promote safety storage and deformability of outer limb-columns, using removal key member method to verify vertical ultimate load of frame beams in weak layer. Though twin-frame structure could not completely avoid plastic hinges in column ends, progressive storey collapse will not appear in this kind of structure. Twin-frame structure is a new structure system which could be applied in constituting new projects as well as strengthening and rebuilding existing projects, further research can be done on this structure system.

• Periodical: Advanced Materials Research (Volumes 368-373)
• Pages: 946-952
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.368-373.946
• Online since: October 2011
• Authors: Hao Hua Jia, De Min Wei
• Keywords: Outer Limb-Columns, RC Twin-Frame Structure, Resist Progressive Collapse Design Method, Second Seismic Fortification Line, Stiff-Flexible Mixed Structure

References

[1] Youlin Xu, Seismic Damage Investigation and Reflection on Structural Safety of Wenchuan Earthquake. (In Chinese) edited by China Architecture & Building Press, Beijing (2009) , in press.

[2] Dagang Lv, Pengyan Song, etc. Most Likely To Collapse Failure Mode Analysis of Reinforced Concrete Frame Structure Based on the Reliability. Collapse Resistant Analysis and Design of Construction and Engineering Structure. (In Chinese) edited by China Architecture & Building Press, Beijing (2009) , in press.

[3] Yingmin Li, Jun Han, Discussion of Failure Mechanism and Control Method of Building Structure in Strong earthquake. (In Chinese) edited by Journal of Civil, Architectural & Environment Engineering. Vol. 32 Sup 2 (2010), pp.1-5

[4] Zhongxian Li, Theory and Technology of Split Reinforced Concrete Columns. (In Chinese) edited by Engineering Mechanics. Vol. 22 Sup (2005), pp.127-141

[5] Akiyama Makuro, Earthquake-Resistant Design Method for Buildings Based on Energy. edited by Tsinghua University Press, Beijing (2010) , in press.

[6] Jiaru Qian, Zuozhuo Zhao. Seismic Damage Analysis of Frame Structure Influenced by Brick Filler Wall Stiffness and Concrete Slab Reinforcement. Seismic Damage Investigation and reconstruction analysis report about Wenchuan Earthquake. (In Chinese) edited by China Architecture & Building Press, Beijing (2008) , in press.

[7] Code for seismic design of buildings GB50011-2010[S]. edited by China Architecture & Building Press, Beijing (2010), in press.

[8] UFC4-023-03, Design of structures to resist progressive collapse[S]. Washington D.C. Department of Defense, U.S. (2005)

[9] Code for design of concrete structures GB50010-2010[S]. edited by China Architecture & Building Press, Beijing (2011), in press.
