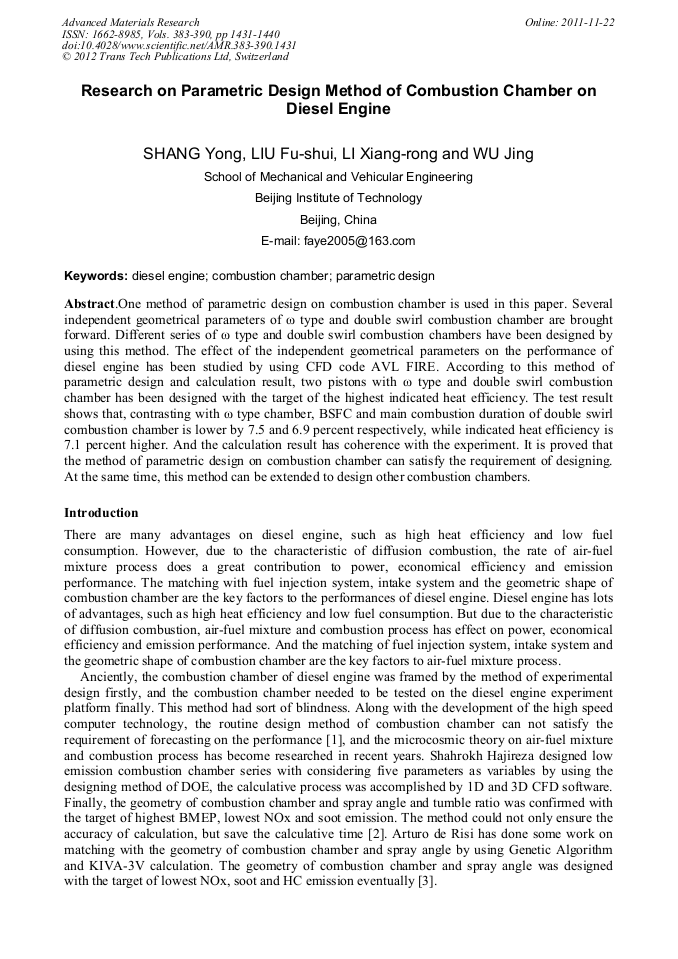

Research on Parametric Design Method of Combustion Chamber on Diesel Engine

Abstract:

One method of parametric design on combustion chamber is used in this paper. Several independent geometrical parameters of ω type and double swirl combustion chamber are brought forward. Different series of ω type and double swirl combustion chambers have been designed by using this method. The effect of the independent geometrical parameters on the performance of diesel engine has been studied by using CFD code AVL FIRE. According to this method of parametric design and calculation result, two pistons with ω type and double swirl combustion chamber has been designed with the target of the highest indicated heat efficiency. The test result shows that, contrasting with ω type chamber, BSFC and main combustion duration of double swirl combustion chamber is lower by 7.5 and 6.9 percent respectively, while indicated heat efficiency is 7.1 percent higher. And the calculation result has coherence with the experiment. It is proved that the method of parametric design on combustion chamber can satisfy the requirement of designing. At the same time, this method can be extended to design other combustion chambers.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 1431-1440
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.1431
• Online since: November 2011
• Authors: Yong Shang, Fu Shui Liu, Xiang Rong Li, Jing Wu
• Keywords: Combustion Chamber, Diesel Engine, Parametric Design

References

[1] Zhou Lei, Zhao Chang lu, Zhang Fu jun, Optimization of Diesel Chamber by Advanced Combustion Simulation, Journal of Combustion Science and Technology, vol. 10, 2004, pp.465-470.

[2] Shahrokh, Hajireza, Application of CFD Modeling in Combustion Bowl Assessment of Diesel Engines Using DoE Methodology, SAE paper 2006-01-3330.

DOI: 10.4271/2006-01-3330

[3] Arturo de Risi, Optimization of the Combustion Chamber of Direct Injection Diesel Engines, SAE paper 2003-01-1064.

DOI: 10.4271/2003-01-1064

[4] Wu Jing, Parameterization and Sensitivity analysis of Double Swirl Combustion System for Diesel Engine", Beijing Institute of Technology Master, s Paper, 2008, pp.16-23.

[5] Reitz R D, Modeling atomization processes in high pressure vaporizing sprays, Atomization and Spray Technology, 1987. p.309—337.

[6] Magnussen B F, Hjertager B H, On mathematical modeling of turbulent combustion with special emphasis on soot formation and combustion, In Proceedings of the Sixteenth International Symposium on Combustion, Pittsburgh: The Combustion Institute, (1977).

DOI: 10.1016/s0082-0784(77)80366-4
