Research on Heat-Supply Energy Conservation Supervisory Controlling System in the Substation with Peak-Shaving Boiler

Abstract:

Heat supplies not only consume large amounts of energy, but also are very inefficient. However, in this case, a monitored control system which will realize 10% energy conservation in heat supplying is designed. This system has a two layer structure: one on-spot control layer and one upper supervisory layer. The former is exploited by PLC; the latter supervise and control the former via GPRS wireless communications. The Internet network will also in this system monitor any of the substations far away from the controlling centre. In this paper, the control scheme, hardware and software of the system will be introduced in detail. Until now, the system has been steadily running for more than 2 heating periods in the station and has pass all the relevant departments’ technical tests.

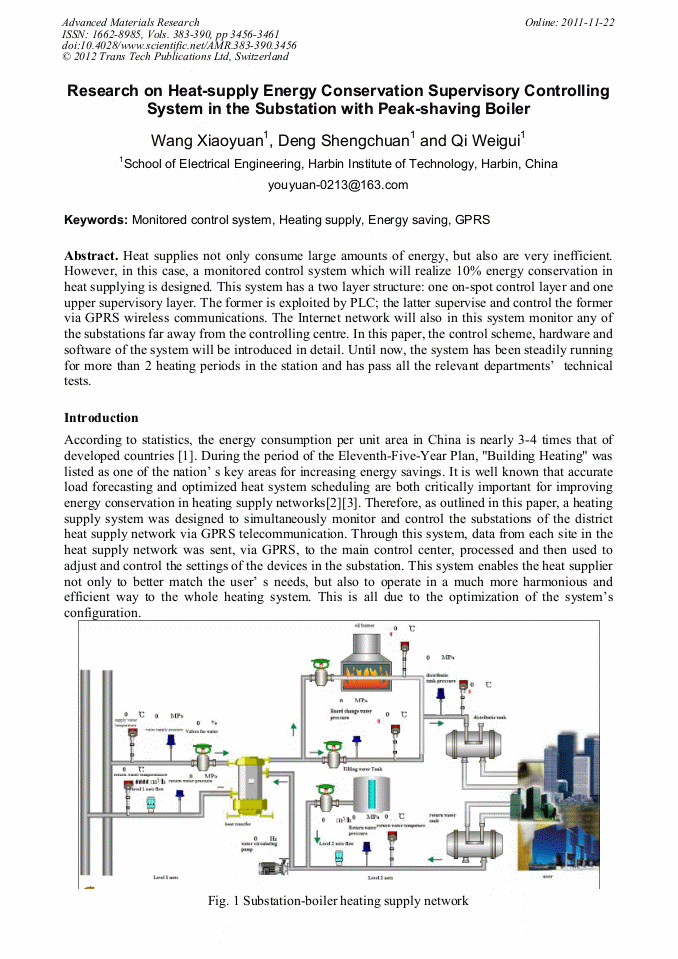

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 3456-3461
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.3456
• Online since: November 2011
• Authors: Xiao Yuan Wang, Sheng Chuan Deng, Wei Gui Qi
• Keywords: General Packet Radio Service (GPRS), Heating Supply, Monitored Control System, Saving Energy

References

[1] Jiang Yi. Current building energy consumption in China and effective energy efficiency measures [J]. Heating Ventilating & Air Conditioning . 2005, 35(5): 30～40.

[2] A notification regarding the State Council' s Comprehensive energy-saving printing regulations published by the state(2007) number 15. http: /www. gov. cn/zwgk/2007-06/03/content_634545. htm.

[3] Chen Lie, Li Juan and Qi Weigui. Study of heating load forecast based on time series crossover method. Electrical technology of intelligent buildings(2007): 1(3).

[4] Zhang Yong-ming, QI Wei-gui, WANG Jun-dong, TANG Hai-yan and CHEN Lie . Time Series Crossover Load Forecasting Approach Based on Support Vector Machines. Power System Technology. 31 (Supplement): 2207-210.

DOI: 10.1109/icmlc.2008.4620500
