Simulated Programming Characteristics of Stacked-Gate Flash Memories with High-k Tunnel Dielectrics

Abstract:

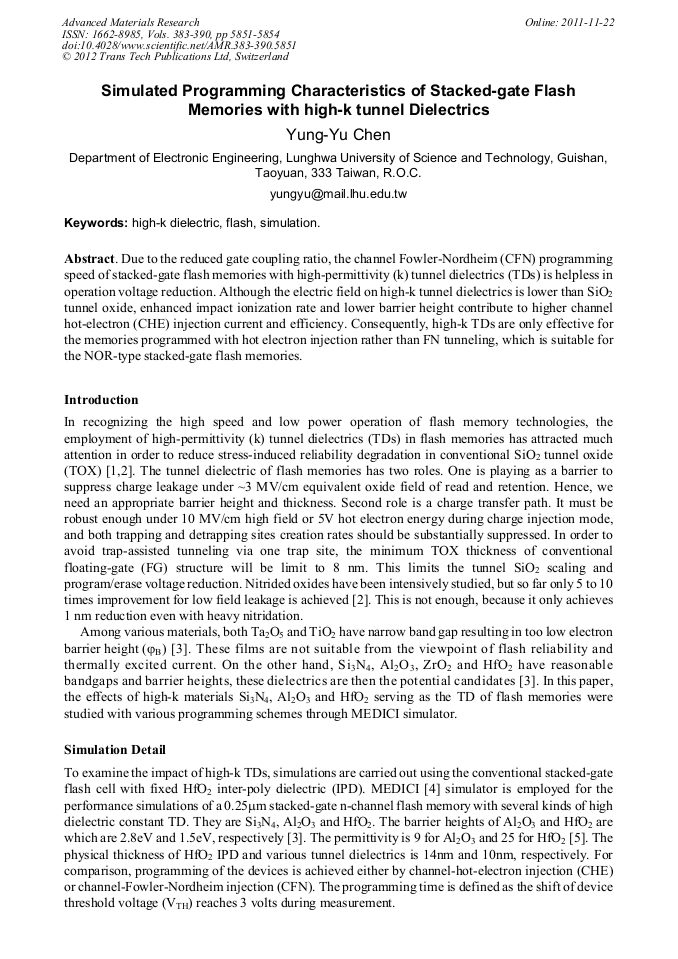

Article Preview

Due to the reduced gate coupling ratio, the channel Fowler-Nordheim (CFN) programming speed of stacked-gate flash memories with high-permittivity (k) tunnel dielectrics (TDs) is helpless in operation voltage reduction. Although the electric field on high-k tunnel dielectrics is lower than SiO2 tunnel oxide, enhanced impact ionization rate and lower barrier height contribute to higher channel hot-electron (CHE) injection current and efficiency. Consequently, high-k TDs are only effective for the memories programmed with hot electron injection rather than FN tunneling, which is suitable for the NOR-type stacked-gate flash memories.

Info:

Periodical:

Advanced Materials Research (Volumes 383-390)

Edited by:

Wu Fan

Pages:

5851-5854

Citation:

Y. Y. Chen, "Simulated Programming Characteristics of Stacked-Gate Flash Memories with High-k Tunnel Dielectrics", Advanced Materials Research, Vols. 383-390, pp. 5851-5854, 2012

Online since:

November 2011

Authors:

Export:

Price:

$38.00

[1] The International Technology Roadmap for Semiconductors, Semiconductor Industry Assoc.

[2] K. Yoshikawa, in: Int. Electron Devices and Materials Symposia, 2000, p.11.

[3] J. Robertson: J. Vac. Sci. Technol. B Vol. 18 (2000), p.1785.

[4] MEDICI User's Manual, Technology Modeling Associates, Sunnyvale, CA, USA.

[5] G.D. Wilk, R.M. Wallace and J.M. Anthony: J. Appl. Phys. Vol. 89 (2001), p.5243.
