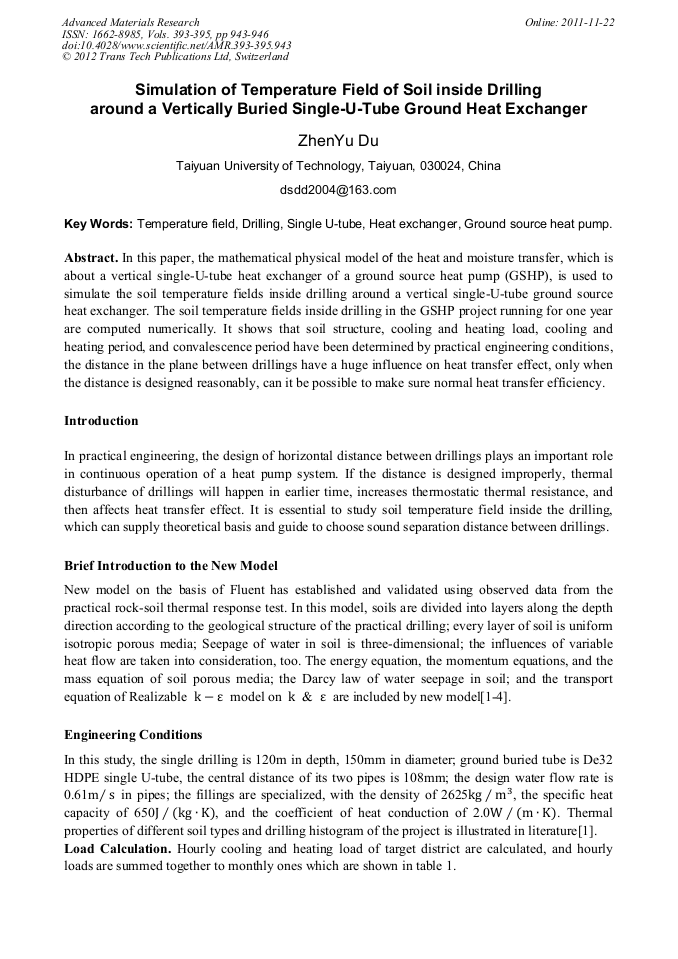

Simulation of Temperature Field of Soil Inside Drilling around a Vertically Buried Single-U-Tube Ground Heat Exchanger

Abstract:

In this paper, the mathematical physical model of the heat and moisture transfer, which is about a vertical single-U-tube heat exchanger of a ground source heat pump (GSHP), is used to simulate the soil temperature fields inside drilling around a vertical single-U-tube ground source heat exchanger. The soil temperature fields inside drilling in the GSHP project running for one year are computed numerically. It shows that soil structure, cooling and heating load, cooling and heating period, and convalescence period have been determined by practical engineering conditions, the distance in the plane between drillings have a huge influence on heat transfer effect, only when the distance is designed reasonably, can it be possible to make sure normal heat transfer efficiency.

• Periodical: Advanced Materials Research (Volumes 393-395)
• Pages: 943-946
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.393-395.943
• Online since: November 2011
• Authors: Zhen Yu Du
• Keywords: Drilling, Ground Source Heat Pump (GSHP), Heat Exchanger, Single U-Tube, Temperature Field

References

[1] Zhang Yixing. The Convalescence Research of Soil Temperature Field of Vertical Buried Pipe Heat Exchanger of GSHP[D]. Taiyuan: Taiyuan University of Technology, 2010: 14-62.

[2] Chen Di, Li Sufen, Shang Yan. Soil temperature numerical simulation around ground source heat pump buried tube in layered soil [Z]. Beijing: Papers of the 4th Youth Association of Chinese Dynamic Engineering, 2009. 01. 10.

[3] Li Sufen, Wang Jinxiang. Numerical simulation of U-tube heat exchanger with thermal and seepage coupling effect [J]. Thermal Science and Technology, 2006, 12 (5): 301-305.

[4] Wang Fujun. Computational fluid dynamics analysis-CFD software theory and application [M], Beijing: Tsinghua University Press, (2004).
