Influence of Fe2O3 on Molten Slag Properties in Slag Splashing on Nickel Smelting Converter

De Gang Ma; Wei Qing Chen

doi:10.4028/www.scientific.net/AMR.402.249

Paper Titles

Formation and Prevention of Sliver Defects on the Surface of Cold-Rolled Strip
p.221

Phosphorus Distribution Equilibrium between CaO-FeO*-SiO₂-P₂O₅(15%)-CaF₂(B₂O₃) Slag System and Carbon-Saturated Hot Metal at 1573K
p.227

Research on RDI_+3.15 of Respectively Granulating Sintering
p.235

Acid Leaching of Vanadium from a Vanadium Residue
p.243

Influence of Fe₂O₃ on Molten Slag Properties in Slag Splashing on Nickel Smelting Converter
p.249

A Novel Method of Leaching Vanadium from Extracted Vanadium Residue Using Sodium Sub-Molten Salt Medium
p.253

Study on the Removing of Ammonia Nitrogen in Ammonium Paratungstate Crystal Parent Solution
p.261

Kinetics of Pressure Acid Leaching of Zinc from Zinc Silicate Ore
p.266

Microstructure Evolution of A356 Aluminum Alloy Produced by Cooling Slope Method
p.272

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 402Influence of Fe2O3 on Molten Slag Properties in...

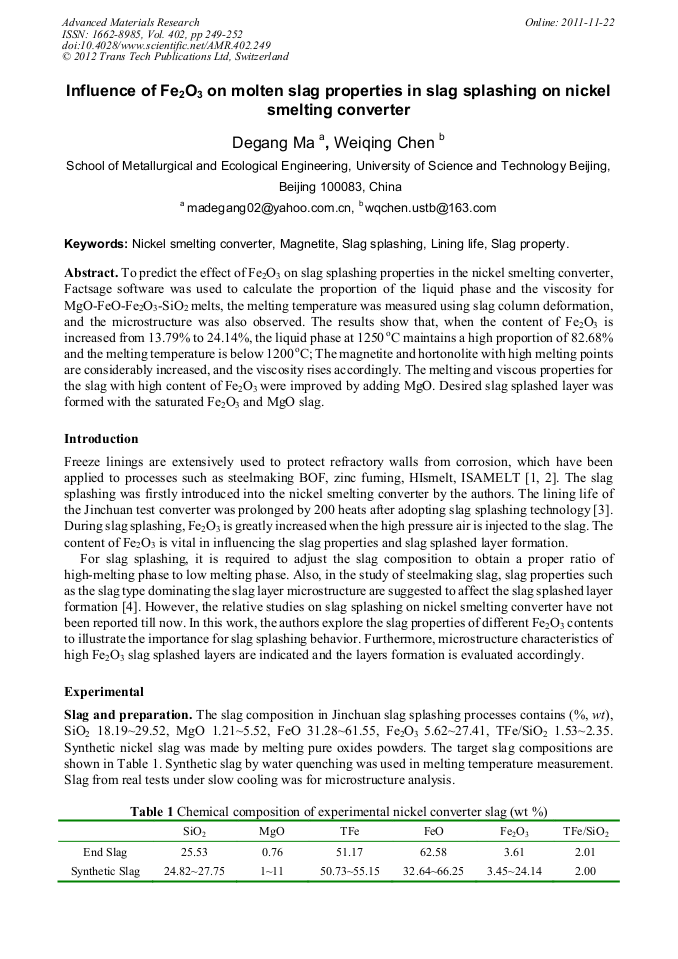

Influence of Fe₂O₃ on Molten Slag Properties in Slag Splashing on Nickel Smelting Converter

Abstract:

To predict the effect of Fe₂O₃ on slag splashing properties in the nickel smelting converter, Factsage software was used to calculate the proportion of the liquid phase and the viscosity for MgO-FeO-Fe₂O₃-SiO₂ melts, the melting temperature was measured using slag column deformation, and the microstructure was also observed. The results show that, when the content of Fe₂O₃ is increased from 13.79% to 24.14%, the liquid phase at 1250°C maintains a high proportion of 82.68% and the melting temperature is below 1200°C; The magnetite and hortonolite with high melting points are considerably increased, and the viscosity rises accordingly. The melting and viscous properties for the slag with high content of Fe₂O₃ were improved by adding MgO. Desired slag splashed layer was formed with the saturated Fe₂O₃ and MgO slag.

You might also be interested in these eBooks

Advances in Metallurgical and Mining Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 402)

Pages:

249-252

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.402.249

Citation:

Cite this paper

Online since:

November 2011

Authors:

De Gang Ma, Wei Qing Chen

Keywords:

Lining Life, Magnetite, Nickel Smelting Converter, Slag Property, Slag Splashing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C. M. Kenneth, S.U. Yuchu, B. F. Alistair, and L. Zushu: ISIJ International. Vol.45 (2005), p.619

Google Scholar

[2] M. Campforts, E. Jak, and B. Blanpain: Metall. Mater. Trans. B. Vol.40B (2009), p.632.

Google Scholar

[3] X. T. Liu, W. Q. Chen, D. G. Ma, and Z. Q. Hao, C.A. Patent 200810113158.4(2008), In Chinese.

Google Scholar

[4] F. G. Guevara, and G. A. Irons: published on line Metall. Mater. Trans. B. (2011).

Google Scholar

[5] L. N. Zhang, L. Zhang, and M.Y. Wang: Tran. Nonferrous Met. Soc. China. Vol.15 (2005), p.1.

Google Scholar

[6] A. Kondratiew and E. Jak: Metall. Mater. Trans. B. Vol. 32 (2001), p.1015.

Google Scholar

[7] Z. Q. Zhu, J.Q. He: Modem Copper Smelting. Beijing: Science Press, 2003. In Chinese.

Google Scholar
