For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Microstructure Evolution of A356 Aluminum Alloy Produced by Cooling Slope Method
p.272
Evaluation of Melting Temperature of the Freeze Slag in Reaction Shaft of Flash Smelting Furnace
p.277
Research of Biological Desilication Mechanism by Bacillus mucilaginosus GSY
p.283
Material Ratio Optimization of Low Mass Ratio of Alumina to Silica of Calcium Aluminate Slag Based on Thermodynamic Calculation Method
p.288
Nickel Loss during Iron Precipitation and Product Characterization
p.293
Mechanism of Precipitate Removal of Antimony and Bismuth Impurities from Copper Electrolyte by Arsenic
p.297
Zinc Removing from Aluminum Alloy by Vacuum Distillation
p.303
Investigations of Alloying Elements and Rare Metals on the Hydrogen Content and Inclusion in Aluminum Alloy
p.307
Upgrade Silicon Powder Prepared by SHS with Acid Leaching Treatment
p.312

Nickel Loss during Iron Precipitation and Product Characterization

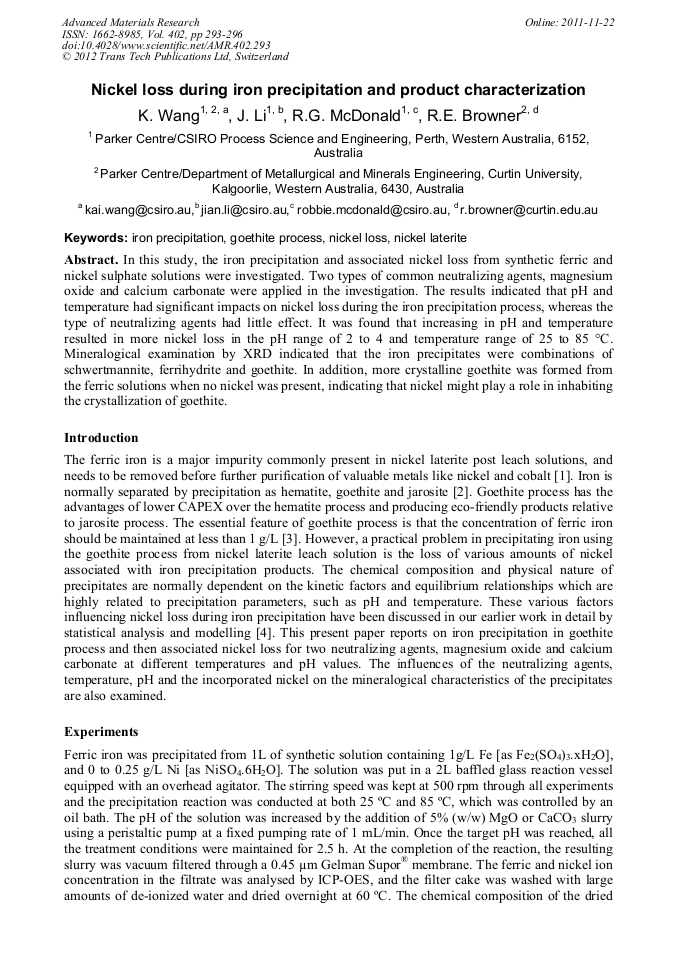

Article Preview

Abstract:

In this study, the iron precipitation and associated nickel loss from synthetic ferric and nickel sulphate solutions were investigated. Two types of common neutralizing agents, magnesium oxide and calcium carbonate were applied in the investigation. The results indicated that pH and temperature had significant impacts on nickel loss during the iron precipitation process, whereas the type of neutralizing agents had little effect. It was found that increasing in pH and temperature resulted in more nickel loss in the pH range of 2 to 4 and temperature range of 25 to 85 °C. Mineralogical examination by XRD indicated that the iron precipitates were combinations of schwertmannite, ferrihydrite and goethite. In addition, more crystalline goethite was formed from the ferric solutions when no nickel was present, indicating that nickel might play a role in inhabiting the crystallization of goethite.

You might also be interested in these eBooks
Advances in Metallurgical and Mining Engineering View Preview

Info:

Periodical:

Advanced Materials Research (Volume 402)

Pages:

293-296

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.402.293

Citation:

Cite this paper

Online since:

November 2011

Authors:

Kai Wang, Jian Li, R.G. McDonald, R.E. Browner

Keywords:

Goethite Process, Iron Precipitation, Nickel Laterite, Nickel Loss

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] R.G. McDonald and B.I. Whittington: Hydrometallurgy Vol. 91 (2008), p.56.

Google Scholar

[2] A. Gordon and R. Pickering: 1975. Metall. Mater. Trans. B Vol. 6 (1975), p.43.

Google Scholar

[3] P.T. Davey and T.R. Scott: Hydrometallurgy Vol. 2 (1976), p.25.

Google Scholar

[4] K. Wang, J. Li, R.G. McDonald and R.E. Browner: Hydrometallurgy Vol. 109 (2011), p.140.

Google Scholar

[5] J. Dousma, D.d. Ottelander, and P.L.d. Bruyn: J. Colloid Interface Sci. Vol. 56 (1976), p.527.

Google Scholar

[6] B. Singh, D.M. Sherman, R.J. Gilkes, M.A. Wells and J.F.W. Mosselmans: Clay Minerals, Vol. 37 (2002), p.639.

Google Scholar

[7] J.P. Beukes, E.W. Giesekke and W. Elliott: Miner. Eng. Vol. 13 (2000), p.1573.

Google Scholar

[8] R.M. Cornell, R. Giovanoli and W. Schneider: J. Chem. Tech. Biotechnol. Vol. 53 (1992), p.73.

Google Scholar

[9] M. Loan, O.M.G. Newman, R.M.G. Cooper, J.B. Farrow and G.M. Parkinson:Hydrometallurgy, Vol. 81 (2006), p.104.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
