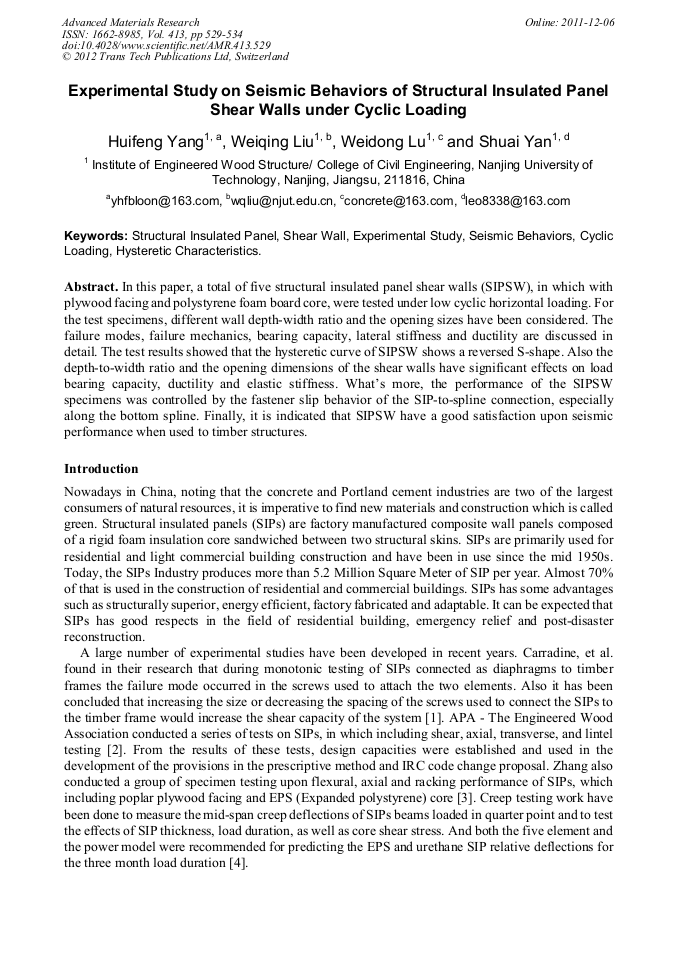

Experimental Study on Seismic Behaviors of Structural Insulated Panel Shear Walls under Cyclic Loading

Abstract:

In this paper, a total of five structural insulated panel shear walls (SIPSW), in which with plywood facing and polystyrene foam board core, were tested under low cyclic horizontal loading. For the test specimens, different wall depth-width ratio and the opening sizes have been considered. The failure modes, failure mechanics, bearing capacity, lateral stiffness and ductility are discussed in detail. The test results showed that the hysteretic curve of SIPSW shows a reversed S-shape. Also the depth-to-width ratio and the opening dimensions of the shear walls have significant effects on load bearing capacity, ductility and elastic stiffness. What’s more, the performance of the SIPSW specimens was controlled by the fastener slip behavior of the SIP-to-spline connection, especially along the bottom spline. Finally, it is indicated that SIPSW have a good satisfaction upon seismic performance when used to timber structures.

• Periodical: Advanced Materials Research (Volume 413)
• Pages: 529-534
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.413.529
• Online since: December 2011
• Authors: Hui Feng Yang, Wei Qing Liu, Wei Dong Lu, Shu Ai Yan
• Keywords: Cyclic Loading, Experimental Study, Hysteretic Characteristics, Seismic Behavior, Shear Wall, Structural Insulated Panel

References

[1] D.M. Carradine, F.E. Woeste and J.D. Dolan: Timber Frame and Structural Insulated Panel Building Design Concepts, Proceedings of the 8th World Conference on Timber Engineering, Finland, (2004), pp.1-4.

[2] Information on http: /www. apawood. org.

[3] Y.L. Zhang: Study on the Structural Properties and Design Methods of Structural Insulated Panels With the Fast-growing Poplar Wood Facing, Thesis submitted in partial fulfillment of the Master of Engineering Degree at Nanjing University of Technology, Nanjing, Jiangsu, 2009. (In Chinese).

[4] S.B. Taylor, H.B. Manbeck, J.J. Janowiak and D.R. Hiltunen: J. Struct. Eng. Vol. 123(12) (1997), p.1658.

[5] J.B. Jamison: Monotonic and Cyclic Performance of Structurally Insulated Panel Shear Walls, Thesis submitted in partial fulfillment of the Master of Science Degree at the Virginia Polytechnic Institute and State University, Blacksburg, Virginia. (1997).

[6] A. Kermani and R. Hairstans: J. Struct. Eng. Vol. 132(11) (2006), p.1806.

[7] American Society for Testing and Materials: ASTM E2126-08, Standard test methods for cyclic load test for shear resistance of framed walls for building, Pennsylvania. (2008).

[8] European Committee for Standardization: EN 12512-2003, Timber structures - Test methods - Cyclic testing of joints made with mechanical fasteners, CEN, 2001, Brussels, Belgium. (2003).

DOI: 10.3403/02536208

[9] International Organization for Standard: ISO 16670-2003, Timber structure - Joints made with mechanical fasteners – Quasi-static reversed-Cyclic test method. (2003).
