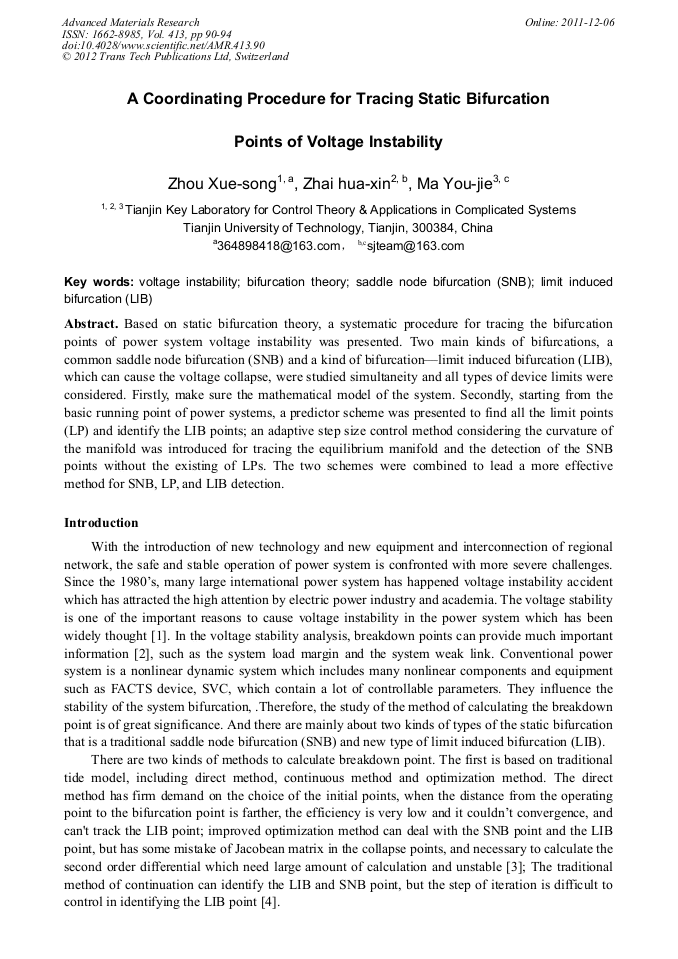

A Coordinating Procedure for Tracing Static Bifurcation Points of Voltage Instability

Abstract:

Based on static bifurcation theory, a systematic procedure for tracing the bifurcation points of power system voltage instability was presented. Two main kinds of bifurcations, a common saddle node bifurcation (SNB) and a kind of bifurcation—limit induced bifurcation (LIB), which can cause the voltage collapse, were studied simultaneity and all types of device limits were considered. Firstly, make sure the mathematical model of the system. Secondly, starting from the basic running point of power systems, a predictor scheme was presented to find all the limit points (LP) and identify the LIB points; an adaptive step size control method considering the curvature of the manifold was introduced for tracing the equilibrium manifold and the detection of the SNB points without the existing of LPs. The two schemes were combined to lead a more effective method for SNB, LP, and LIB detection.

• Periodical: Advanced Materials Research (Volume 413)
• Pages: 90-94
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.413.90
• Online since: December 2011
• Authors: Xue Song Zhou, Hua Xin Zhai, You Jie Ma
• Keywords: Bifurcation Theory, Limit Induced Bifurcation (LIB), Saddle Node Bifurcation (SNB), Voltage Instability

References

[1] Zhou Da-di, Han Wen-ke. China's Energy Research [M]. BeiJing: China Environmental Science Press.

[2] TAYLOR CW. Power system voltage stability [M]. NewYork: Mc-Graw- Hill, (1994).

[3] YU Yi-xin, WANG Cheng-shan. Theory and method of power system stability [M]. Beijing: Science Press. (1999).

[4] Ajjarapu V, Lee B. Bifurcation theory and its application to nonlinear dynamic phenomena in an electrical power system [J]. IEEE Transactions on Power Systems, 1992, 7(1): 424-431.

DOI: 10.1109/59.141738

[5] LI Hong-zhong, CHENG Hao-zhong, TENG Le-tian, et al. A Direct Method for Computing Hopf Bifurcation Point in Power System Dynamic Voltage Stability [J] Proceedings of the CSEE, 2006, 26(8): 28-32.

[6] PENA, R.: Power rating of double fed induction generator using stall regulation, literal report, Dept. Elec. Eng., University of Nottingham, (1995).

[7] MA You-jie; ZHANG Ji-dong; ZHOU Xue-song; WANG Xin-zhi Study on voltage stability of wind power systems [J], Renewable Energy, 2006, （24）3: 37－39.

[8] Limit points [J]. Electrical Power and Energy Systems, 1996, 18(2): 12- 129.

[9] LU Qi chao. Bifurcation and Singularity [M]. Science and Technology Education Press of Shanghai. 1995, 9.

[10] WANG Cheng-shan, WEI Wei. An Improved Continuation Method with Controlled Step Size [J]. Transactions of china electro technical society, 2004, 19(2): 58-63.

[11] PENG Zhu hui, HU Guo gen, HAN Zheng xiang. Voltage stability analysis of power system based on bifurcation theory[M]. BeiJing: Electric Power Press of China, (2005).
