The Failure Mechanism of Cemented Carbide Milling Insert during Machining Difficult-to-Cut Metal

Abstract:

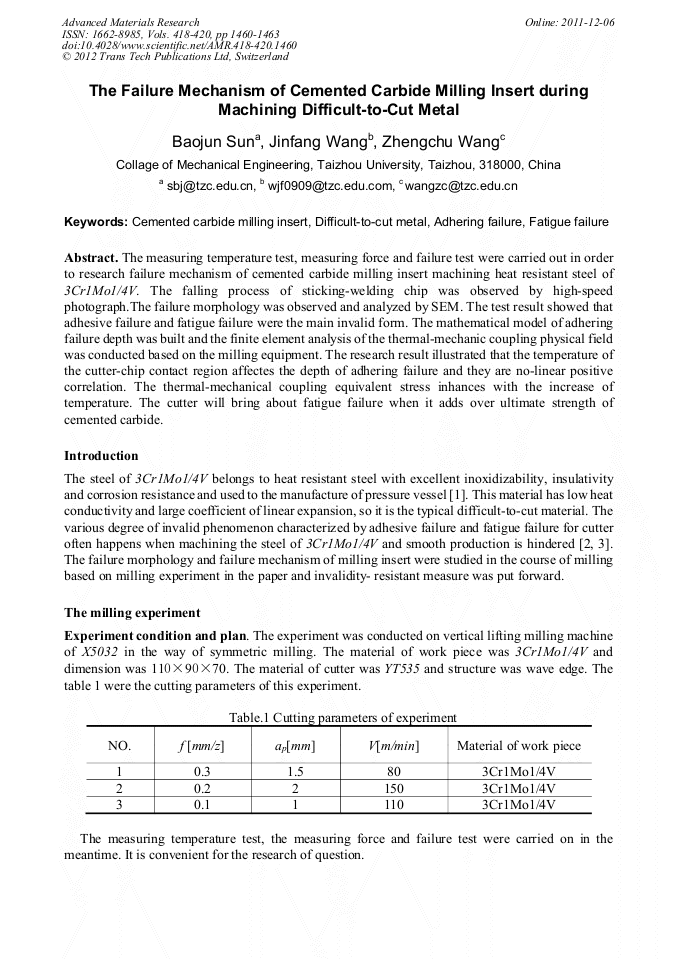

Article Preview

The measuring temperature test, measuring force and failure test were carried out in order to research failure mechanism of cemented carbide milling insert machining heat resistant steel of 3Cr1Mo1/4V. The falling process of sticking-welding chip was observed by high-speed photograph.The failure morphology was observed and analyzed by SEM. The test result showed that adhesive failure and fatigue failure were the main invalid form. The mathematical model of adhering failure depth was built and the finite element analysis of the thermal-mechanic coupling physical field was conducted based on the milling equipment. The research result illustrated that the temperature of the cutter-chip contact region affectes the depth of adhering failure and they are no-linear positive correlation. The thermal-mechanical coupling equivalent stress inhances with the increase of temperature. The cutter will bring about fatigue failure when it adds over ultimate strength of cemented carbide.

Info:

Periodical:

Advanced Materials Research (Volumes 418-420)

Edited by:

Xianghua Liu, Zhengyi Jiang and Jingtao Han

Pages:

1460-1463

Citation:

B. J. Sun et al., "The Failure Mechanism of Cemented Carbide Milling Insert during Machining Difficult-to-Cut Metal", Advanced Materials Research, Vols. 418-420, pp. 1460-1463, 2012

Online since:

December 2011

Export:

Price:

$38.00

[1] Y. N. Chen, Y. F. Liu: Manufacturing technology and machine tool (7): 42-45(2009). In Chinese.

[2] B. J. Sun, G.Y. Tan: Machinery (11): 54-55 (2006). In Chinese.

[3] Y. J. Sun, G. Y. Tan. Journal of harbin university of science and technology 10(6): 88-91 (2005). In Chinese.

[4] X.Q. Chen: Metal Cutting Theory and Cutter (Peking University Press, China, 2006).

[5] F. L. Sun, Z. J. Li. Journal of harbin university of science and technology 2(5): 1-3 (1997). In Chinese.
