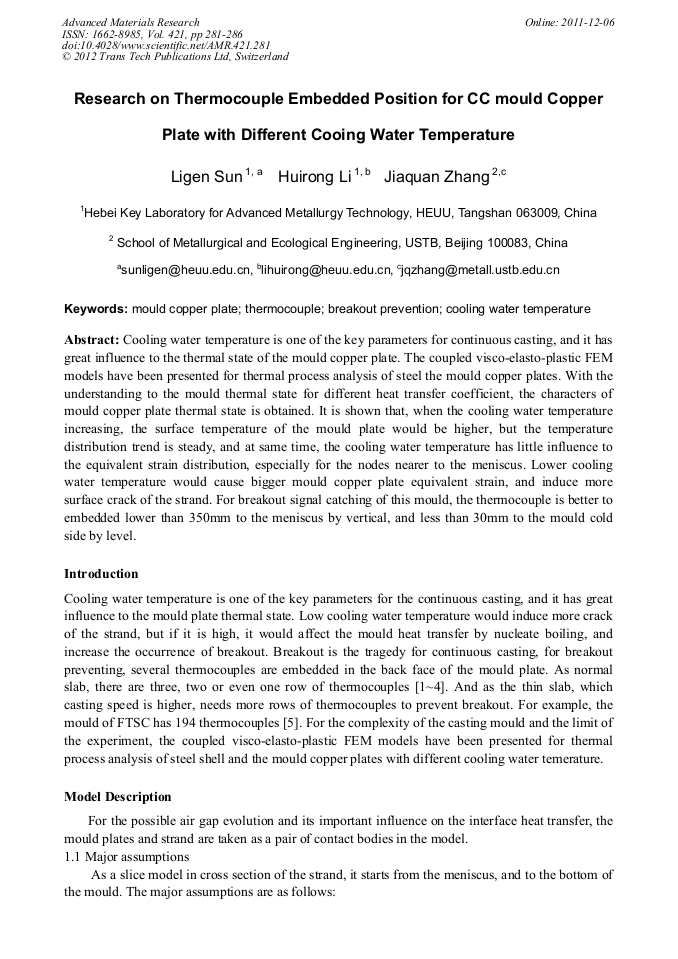

Research on Thermocouple Embedded Position for CC Mould Copper Plate with Different Cooing Water Temperature

Abstract:

Cooling water temperature is one of the key parameters for continuous casting, and it has great influence to the thermal state of the mould copper plate. The coupled visco-elasto-plastic FEM models have been presented for thermal process analysis of steel the mould copper plates. With the understanding to the mould thermal state for different heat transfer coefficient, the characters of mould copper plate thermal state is obtained. It is shown that, when the cooling water temperature increasing, the surface temperature of the mould plate would be higher, but the temperature distribution trend is steady, and at same time, the cooling water temperature has little influence to the equivalent strain distribution, especially for the nodes nearer to the meniscus. Lower cooling water temperature would cause bigger mould copper plate equivalent strain, and induce more surface crack of the strand. For breakout signal catching of this mould, the thermocouple is better to embedded lower than 350mm to the meniscus by vertical, and less than 30mm to the mould cold side by level.

• Periodical: Advanced Materials Research (Volume 421)
• Pages: 281-286
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.421.281
• Online since: December 2011
• Authors: Li Gen Sun, Hui Rong Li, Jia Quan Zhang
• Keywords: Breakout Prevention, Cooling Water Temperature, Mould Copper Plate, Thermocouple

References

[1] A. Delhalle, J. Mariotton, J. Birat etal. New development in quality and process monitoring on solmer's slab caster[C]. ISS Steelmaking Proc 1984: p.21

[2] T. Araki, Recent progress in continuous casting process in Japan[R]. 12th Japan-Czechoslovakia Joint Economic Committee Meeting. 1986.10

[3] S.G. Thornton and N.S. Hunter. The application of mould thermal monitoring to aid process and quality control when slab casting for heavy plate and strip grades[C]. ISS Steelmaking Conf. Proc. 1990: p.261

[4] S. Itoyama, H. Yamanaka, S. Tanaka etal. Prediction and prevention system for sticking-type breakout in continuous casting[C]. ISS Steelmaking Conf. Proc. 1988: p.97

[5] Li Junming, Ma Xinguang, Xue Yongqiang etal. Application of FTSC caster thermal map in production[J]. Continuous Casting, 2006, 2: p.10 (in chinese)

[6] W. H. Acadams. Heat transmission[R]. New York: Mc Graw Hill, (1954)

[7] J. E. Kelly, K. P. Michalek, T. G.O'Connor, B. G.. Thormas and J. A. Dantzig. Initial development of thermal and stress fields in continuously cast steel billets[J], Metallurgical Transaction A, 1988, 9A(10): p.2589

DOI: 10.1007/bf02645486

[8] A. Moitra. Thermo-mechanical model of steel shell behavior in continuous slab casting[D]. University of Illinois at Urbana-Champaign, (1993)

[9] M. N. Ozisik. Heat transfer a basic approach[R]. Singapore: McGraw-Hill, (1985)
