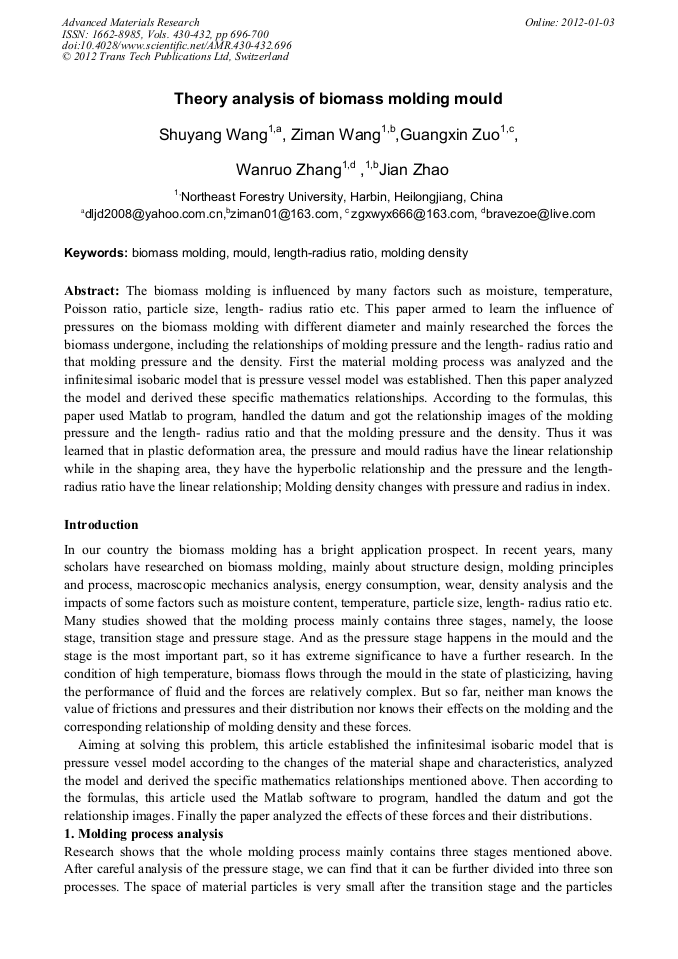

Theory Analysis of Biomass Molding Mould

Abstract:

The biomass molding is influenced by many factors such as moisture, temperature, Poisson ratio, particle size, length-radius ratio etc. This paper armed to learn the influence of pressures on the biomass molding with different diameter and mainly researched the forces the biomass undergone, including the relationships of molding pressure and the length-radius ratio and that molding pressure and the density. First the material molding process was analyzed and the infinitesimal isobaric model that is pressure vessel model was established. Then this paper analyzed the model and derived these specific mathematics relationships. According to the formulas, this paper used Matlab to program, handled the datum and got the relationship images of the molding pressure and the length-radius ratio and that the molding pressure and the density. Thus it was learned that in plastic deformation area, the pressure and mould radius have the linear relationship while in the shaping area, they have the hyperbolic relationship and the pressure and the length-radius ratio have the linear relationship; Molding density changes with pressure and radius in index.

You might also be interested in these eBooks

Frontiers of Advanced Materials and Engineering Technology

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 430-432)

Pages:

696-700

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.430-432.696

Citation:

Cite this paper

Online since:

January 2012

Authors:

Shu Yang Wang, Zi Man Wang, Guang Xin Zuo, Wan Ruo Zhang, Jian Zhao

Keywords:

Biomass Molding, Length-Radius Ratio, Molding Density, Mould

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Qinshan Fan. Engineering mechanics. Beijing. Higher Education Press, 1989. 11: 290-291.

Google Scholar

[2] Bingwei Chen. High efficient granulation mechanism and performance analysis of ring die granulating machine. [D]. Nanjing. NUST, 2009: 17-18.

Google Scholar

[3] Jianmin Zuo. Hydraulic and pneumatic transmission. Beijing. China Machine Press, 2007: 32-33.

Google Scholar

[4] Ehua Li. Finite element research of biomass curing and characteristic analysis of flat mold molding machine pressure roller. [D]. Harbin: Northeast Forestry University, 2009：34-35.

Google Scholar

[5] Jianjun Hu. Cold compression molding experimental research on straw particle fuel and numerical simulation. [D]. Dalian. Dalian University of Technology, 2008: 38-43.

Google Scholar
