Stability Analysis of Landfill Liner System Based on Numerical Simulation

Abstract:

Although ABAQUS is one of the most powerful non-linearly finite element software, it is lack of interface Duncan-Chang constitutive model, which is one of the generally used soil numerical method in China and worldwide. Subsequently, ABAQUS can not widely used in soil numerical method. To improve this situation, a new interface Duncan-Chang constitutive model was developed based on the preliminary direct shear test results through secondary development. Combined with practical engineering, the efficient model was established. Compared with smooth geomembrane/geotextile interface, the shear stress of reinforced geomembrane/geotextile interface increases obviously, and the sliding displacement decreases obviously. It supports our assumption that the reinforced geomembrane can improve interface shear strength and stability of liner system.

You might also be interested in these eBooks

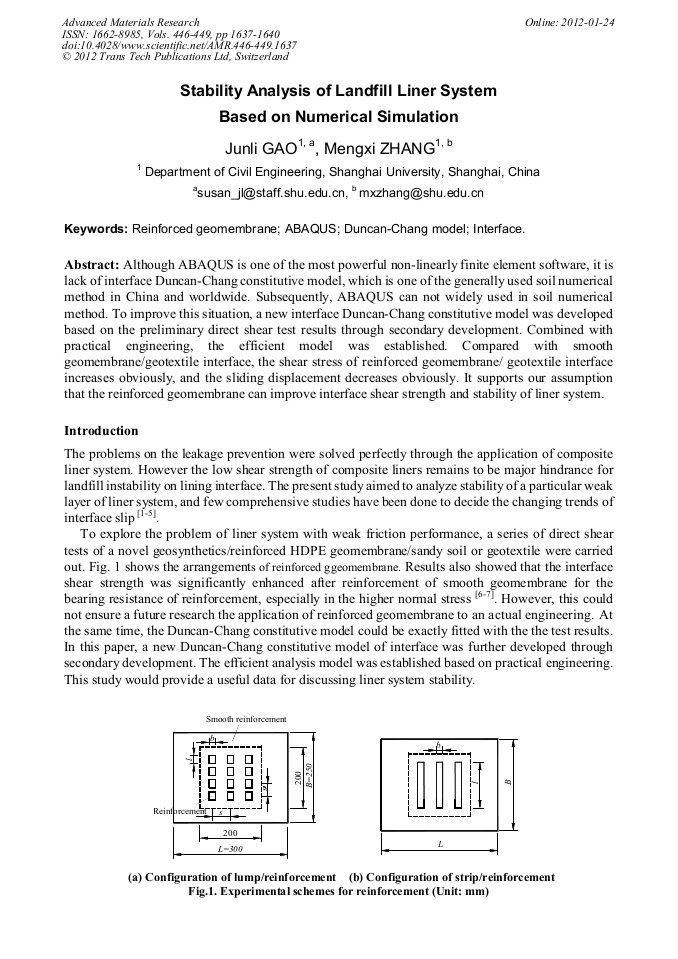

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 446-449)

Pages:

1637-1640

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.446-449.1637

Citation:

Cite this paper

Online since:

January 2012

Authors:

Jun Li Gao, Meng Xi Zhang

Keywords:

ABAQUS, Duncan-Chang Model, Interface, Reinforced Geomembrane

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.K. Mitchell, R.B. Seed and H.B. Seed: submitted to Journal of Geotechnical Engineering (1990).

Google Scholar

[2] E.M. Palmeira, H.N.L. Viana: submitted to Geotextiles and Geomembranes (2003).

Google Scholar

[3] J.C. Chai, N. Miura: submitted to Journal of Material Cyeles and Waste Management (2002).

Google Scholar

[4] L. Briancon, H. Girard and D. Poulain: submitted to Geotextiles and Geomembranes (2002).

Google Scholar

[5] P. Villard, J.P. Gourc and N. Feki: submitted to Geotextiles and Geomembranes (1999).

Google Scholar

[6] J.L. Gao, M.X. Zhang and W.J. Zhang: submitted to Rock and Soil Mechanics (2011), in press (In Chinese).

Google Scholar

[7] J.L. Gao, M.X. Zhang: Reinforced geomembrane. Chinese Patent: 201110091802.4. (2011) (In Chinese).

Google Scholar

[8] A.Z. Zhou, T.H. Lu: submitted to Chinese Journal of Geotechnical Engineering (2008) (In Chinese).

Google Scholar

[9] J.B. Jacob, A.M. Esterhuizen and J.M. Duncan: submitted to Journal of Geotechnical and Geoenvironmental Engineering (2001).

Google Scholar

[10] G. Zhang, J.M. Zhang: submitted to Chinese Journal of Geotechnical Engineering (2005) (In Chinese).

Google Scholar

[11] C.S. Desai, Y. Ma: submitted to International Journal for Numerical and Analytical Methods in Geomechanics (1992).

Google Scholar
