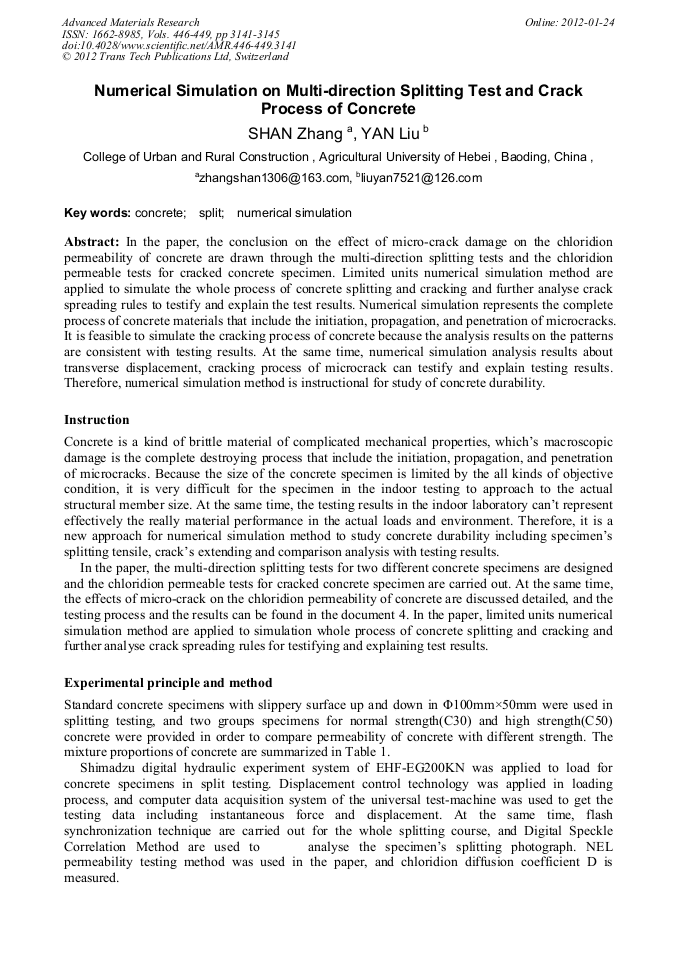

Numerical Simulation on Multi-Direction Splitting Test and Crack Process of Concrete

Abstract:

In the paper, the conclusion on the effect of micro-crack damage on the chloridion permeability of concrete are drawn through the multi-direction splitting tests and the chloridion permeable tests for cracked concrete specimen. Limited units numerical simulation method are applied to simulate the whole process of concrete splitting and cracking and further analyse crack spreading rules to testify and explain the test results. Numerical simulation represents the complete process of concrete materials that include the initiation, propagation, and penetration of microcracks. It is feasible to simulate the cracking process of concrete because the analysis results on the patterns are consistent with testing results. At the same time, numerical simulation analysis results about transverse displacement, cracking process of microcrack can testify and explain testing results. Therefore, numerical simulation method is instructional for study of concrete durability.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 3141-3145
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.3141
• Online since: January 2012
• Authors: Shan Zhang, Yan Liu
• Keywords: Concrete, Numerical Simulation, Split

References

[1] Yuwen Dong, Qingwen Ren. Study on Numerical Simulation of Crack Growth of Concrete Based on XFEM. Journal of Congqing Jiaotong University, 2009, 28(1) : 36-40, 155(In Chinese).

[2] Sha Liu, Fang Zhang. Simulaton of Crack Extension Based on ANSYS Finite Element Software. Chemical Equipment Technology, 2006, 27(1): 54 -57(In Chinese).

[3] Qinglei Yu, Chun'an Tang, Wangcheng Zhu. Digital Image-based Numerical Simulation on Failure Process of Concrete. Engineering Mechanics, 2008, 25(9): 72 -78(In Chinese).

[4] Yan Liu, Cheng Yi, Tingting Guo. Experimental Study on the Effects of Damage on the Chloridion Permeability of Concrete. Concrete , 2008, 228(10): 1-4(In Chinese).

[5] Xucheng Wang. Finite element method. Tsinghua University Press,2003(In Chinese).

[6] A. Ammouche, D.Breysse, H.Hornain, O. Didry and J.Marchand. A new image analysis technique for the quantitative assessment of microcracks in cement-based materials. Cement and Concrete Research,2003,30(1): 25-35.

DOI: 10.1016/s0008-8846(99)00212-4

[7] Dong Zhang, Xiaoming Huang, Yongli Zhao.Simulation of Indirect Tension Test of Asphalt Mixtures Based on Cohesive Zone Model. Journal of Southeast University,2010,(6): 1276-1281(In Chinese).

[8] hong-wei Ma, li-jun Zhang. Numerical Simulation on the Dynamic Spliting Tensile Test of Concrete[J]. Journal of Ningbo University , 2003,16(4): 349~353.
