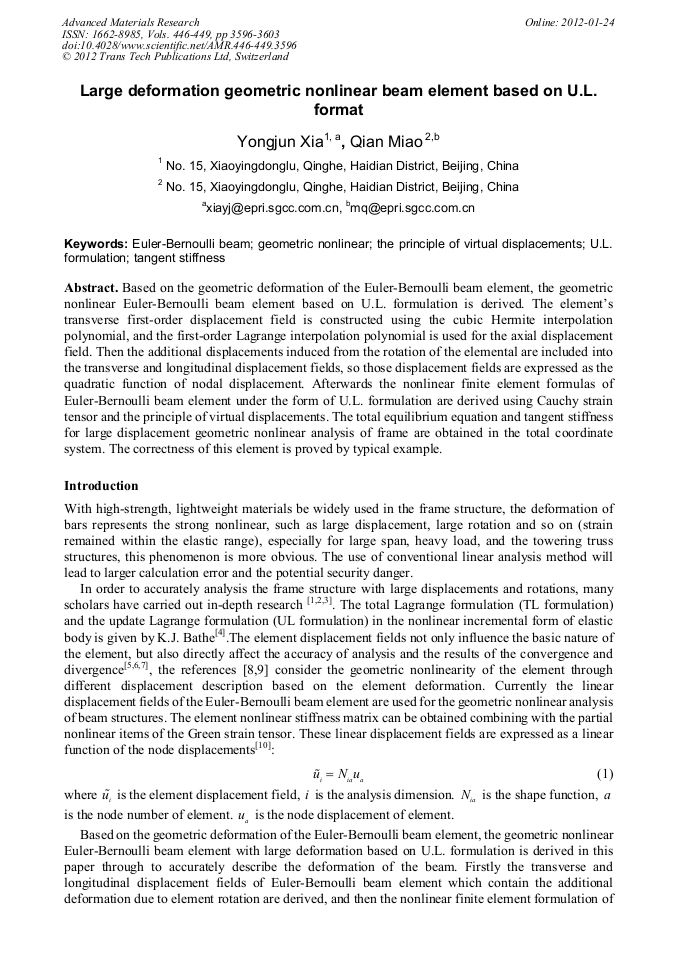

Large Deformation Geometric Nonlinear Beam Element Based on U.L. Format

Abstract:

Based on the geometric deformation of the Euler-Bernoulli beam element, the geometric nonlinear Euler-Bernoulli beam element based on U.L. formulation is derived. The element’s transverse first-order displacement field is constructed using the cubic Hermite interpolation polynomial, and the first-order Lagrange interpolation polynomial is used for the axial displacement field. Then the additional displacements induced from the rotation of the elemental are included into the transverse and longitudinal displacement fields, so those displacement fields are expressed as the quadratic function of nodal displacement. Afterwards the nonlinear finite element formulas of Euler-Bernoulli beam element under the form of U.L. formulation are derived using Cauchy strain tensor and the principle of virtual displacements. The total equilibrium equation and tangent stiffness for large displacement geometric nonlinear analysis of frame are obtained in the total coordinate system. The correctness of this element is proved by typical example.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 3596-3603
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.3596
• Online since: January 2012
• Authors: Yong Jun Xia, Qian Miao
• Keywords: Euler-Bernoulli Beam, Geometric Nonlinear, Principle of Virtual Displacements, Tangent Stiffness, U.L. Formulation

References

[1] Andrea Dall' Asta and Alessandro Zona: Finite Elements in Analysis and Design, Vol. 40 (2004), pp.425-448

[2] M.A. Omar and A.A Shabana: Journal of Sound and Vibration,Vol. 243(3) (2001), p.565~576

[3] J.B. Yang, L.J. Jiang and Chen DCH: Journal of Sound and Vibration, Vol. 274 (2004), p.863~875

[4] K.J. Bathe, in: Finite Element Procedure, New Jersev: Prentice Hall (1996)

[5] Guoping Cai, Jiazhen Hong and SX Yang: Mechanics Research Communications, Vol. 32 (2005), p.173~190

[6] J.S. Chen and C.L. Huang: Journal of Sound and Vibration, Vol. 246 (2001), p.389~402

[7] K.E. Dufva, J.T. Sopanen and A.M. Mikkola: Journal of Sound and Vibration, Vol. 280 (2005), p.719~ 738

[8] Frederic Boyer and Wisama Khalil: Mechanism and Machine Theory, Vol. 34 (1999), p.205~222

[9] Goran Turkalj, Josip Brnic and Jasna Prpic-Orsic: Computers and Structures, Vol. 82 (2004), p.2001~(2013)

DOI: 10.1016/j.compstruc.2003.07.006

[10] Zienkiewicz OC, Taylor RL: The finite element method, Vol. 2. New York: McGraw-Hill, (1991)

[11] Zhida Chen, in: Large deformation theory of link, plane, shell, Beijing: Science Press. (1996) (in Chinese)
