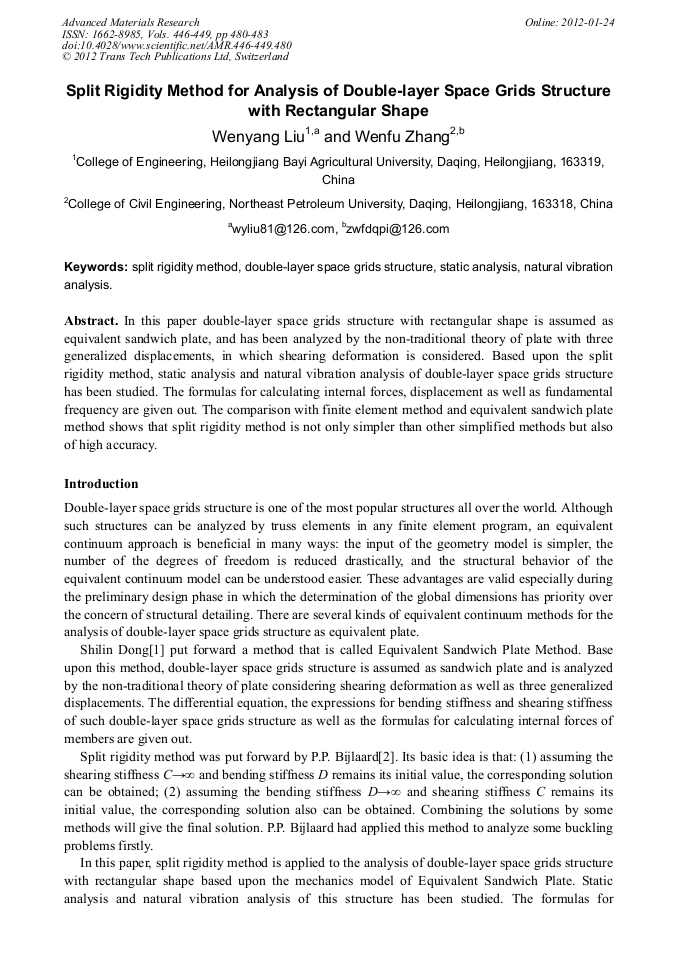

Split Rigidity Method for Analysis of Double-Layer Space Grids Structure with Rectangular Shape

Abstract:

In this paper double-layer space grids structure with rectangular shape is assumed as equivalent sandwich plate, and has been analyzed by the non-traditional theory of plate with three generalized displacements, in which shearing deformation is considered. Based upon the split rigidity method, static analysis and natural vibration analysis of double-layer space grids structure has been studied. The formulas for calculating internal forces, displacement as well as fundamental frequency are given out. The comparison with finite element method and equivalent sandwich plate method shows that split rigidity method is not only simpler than other simplified methods but also of high accuracy.

• Periodical: Advanced Materials Research (Volumes 446-449)
• Pages: 480-483
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.446-449.480
• Online since: January 2012
• Authors: Wen Yang Liu, Wen Fu Zhang
• Keywords: Double-Layer Space Grids Structure, Natural Vibration Analysis, Split Rigidity Method, Static Analysis

References

[1] Shilin Dong and Hengxi Xia: Journal of Building Structures Vol. 3(1982), pp.14-25, in Chinese.

[2] P.P. Bijlaard: Method of Split Rigidities and Its Application to Various Buckling Problems (Cornell University, Washington 1958).

[3] Shilin Dong and Ruojun Qian: Analytic Theory and Computational Method of Space Grids Structures(China Architecture& Building Press, Beijing2000), in Chinese.

[4] Wenyang Liu and Wenfu Zhang: Applied Mechanics and Materials Vol. 71-78, pp.306-309

[5] Wenfu Zhang: Spatial structures (Science Press, Beijing2005), in Chinese.
