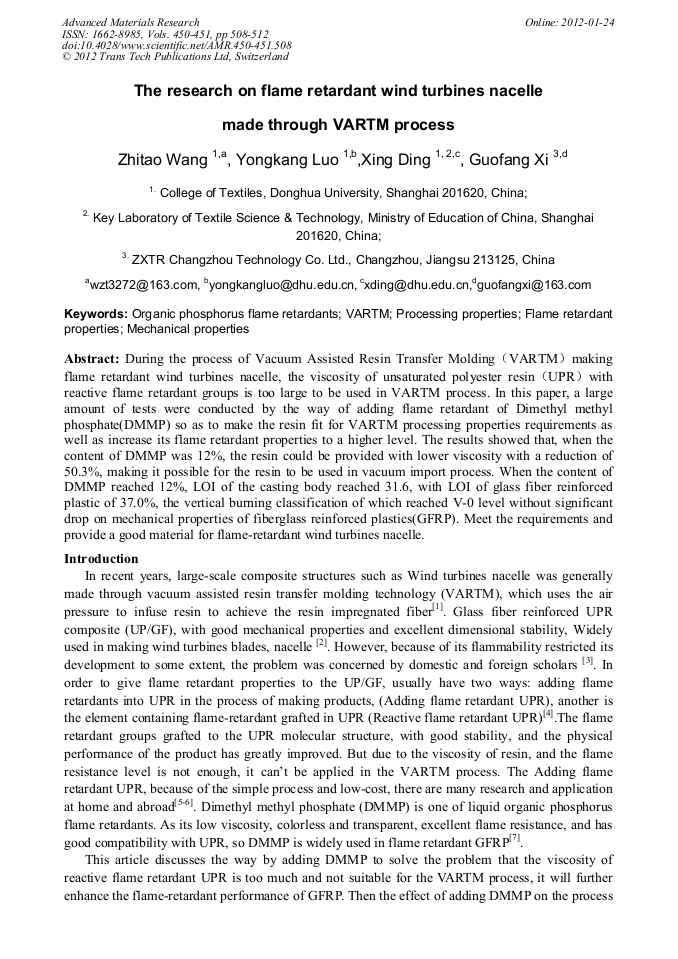

The Research on Flame Retardant Wind Turbines Nacelle Made through VARTM Process

Abstract:

During the process of Vacuum Assisted Resin Transfer Molding（VARTM）making flame retardant wind turbines nacelle, the viscosity of unsaturated polyester resin（UPR）with reactive flame retardant groups is too large to be used in VARTM process. In this paper, a large amount of tests were conducted by the way of adding flame retardant of Dimethyl methyl phosphate(DMMP) so as to make the resin fit for VARTM processing properties requirements as well as increase its flame retardant properties to a higher level. The results showed that, when the content of DMMP was 12%, the resin could be provided with lower viscosity with a reduction of 50.3%, making it possible for the resin to be used in vacuum import process. When the content of DMMP reached 12%, LOI of the casting body reached 31.6, with LOI of glass fiber reinforced plastic of 37.0%, the vertical burning classification of which reached V-0 level without significant drop on mechanical properties of fiberglass reinforced plastics(GFRP). Meet the requirements and provide a good material for flame-retardant wind turbines nacelle.

• Periodical: Advanced Materials Research (Volumes 450-451)
• Pages: 508-512
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.450-451.508
• Online since: January 2012
• Authors: Zhi Tao Wang, Yong Kang Luo, Xing Ding, Guo Fang Xi
• Keywords: Flame-Retardant Property, Mechanical Property, Organic Phosphorus Flame Retardants, Processing Properties, VARTM

References

[1] R J Johnson, R Pitchumani. Composites Science and Technology, 2007,67 : 669–684

[2] Yuanyuan Lian, Guangzhu Feng, Liewen Liao et al.Guangdong Chemical Industry, 2009(10):78-80.

[3] Montestruc Alfred N, Stubblefield Michael A , Su-Seng P, et al. Composites Part B, 1997,28 B : 287-293.

[4] Xiuchen Zhang , Yufeng Wang, Bin Li, et al. Journal of Northeast Forestry University, 2002(11):61-64.

[5] Shuang chun Qi , Liqin Lan , Yan Zhang ,et al. Thermosetting Resin, 2011(11) 61-64.

[6] Wanhua Zhu, Qihuan Liu, Chunjuan Fan ,et al. Insulation Material,2011, 44( 2):13-16.

[7] Lili Cui, Qiao-ling LI, Hongli Han. Contemporary chemical, 2007, 36 (5):512-515.

[8] GB/T 2567-2008,《Test methods for properties of resin casting body》[S].

[9] GB/T 2406-2008,《Plastic combustion test methods-oxygen index method》[S].

[10] GB/T 2408-2008,《Determination of flammability of plastic-the level and the vertical method》[S].

[11] GB/T7193-2008,《Unsaturated polyester resin test methods》[S].

[12] GB/T1447-2005,《fiber reinforced plastic tensile test experimental methods》[S].

[13] GB/T1449-2005,《bending properties of fiber reinforced plastics testing laboratory method》[S].

[14] Haijun Lu, Xiaoyan Ma, Hongxia Yan. Chemical New Materials, 2001, 29 (12): 7-10.

[15] Chen Zhang, Shumei Liu, Junyi Huang. Petrochemical, 2009,38 (5): 515--520.

[16] FashengSun ,Yuquan Li , YanTian, et al. Polyurethane Industry, 2008, 18 (4): 18-21

[17] Y WEI, H Yuan, L T Qi, et al . Composites: Part B, 2011:1057-1065.
