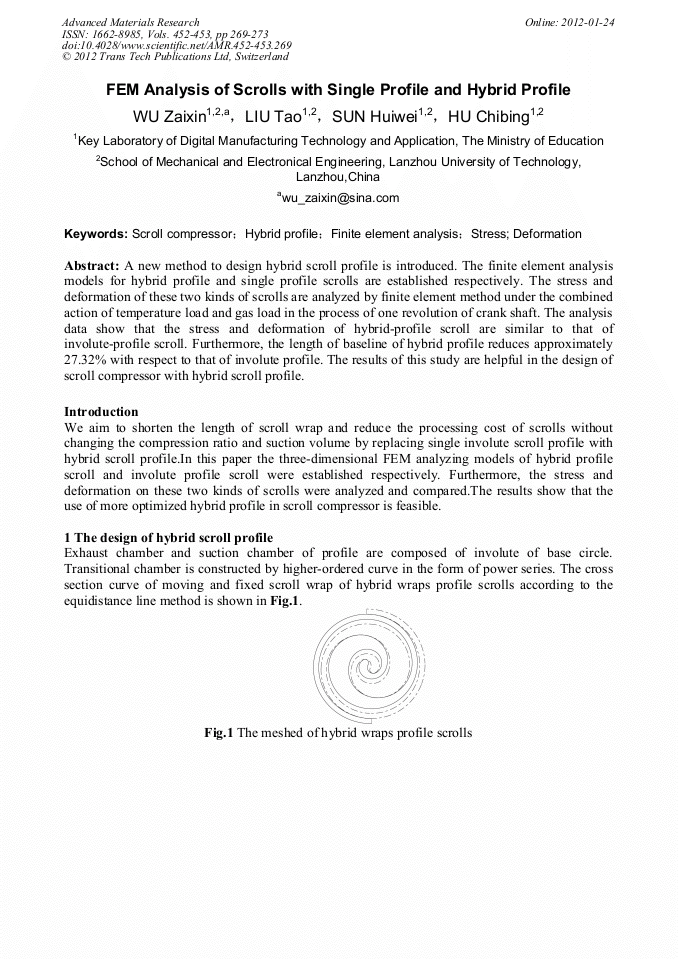

FEM Analysis of Scrolls with Single Profile and Hybrid Profile

Abstract:

A new method to design hybrid scroll profile is introduced. The finite element analysis models for hybrid profile and single profile scrolls are established respectively. The stress and deformation of these two kinds of scrolls are analyzed by finite element method under the combined action of temperature load and gas load in the process of one revolution of crank shaft. The analysis data show that the stress and deformation of hybrid-profile scroll are similar to that of involute-profile scroll. Furthermore, the length of baseline of hybrid profile reduces approximately 27.32% with respect to that of involute profile. The results of this study are helpful in the design of scroll compressor with hybrid scroll profile.

• Periodical: Advanced Materials Research (Volumes 452-453)
• Pages: 269-273
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.452-453.269
• Online since: January 2012
• Authors: Zai Xin Wu, Tao Liu, Hui Wei Sun, Chi Bing Hu
• Keywords: Deformation, Finite Element Analysis (FEA), Hybrid Profile, Scroll Compressor, Stress

References

[1] LIUW Tao and WU Hu. Otimization of Hybrid Scroll Wraps Based on MATLAB Genetic Algorithm Toolbox. Fluid Machinery, 38(2010), pp.24-26.

[2] WU Zai Xin and DU Wen Wu. Design of Involute-higher Curve Combined Profile for Scroll Compressor and Finite Element Analysis. Compressor Technology, 02(2011), pp.05-09.

[3] ZHANG Li Qun and LIU Zhen Quan. Research on Displacement of the Fixed Scroll of Compressor under the Actual Conditions. Fluid Machinery, 28(2000), pp.18-20.

[4] LIU Tao, WU Zai Xin and LIU Zhen Quan. Study on Generating Profile with Nomal-Equidistant-Curve Method for Scroll Compressor. Journalof Mechanical Engnieering, 40(2004), pp.55-58.

DOI: 10.3901/jme.2004.06.055

[5] ZHAO Shu Feng, CHEN Xu and TIAN Tao. Analyses 0f Stress and DefOrmatiOn of the Orbiting Scroll of a Scroll Cmpressor. Chemical Machinery, 30(2003), pp.17-20.

[6] JIN Dan, CHEN Xu. Stress and Deformation Analysis of Orbiting Scroll in Scroll Compressor under Inhomogeneous Temperature Field. Fluid Machinery, 31(2003), pp.11-13.

[7] SI Yu Bao, QU Zong Chang and Wang Di Sheng. Research on Dynamical Performance of Scroll Compressor's Profile. Joyrnal of XI' AN Jiao Tong University, 34(2000).

[8] YUAN Rong Hua, LI Lian Sheng and WANG Guo Liang. Structure Design of Orbiting Scroll Based on Three-Dimension Finite Element Analysis. Fluid Machinery, 321(2004).

[9] LANG Xian Ming. Stress and Displacement Analysis for Fixed Scroll Based on FEA[D]. Dalian: Dalian University of Technology(2007).

[10] CHEN Ya Juan. Working volume and dynamic characteristic of new combination profile scroll compressor[D]. Chong Qing: Chong Qing University(2006).
