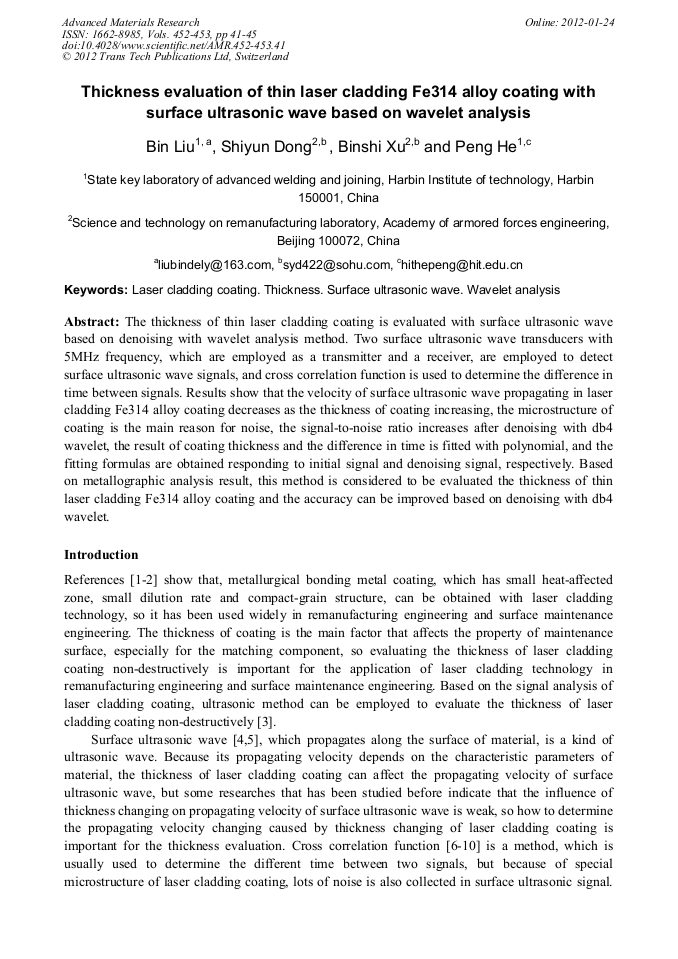

Thickness Evaluation of Thin Laser Cladding Fe314 Alloy Coating with Surface Ultrasonic Wave Based on Wavelet Analysis

Abstract:

The thickness of thin laser cladding coating is evaluated with surface ultrasonic wave based on denoising with wavelet analysis method. Two surface ultrasonic wave transducers with 5MHz frequency, which are employed as a transmitter and a receiver, are employed to detect surface ultrasonic wave signals, and cross correlation function is used to determine the difference in time between signals. Results show that the velocity of surface ultrasonic wave propagating in laser cladding Fe314 alloy coating decreases as the thickness of coating increasing, the microstructure of coating is the main reason for noise, the signal-to-noise ratio increases after denoising with db4 wavelet, the result of coating thickness and the difference in time is fitted with polynomial, and the fitting formulas are obtained responding to initial signal and denoising signal, respectively. Based on metallographic analysis result, this method is considered to be evaluated the thickness of thin laser cladding Fe314 alloy coating and the accuracy can be improved based on denoising with db4 wavelet.

• Periodical: Advanced Materials Research (Volumes 452-453)
• Pages: 41-45
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.452-453.41
• Online since: January 2012
• Authors: Bin Liu, Shi Yun Dong, Bin Shi Xu, Peng He
• Keywords: Laser Cladding Coating, Surface Ultrasonic Wave, Thickness, Wavelet Analysis

References

[1] Ming Xie. Jour. of Shaoyang Univers. Vol. 9 (2004), p.47 [In Chinese].

[2] Peng Fan, Wei Yi, Changqiong Zheng. Jour. of Chin. Rare Earth Soci. Vol. (1999), p.46 [In Chinese].

[3] Ruo Feng, Jinzhong Yao, Lixun Guan: Ultrasonic Manu. (Nanjing Univers. Publication, Nanjing 1999).

[4] Lianfang Zhang, Weiping Ke. Phy. Experim. Vol. 2(2006), p.8 [In Chinese].

[5] Hayes M, Rivlin RS. Arch. for Ratio. Mechan. and Analy. Vol. 8(1961), p.359.

[6] Zhengyi Wu: Testing technology and signal analysis (Qinghua Univers. Publication, Beijing 2001).

[7] Fedi M. Pure and Appl. Geophys. Vol. 157(2000), p.1463.

[8] Perov D V, Rinkevich A B. Russ. Jour. of Nondestruct. Test. Vol. 38(2002), p.869.

[9] Lifang Li, Qinghua Liu. Audio Engineer. Vol. 32(2008), p.57 [In Chinese].

[10] Zhaolin Wen, Xin Chen, Detao Zheng. Jour. of Guangzhou Marit. Coll. Vol. 14(2006), p.29.

[11] Hong Yi. Sichuan Univers. of Arts and Scie. Jour. Vol. 18(2008), p.33 [In Chinese].

[12] Jinghuai Gao, Wenbing Wang, Guangming Zhu, et al. Chin. Jour. of Geophys. Vol. 39(1996), p.392 [In Chinese].
