Mechanism Analysis of Jet Drilling Rock by Numerical Simulation and Experiment

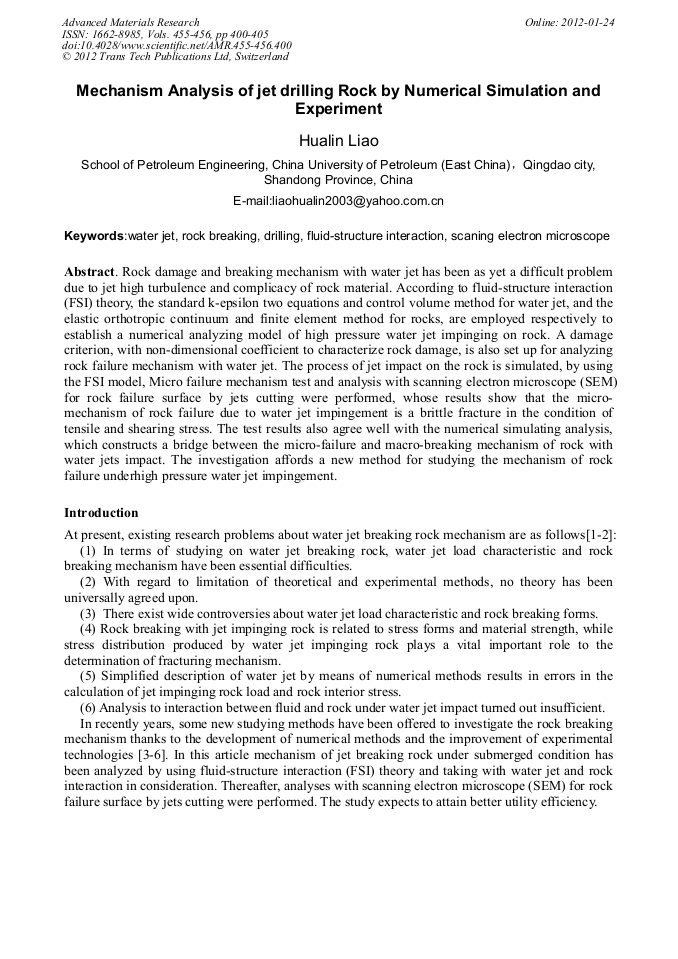

Abstract:

Rock damage and breaking mechanism with water jet has been as yet a difficult problem due to jet high turbulence and complicacy of rock material. According to fluid-structure interaction (FSI) theory, the standard k-epsilon two equations and control volume method for water jet, and the elastic orthotropic continuum and finite element method for rocks, are employed respectively to establish a numerical analyzing model of high pressure water jet impinging on rock. A damage criterion, with non-dimensional coefficient to characterize rock damage, is also set up for analyzing rock failure mechanism with water jet. The process of jet impact on the rock is simulated, by using the FSI model, Micro failure mechanism test and analysis with scanning electron microscope (SEM) for rock failure surface by jets cutting were performed, whose results show that the micro-mechanism of rock failure due to water jet impingement is a brittle fracture in the condition of tensile and shearing stress. The test results also agree well with the numerical simulating analysis, which constructs a bridge between the micro-failure and macro-breaking mechanism of rock with water jets impact. The investigation affords a new method for studying the mechanism of rock failure underhigh pressure water jet impingement.

• Periodical: Advanced Materials Research (Volumes 455-456)
• Pages: 400-405
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.455-456.400
• Online since: January 2012
• Authors: Hua Lin Liao
• Keywords: Drilling, Fluid Structure Interaction (FSI), Rock breaking, Scanning Electron Microscope (SEM), Water Jet

References

[1] Liao Hualin, and Xiong Wei. Development of Ultra-high Pressure Water Jet-assisted Drilling Technology. Chinese J Rock Mech &Eng, 2002, 21(2): 2583-2587.

[2] Liao Hualin, Li Gensheng, Yi Can. Advance in Study on Theory of Rock Breaking under Water Jet Impact. Journal of Metal Mine, 2005, (349) : 1-5.

[3] S-W. Kang, T. Reitter and G. Carlson. Target Responses to the Impact of High-Velocity, Non-Abrasive Water Jets[C]. 7th American Water Jet Conference. Washington, U.S. A, August, 1993, 71-86.

[4] M. Agus, A. Bortolussi, R. Ciccu, et al. The Influence of Rock Properties on Waterjet Performance[C]. Pro. of 7th American Water Jet Conference, Seattle, Washington, August, 1993, 427-442.

[5] T. Mabrouki, K. Raissi and A. Cornier. Simulation and Experimental Study of the Interaction between High Velocity Waterjet and Targets: Contribution to Investigate the Decoating Processing[J]. Wear, 2000(239): 260-73.

DOI: 10.1016/s0043-1648(00)00333-1

[6] L.M. Hlavág, I.M. Hlavágová, M. Kušnerová. Research of Water Jet Interation with Submerged Rock Materials[C]. 11th American Waterjet Conference, Minneapolis, Minnesota, U.S. A 2001: 1-8.

[7] Liao, Hualin., Li Gensheng,. Fluid-structure Interaction of High Pressure Water Jets Impinging on Rock [J]. Journal of Hydrodynamics, 2004, 19(4): 453-457.

[8] Shen Zhonghou. Water Jet Theory and Technology [M]. Press University of Petroleum, Dongying, Shandong, China, (1998).

[9] Xie, Heping, and Cheng Zhida. Micro-mechanism Analysis of Rock Fracture [J]. Journal of China Coal Society, 1989, 14(2): 57-66.

[10] Liu Xiaoming., Lee Cuofen. Micro failure Mechanism Analysis and Test Study for Rock Failure Surface [J]. Chinese Journal of Rock Mechanics & Engineering, 16(6), 1997, pp.509-513.

[11] Feng Tao., Xie Xuebing., Pan Changliang. Fracture Mechanism Analysis for Burst Rock with Electron Scanning Microscope [J]. Journal of Central South University Technology (Natural Science), 1999 30(2): 14-17.

[12] TAN Yian. Analysis of Fractured Face of Rock Burst with Scanning Electron Microscope and Its Progressive Failure Process [J]. Journal of Electron Microscope, 1989, 8(2) ：41-47.
