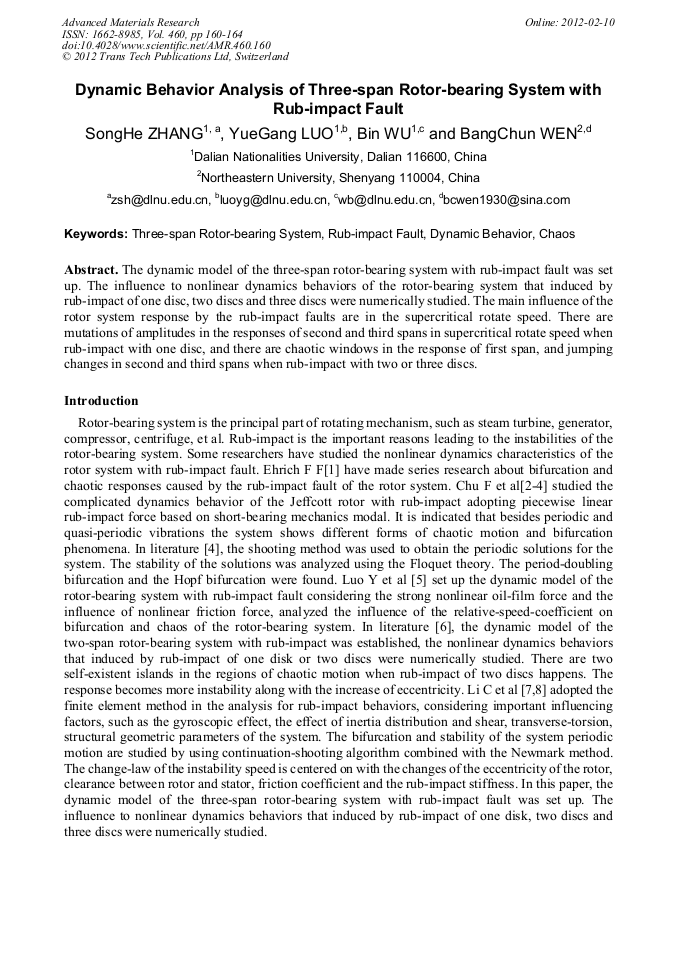

Dynamic Behavior Analysis of Three-Span Rotor-Bearing System with Rub-Impact Fault

Abstract:

The dynamic model of the three-span rotor-bearing system with rub-impact fault was set up. The influence to nonlinear dynamics behaviors of the rotor-bearing system that induced by rub-impact of one disc, two discs and three discs were numerically studied. The main influence of the rotor system response by the rub-impact faults are in the supercritical rotate speed. There are mutations of amplitudes in the responses of second and third spans in supercritical rotate speed when rub-impact with one disc, and there are chaotic windows in the response of first span, and jumping changes in second and third spans when rub-impact with two or three discs.

• Periodical: Advanced Materials Research (Volume 460)
• Pages: 160-164
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.460.160
• Online since: February 2012
• Authors: Song He Zhang, Yuegang Luo, Bin Wu, Bang Chun Wen
• Keywords: Chaos, Dynamic Behavior, Rub-Impact Fault, Three-Span Rotor-Bearing System

References

[1] Ehrich F F: Nonlinear phenomena in dynamic response of rotors in anisotropic mounting systems, ASME Journal of Vibration and Acoustics, Vol. 117(1995), pp.154-161.

DOI: 10.1115/1.2838657

[2] Chu F, Zhang Z, Feng G: Chaotic behavior of a rub rotor model, Journal of Tsinghua University (Sci & Tech), Vol. 36(1996), pp.52-57.

[3] Chu F, Zhang Z: Periodic, quasi-periodic and chaotic vibrations of a rub-impact rotor system supported on oil film bearings, International Journal of Engineering Science, , Vol. 35(1997), pp.963-973.

DOI: 10.1016/s0020-7225(97)89393-7

[4] Chu F, Tang X, Tang Y: Stability of a rub-impact rotor system, Journal of Tsinghua University (Sci & Tech), Vol. 40(2000), pp.119-123.

[5] Luo Y, Jin Z, Liu C, et al: Effects of nonlinear friction force on the chaos motion of rotor-bearing system with rub-impact fault, Journal of Northeastern University, Vol. 24(2003), pp.843-846.

[6] Luo Y, Zhang S, Wen B: Study on nonlinear response and chaos of two-span rotor-bearing system with rub-impact fault, Mechanical Science and Technology for Aerospace Engineering, Vol. 27(2008), pp.1271-1274.

[7] Li C, Li X, Ma H, et al: The nonlinear dynamic behavior of a rotor-bearing system with rub-impact by a continuous model, Journal of Vibration Engineering, Vol. 22(2009), pp.395-399.

[8] Li C, Li H, Ma H, et al: Bifurcation and stability of the flexible rotor-bearing system with rub-impact by a continuum model, Journal of Mechanical Engineering, Vol. 46(2010), pp.107-113.

DOI: 10.3901/jme.2010.11.107
