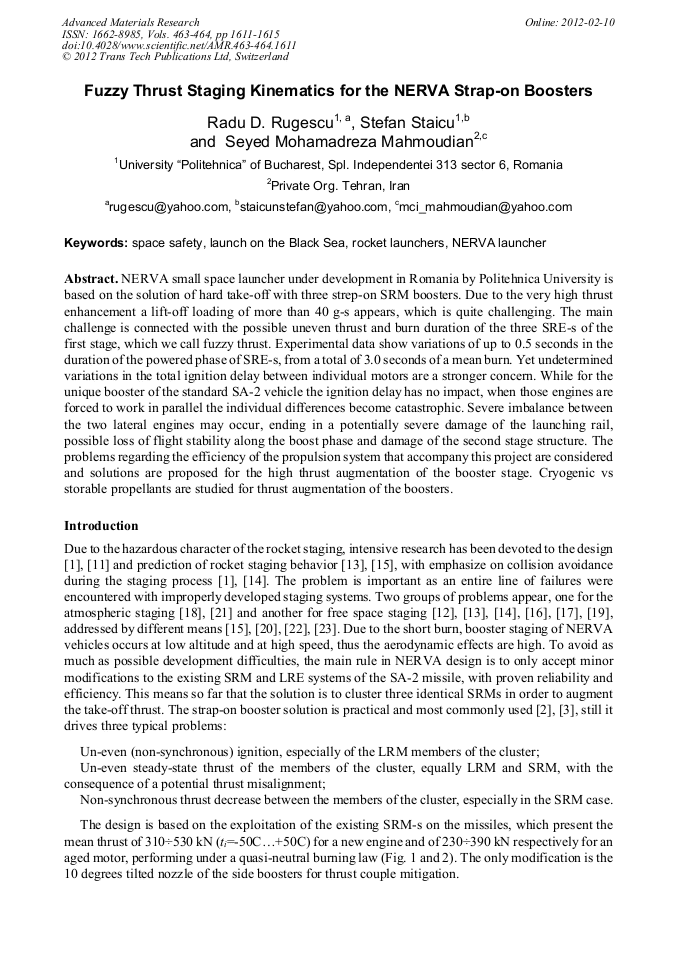

Fuzzy Thrust Staging Kinematics for the NERVA Strap-On Boosters

Abstract:

NERVA small space launcher under development in Romania by Politehnica University is based on the solution of hard take-off with three strep-on SRM boosters. Due to the very high thrust enhancement a lift-off loading of more than 40 g-s appears, which is quite challenging. The main challenge is connected with the possible uneven thrust and burn duration of the three SRE-s of the first stage, which we call fuzzy thrust. Experimental data show variations of up to 0.5 seconds in the duration of the powered phase of SRE-s, from a total of 3.0 seconds of a mean burn. Yet undetermined variations in the total ignition delay between individual motors are a stronger concern. While for the unique booster of the standard SA-2 vehicle the ignition delay has no impact, when those engines are forced to work in parallel the individual differences become catastrophic. Severe imbalance between the two lateral engines may occur, ending in a potentially severe damage of the launching rail, possible loss of flight stability along the boost phase and damage of the second stage structure. The problems regarding the efficiency of the propulsion system that accompany this project are considered and solutions are proposed for the high thrust augmentation of the booster stage. Cryogenic vs storable propellants are studied for thrust augmentation of the boosters.

• Periodical: Advanced Materials Research (Volumes 463-464)
• Pages: 1611-1615
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.463-464.1611
• Online since: February 2012
• Authors: Radu Dan Rugescu, Stefan Staicu, Seyed Mohamadreza Mahmoudian
• Keywords: Launch on the Black Sea, NERVA Launcher, Rocket Launchers, Space Safety

References

[1] V. Pisacane' Fundametals of space systems, second edition, (2005).

[2] ** SpaceX Excellent Engineers Wanted, Aviation Week and Space Technology, Sept. 25, 2006, p.67.

[3] Sarigul-Klijn, M., Sarigul-Klijn, N., Morgan, B., Tighe, J., Leon, A., Hudson, G. & McKinney, B., Gump, D., Flight Testing of a New Air Launch Method for Safely Launching Personnel and Cargo into LEO, AIAA-2006-1040.

DOI: 10.2514/6.2006-1040

[4] ** NASA signes agreement with t/Space, accessed 02/01/(2007).

[5] http: /www. nasa. gov/home/hqnews/2007/feb/HQ_0720_COTS_agreements. html.

[6] D A Heald & T L Kessler, Single Stage to Orbit Vertical Takeoff and Landing Concept Technology Challenges, IAF-91-205.

[7] Wernher von Braun, Koelle, Heinz Hermann, Handbook of Astronautical Engineering, McGraw-Hill, N.Y., (1959).

[8] Lindberg, Robert E., Overview of the Pegasus Air-Launched Space Booster, SAE, Aerospace Technology Conference and Exposition, Anaheim, CA, Sept. 25-28, (1989).

DOI: 10.4271/892308

[9] Kohno, Wasahiro; Makino, Takashi; Nagao, Yosuke; Hirose, Hidehiro, Conceptual study of air-launch small satellite launcher system, Space Sciences and Technology Conference, 35th, Nagaoka, Japan, Oct. 28-31, 1991, Proceedings (A93-56251 24-12), pp.121-122.

[10] Dr Julian Simon, The Aquarius, a proposal for a nano-satellites launcher vehicle, INTA, Torrej´on de Ardoz, Paper IAC-06-B5. 5. 05, Proceedings of the 57th IAC Congress, Valencia, Spain, Oct. 02-06, (2006).

DOI: 10.2514/6.iac-06-b5.5.07

[11] ** Article in the newspaper The Moskow Times on-line, accessed on 09. 10. 2010 http: /www. themoscowtimes. com/business/article/an-orbiting-hotel-to-greet-space-tourists/417850. html#no.

[12] Bigelow Aerospace page http: /www. bigelowaerospace. com.

[13] Chubb, W. (1961), The collision boundary between the two separating stages of the SA-4 Saturn vehicle. NASA-TND-598, August (1961).

[14] Mitchell, D. H, and Palmer, G. D. (1966), Analysis and simulation of a high accuracy spacecraft separation system, Journal of Spacecraft and Rockets, 3 (4), 458–463.

DOI: 10.2514/3.28476

[15] Ball, K. J, and Osborne, G. F. (1967), Space vehicle dynamics, Oxford, Oxford University Press.

[16] Mitchell, D. H. (ed., 1970), Flight Separation Mechanisms, NASA SP-8056, Langley Research Center, Hampton, VA 23365, Oct. (1970).
