A Theoretical Study of the Internal Forces in a Hydraulic Vane Pump with Hypertrochoid Curve in the Inner Surface of its Stator

Abstract:

In the latest our works, Performance of a fixed displacement- hydraulic balance vane pump, theoretically and practically was studied by application of the basic hypertrochoid curve in the inner surface of its stator. Also the effect of the inertia force of the vanes on the performance of the pump with this curve was studied. This study presents a theoretical analysis of the internal pressure distribution in the pump, and of the resulting forces and torques applied to its components. This analysis is essential to the study of the pump dynamics and control, the pump design, and selection of the pump bearings. These forces are shown to be a function of the line pressure, the shaft rotational speed, the fluid bulk modulus, the fluid viscosity, and the design geometry. These forces are composed of two components: a continuous component due to the exposure of chambers to the line port, and an intermittent component due to a hydraulic lock phenomenon.

You might also be interested in these eBooks

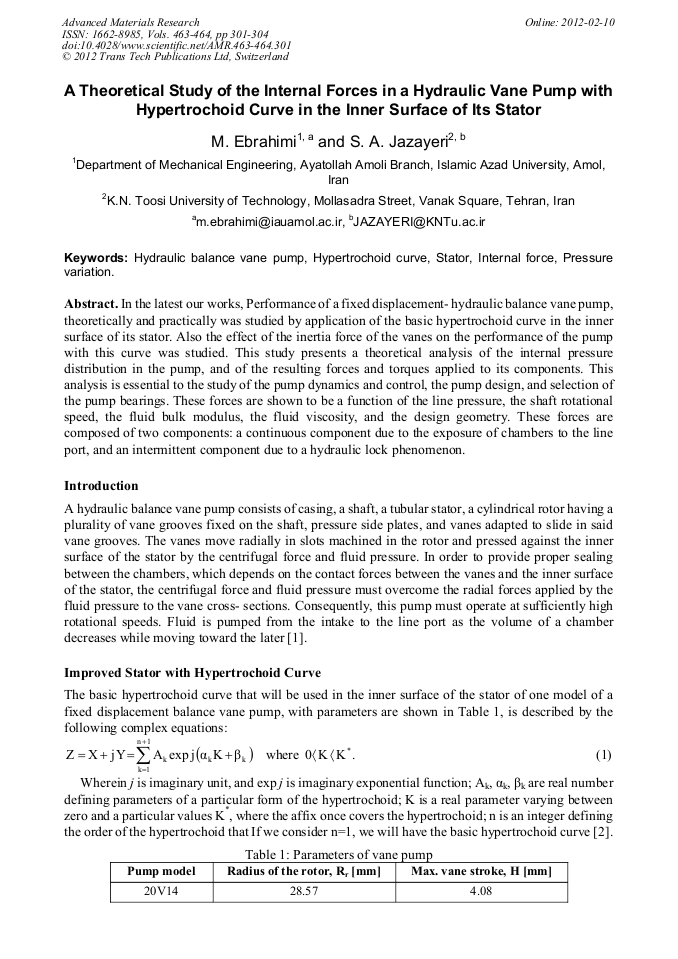

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 463-464)

Pages:

301-304

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.463-464.301

Citation:

Cite this paper

Online since:

February 2012

Authors:

M. Ebrahimi, Seyed Ali Jazayeri

Keywords:

Hydraulic Balance Vane Pump, Hypertrochoid Curve, Internal Force, Pressure Variation, Stator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J. Pippenger, T.G. Hicks: Industrial hydraulics (Mc Graw-Hill Publications, 1980).

Google Scholar

[2] A. Leroy, J. Mons and B. Flamme, U.S. Patent 4, 556, 372. (1985).

Google Scholar

[3] A.M. Karmel: A study of the internal forces in a variable- displacement vane pump part I: A theoretical analysis, J. Fluids Eng., vol. 108 (1986), p.227.

DOI: 10.1115/1.3242567

Google Scholar

[4] M. Ebrahimi and S.A. Jazayeri: A study of the effect of the inertia force of the vanes on the performance of the hydraulic vane pump with hypertrochoid curve in the inner surface of its stator, Fifth international conference on optimization of the ROBOTS and MANIPULATORS (OPTIROB2010), Romania (2010).

DOI: 10.4028/www.scientific.net/amr.463-464.297

Google Scholar

[5] S.A. Jazayeri and M. Ebrahimi: Application of the hypertrochoid curve in the inner surface of the stator of hydraulic balance vane pump, 11th annual conference (International) of mechanical engineering (ISME 2003), Iran, vol. 5 (2003), p.442.

DOI: 10.4028/www.scientific.net/amr.463-464.301

Google Scholar
