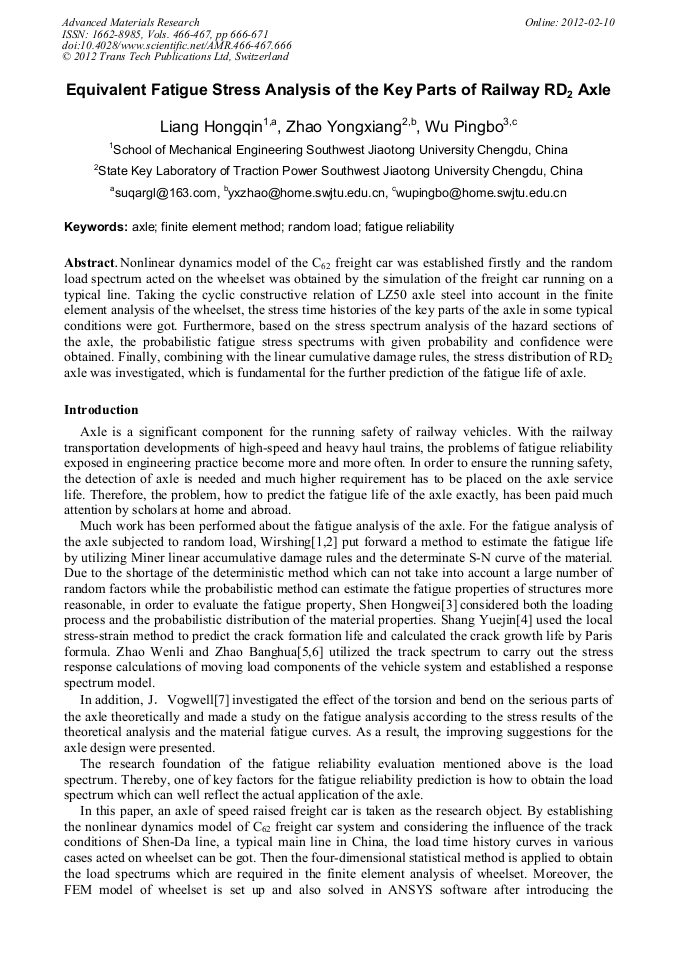

Equivalent Fatigue Stress Analysis of the Key Parts of Railway RD₂ Axle

Abstract:

Nonlinear dynamics model of the C₆₂ freight car was established firstly and the random load spectrum acted on the wheelset was obtained by the simulation of the freight car running on a typical line. Taking the cyclic constructive relation of LZ50 axle steel into account in the finite element analysis of the wheelset, the stress time histories of the key parts of the axle in some typical conditions were got. Furthermore, based on the stress spectrum analysis of the hazard sections of the axle, the probabilistic fatigue stress spectrums with given probability and confidence were obtained. Finally, combining with the linear cumulative damage rules, the stress distribution of RD₂ axle was investigated, which is fundamental for the further prediction of the fatigue life of axle.

• Periodical: Advanced Materials Research (Volumes 466-467)
• Pages: 666-671
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.466-467.666
• Online since: February 2012
• Authors: Hong Qin Liang, Yong Xiang Zhao, Ping Bo Wu
• Keywords: Axle, Fatigue Reliability, Finite Element Method (FEM), Random Load

References

[1] Wirshing PH: Fatigue under wide band random stress using rainflow method. Jengng Mater Tech Trans ASME 1977;99.

[2] Wirshing PH et al: Fatigue under wide band random stress. Struct Eng ASME 1980 Vol.106.

[3] Hongwei Shen, Jizhong Lin and Ensheng Mu: Probabilistic model on stochastic fatigue damage. International Journal of Fatigue, 2000; Vol.22: 569-572.

DOI: 10.1016/s0142-1123(00)00030-x

[4] Shang Yuejin and Zhao Banghua: Predition and analysis of the reliability of the fatigue life of a freight car's shaft. Journal of Lanzhou Railway University. 1997; Vol. 16. No.2: 83-88.

[5] Zhao Wenli, Li Zhongxue and Zhao banghua: Calculation of Vehicle Random Response and Prediction of Axle Fatigue Life. Journal of the China Railway Society. 1998; Vol.20.No.4: 120-125.

[6] Zhao Wenli and Zhao banghua: The Fatigue Life Predicting about Axle of Passenger Coach. Journal of Gansu Sciences. 1994; Vol.6.No.1: 3-57.

[7] J.Vogwell: Analysis of a vehicle wheel shaft faiure. Engineering Failure Analysis, 1998; Vol. 5. No.4: . (7-11.)

[8] LIANG Hong-qin, WU Ping-bo and GUAN Xue-mei. Fatigue stress calculation of freight car axle under random loads[J]. Machinery, 2004, 31(4): 36-39. (in Chinese)

[9] Zhao Yongxiang and Zhang Zhiwen: A Probabilistic approach of evaluating crane's metallic structure allowable stress. Journal of Mechanical Strength. 1994; Vol.16.No.1: 61-64.

[10] Zhao Yongxiang, Yangbing, Sun Yafang, et al: Probability-based Cyclic Constitution Models For LZ50 Axle Steel. Chinese Journal of Mechanical Engineering. 2004, 40(9): 48-53.

DOI: 10.3901/jme.2004.09.048
