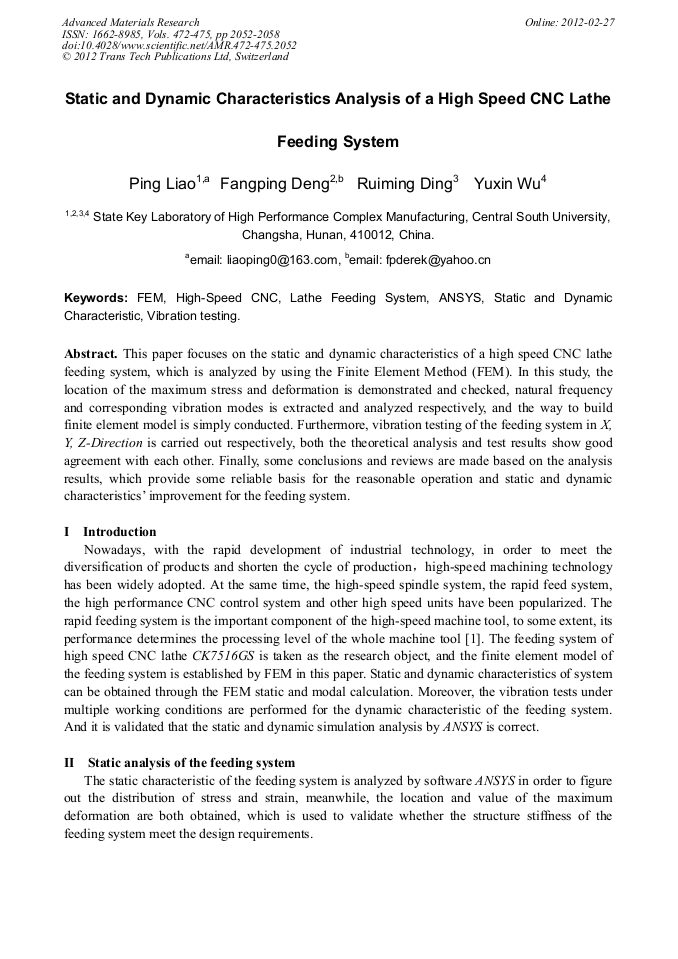

Static and Dynamic Characteristics Analysis of a High Speed CNC Lathe Feeding System

Abstract:

This paper focuses on the static and dynamic characteristics of a high speed CNC lathe feeding system, which is analyzed by using the Finite Element Method (FEM). In this study, the location of the maximum stress and deformation is demonstrated and checked, natural frequency and corresponding vibration modes is extracted and analyzed respectively, and the way to build finite element model is simply conducted. Furthermore, vibration testing of the feeding system in X, Y, Z-Direction is carried out respectively, both the theoretical analysis and test results show good agreement with each other. Finally, some conclusions and reviews are made based on the analysis results, which provide some reliable basis for the reasonable operation and static and dynamic characteristics’ improvement for the feeding system.

• Periodical: Advanced Materials Research (Volumes 472-475)
• Pages: 2052-2058
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.472-475.2052
• Online since: February 2012
• Authors: Ping Liao, Fang Ping Deng, Rui Ming Ding, Yu Xin Wu
• Keywords: ANSYS, Finite Element Method (FEM), High-Speed CNC, Lathe Feeding System, Static and Dynamic Characteristic, Vibration Testing

References

[1] Deping Liu, Hang Zhang, Zheng Tao and Yufeng Su: Finite Element Analysis of High-Speed Motorized Spindle Based on Ansys. The Open Mechanical Engineering Journal. Vol. 5(2011)，pp.1-10.

DOI: 10.2174/1874155x01105010001

[2] Weiguang Li, Hongbin Pu, Quanquan Liu, Gang Chen and Song Zhang: ANSYS-based dynamic analysis of high-speed motorized spindle. 2009 International Conference on Computer Engineering and Technology, 445 Hoes Lane - P.O. Box 1331, Piscataway, NJ 08855-1331, United States. pp.336-340. (2009).

DOI: 10.1109/iccet.2009.41

[3] Cao Y Z, Altintas Y: A general method for the modeling of spindle-bearing systems. ASME, Journal of Mechanical Design 2004, 126. pp.1089-1104.

DOI: 10.1115/1.1802311

[4] [US]S. S Raul: Application of Finite Element Method in Engineering Practice (China Sciences Publishing House, BeiJing 1991).

[5] S.G. Kim, S.H. Jang, H.Y. Hwang, and Y.H. Choi: Analysis of Dynamic Characteristics and Evaluation of Dynamic Stiffness of a 5-Axis Multi-tasking Machine Tool by using F.E. M and Exciter Test. International Conference on Smart Manufacturing Application, KINTEX, Gyeonggi-do, Korea. pp.565-569. (2008).

DOI: 10.1109/icsma.2008.4505589

[6] Ping Zhao, Huadong Yu, Mei Cai and Meng Li: Static and Dynamic Analysis of High Speed Small Size Motorized Spindle. IEEE International Conference on Mechatronics and Automation, xi'an, China. pp.1543-1547. (2010).

DOI: 10.1109/icma.2010.5589155

[7] C. C Cheng and J.S. Shiu: Transient vibration analysis of and high-speed feed drive system. Journal of Sound and Vibration 2001, 239(3). pp.489-504.

DOI: 10.1006/jsvi.2000.3142
