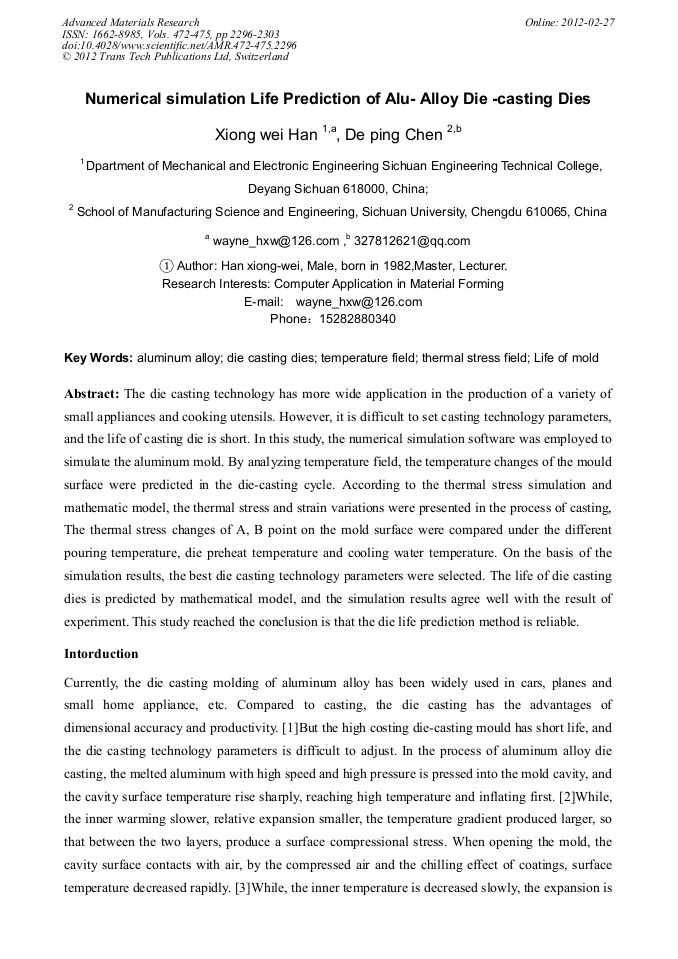

Numerical Simulation Life Prediction of Alu- Alloy Die -Casting Dies

Abstract:

Abstract: The die casting technology has more wide application in the production of a variety of small appliances and cooking utensils. However, it is difficult to set casting technology parameters, and the life of casting die is short. In this study, the numerical simulation software was employed to simulate the aluminum mold. By analyzing temperature field, the temperature changes of the mould surface were predicted in the die-casting cycle. According to the thermal stress simulation and mathematic model, the thermal stress and strain variations were presented in the process of casting, The thermal stress changes of A, B point on the mold surface were compared under the different pouring temperature, die preheat temperature and cooling water temperature. On the basis of the simulation results, the best die casting technology parameters were selected. The life of die casting dies is predicted by mathematical model, and the simulation results agree well with the result of experiment. This study reached the conclusion is that the die life prediction method is reliable.

• Periodical: Advanced Materials Research (Volumes 472-475)
• Pages: 2296-2303
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.472-475.2296
• Online since: February 2012
• Authors: Xiong Wei Han, De Ping Chen
• Keywords: Aluminium Alloy, Die Casting Die, Life of Mold, Temperature Field, Thermal Stress Field

References

[1] Pehlke R D. Unidirectional analysis of heat transfer during continu-ous casting. Metal Eng Quart, 1964, 4(1): 42―47

[2] Pehlke R D, Berry J T. Heat transfer at the mold/metal interface in permanent mold casting of light alloys. In: Advances in Aluminum Casting Technology II. United States: ASM International, (2002)

DOI: 10.2172/861448

[3] R. Ebner, H. Leitner, F. Jeglitsch, D. Caliskanoglu: Proceedings of 5th International Conference on Tooling, Leoben, (1999) 3 – 12.

[4] Guo Z P, Xiong S M, Cho S H, et al. Development of an inverse heat transfer model and its application in the prediction of the interfacial heat flux. Acta Metall Sin, 2007, 43(5): 607―611

[5] Guo Z P, Xiong S M, Cho S H, et al. Effects of alloy material and process parameters on the heat transfer coefficient at metal/die interface in high pressure die casting. Acta Metall Sin, 2008, 44(4): 433―439

[6] W. Young: 10th SDCE International Die Casting Exposition & Congress, Paper No. G-T79-092, St.Louis, (1979) 1 - 8.

[7] S. Kalpakjian: Tool and Die Failures - Source Book, ASM International, Metals Park, Ohio, 1982.
