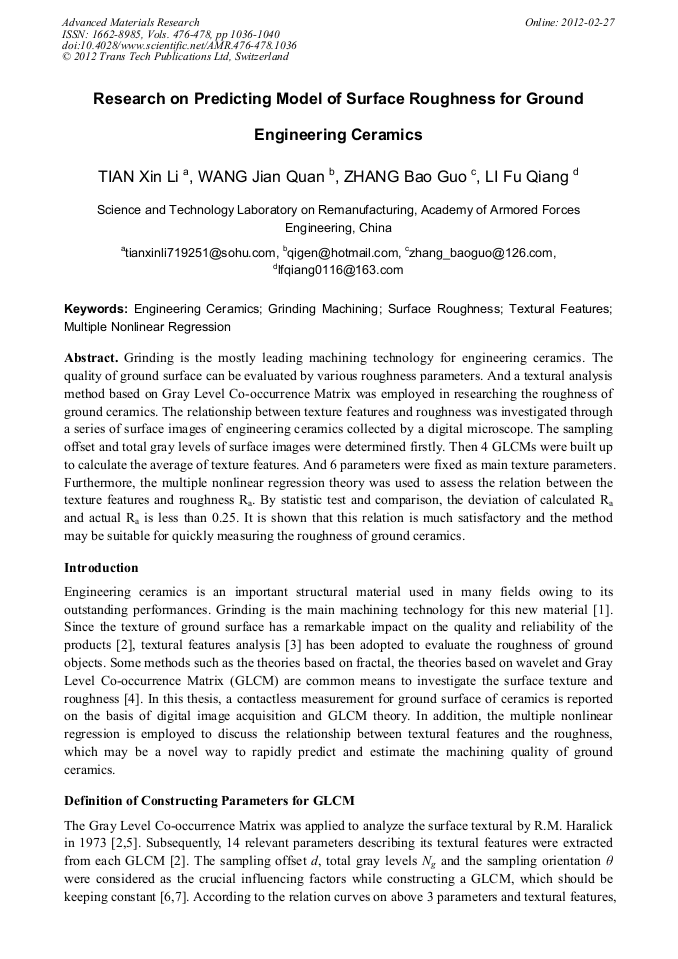

Research on Predicting Model of Surface Roughness for Ground Engineering Ceramics

Abstract:

Grinding is the mostly leading machining technology for engineering ceramics. The quality of ground surface can be evaluated by various roughness parameters. And a textural analysis method based on Gray Level Co-occurrence Matrix was employed in researching the roughness of ground ceramics. The relationship between texture features and roughness was investigated through a series of surface images of engineering ceramics collected by a digital microscope. The sampling offset and total gray levels of surface images were determined firstly. Then 4 GLCMs were built up to calculate the average of texture features. And 6 parameters were fixed as main texture parameters. Furthermore, the multiple nonlinear regression theory was used to assess the relation between the texture features and roughness Ra. By statistic test and comparison, the deviation of calculated Ra and actual Ra is less than 0.25. It is shown that this relation is much satisfactory and the method may be suitable for quickly measuring the roughness of ground ceramics.

• Periodical: Advanced Materials Research (Volumes 476-478)
• Pages: 1036-1040
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.476-478.1036
• Online since: February 2012
• Authors: Xin Li Tian, Jian Quan Wang, Bao Guo Zhang, Fu Qiang Li
• Keywords: Engineering Ceramic, Grinding Machining, Multiple Nonlinear Regression, Surface Roughness (SR), Textural Features

References

[1] J.F. Yang, X.L. Tian, Z.Y. Wu and A.Y. She: Acta Armamentarii Vol.29 (2008), p.1249

[2] R.M. Haralick, K. Shanmugam and I. Dinstein: IEEE Trans on Systems, Man & Cybernetics Vol.3 (1973), p.610

[3] R. W. Picard: Journal of Mathematical Imaging and Vision Vol.2 (1992), p.5

[4] J. Su, M. Li: Computer Engineering and Applications Vol.44 (2008), p.223

[5] S. L. Kiat, T. Costas: IEEE Trans on Geoscience and Remote Sensing Vol.37 (1999), p.780

[6] D.A. Clausi, M.E. Jernigan: IEEE Trans on Geoscience and Remote Sensing Vol.36 (1998), p.298

[7] H. Bo, F.L. Ma and L.C. Jiao: Acta Electronica Sinica Vol.34 (2006), p.155

[8] H.P. Pan: Study on Building and Applications of Automatic Appraise System for Surface Quality of Steel Balls (Harbin Institute of Technology, China 2000)

[9] Y.K. Chen, B. Lin and G.X. Zhang: Rare Metal Materials and Engineering Vol.37 (2006), p.116

[10] X.P. Ma, S.Y. Wang and W. Chen: Journal of University of Science and Technology Beijing Vol.29 (2007), p.220
