Preparation and Characterization of MAO Film with High Dense Layer

Zhi Song Shao; Ya Zhou; Gang Liu

doi:10.4028/www.scientific.net/AMR.476-478.503

Paper Titles

Synthesis of Silver Nanoparticles through Two-Phase Reaction by the Reduction of N, N-Dimethylformamide
p.484

A Study on Face Strain and Interlaminar Stress of Bamboo Plywood
p.488

Effects of Technological Parameters on Properties of Ni Film Prepared by Supercritical Carbon Dioxide Emulsion
p.493

Accurate Faraday Measurement System for PBB Glasses in Current Transducer Application
p.498

Preparation and Characterization of MAO Film with High Dense Layer
p.503

Application of Centroidal Voronoi Diagram in Numerical Model of Microforming Process
p.508

Effect of Pd on CH₄ Reforming with CO₂ Catalyzed by Ni over Mixed Titian –Alumina Support
p.513

Study on Mechanical Properties of PEEK Composites
p.519

Study on the Interface Parameters of Composite Materials with Consideration of the Effect of Thermal Stresses
p.526

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 476-478Preparation and Characterization of MAO Film with...

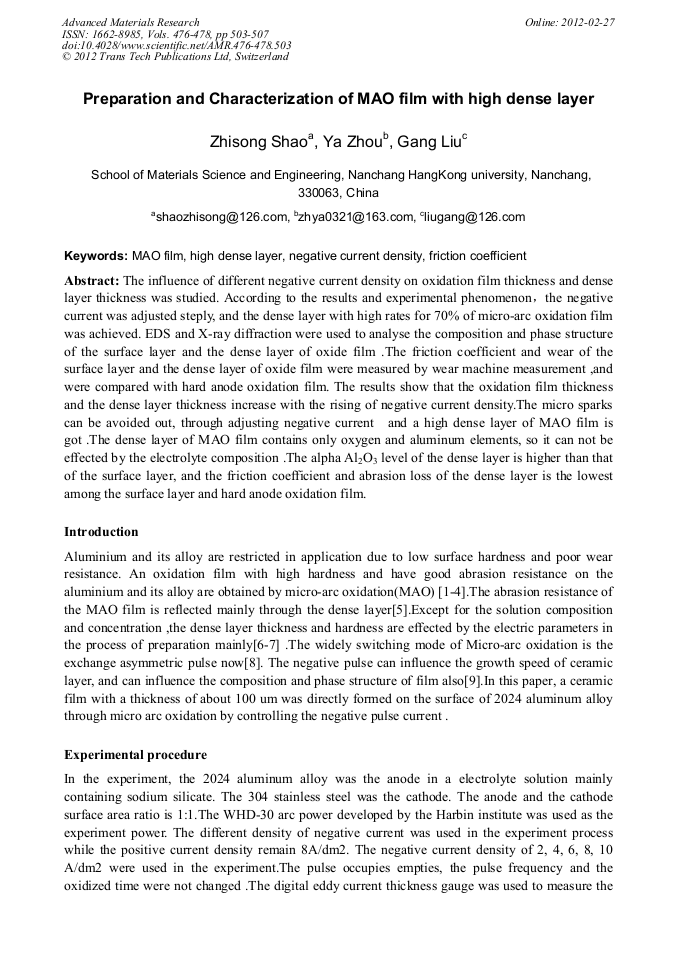

Preparation and Characterization of MAO Film with High Dense Layer

Abstract:

The influence of different negative current density on oxidation film thickness and dense layer thickness was studied. According to the results and experimental phenomenon，the negative current was adjusted steply, and the dense layer with high rates for 70% of micro-arc oxidation film was achieved. EDS and X-ray diffraction were used to analyse the composition and phase structure of the surface layer and the dense layer of oxide film .The friction coefficient and wear of the surface layer and the dense layer of oxide film were measured by wear machine measurement ,and were compared with hard anode oxidation film. The results show that the oxidation film thickness and the dense layer thickness increase with the rising of negative current density.The micro sparks can be avoided out, through adjusting negative current and a high dense layer of MAO film is got .The dense layer of MAO film contains only oxygen and aluminum elements, so it can not be effected by the electrolyte composition .The alpha Al2O3 level of the dense layer is higher than that of the surface layer, and the friction coefficient and abrasion loss of the dense layer is the lowest among the surface layer and hard anode oxidation film.
