Destabilizing Effect of Zirconia Products Caused by Aluminum

Xiao Li Tian; Qun Hu Xue; Chong Bo Xue

doi:10.4028/www.scientific.net/AMR.476-478.799

Paper Titles

Effects of Temperature on Tensile Strength of Carbon Fiber and Carbon/Epoxy Composite Sheets
p.778

Value Accounting and Audit the Integrity of the Game Analysis
p.785

Spinning Effluents Treatment from Dry-Spun Acrylic Fiber Producing by Integrated Membrane Filtration
p.789

Tunable Ferromagnetism above Room-Temperature in Self-Assembled (In,Mn)As Diluted Magnetic Semiconductor Quantum Dots on Be-Doped Al_xGa_1-XAs Template by Molecular Beam Epitaxy
p.793

Destabilizing Effect of Zirconia Products Caused by Aluminum
p.799

Development of Cam Design and Simulation System
p.805

Preparation and Characterization of Polyaniline / Montmorillonite Composite by Situ Emulsion Polymerization
p.809

Antifungal Properties of Ag-SiO₂ Core-Shell Nanoparticles against Phytopathogenic Fungi
p.814

Preparation, Characterization and Dielectric Properties of BT/PI Film
p.819

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 476-478Destabilizing Effect of Zirconia Products Caused...

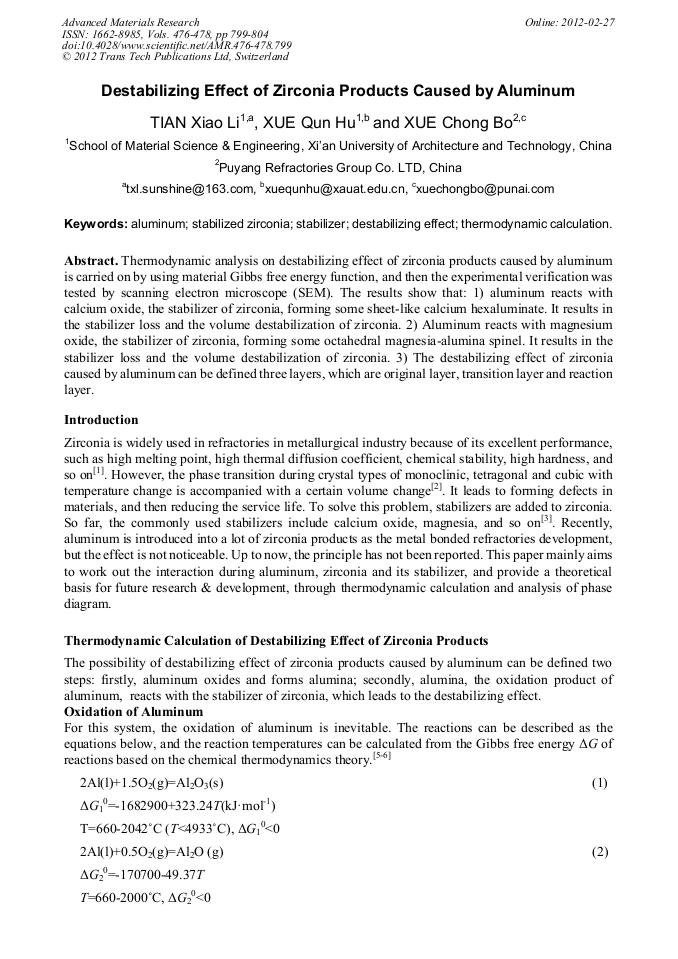

Destabilizing Effect of Zirconia Products Caused by Aluminum

Abstract:

Thermodynamic analysis on destabilizing effect of zirconia products caused by aluminum is carried on by using material Gibbs free energy function, and then the experimental verification was tested by scanning electron microscope (SEM). The results show that: 1) aluminum reacts with calcium oxide, the stabilizer of zirconia, forming some sheet-like calcium hexaluminate. It results in the stabilizer loss and the volume destabilization of zirconia. 2) Aluminum reacts with magnesium oxide, the stabilizer of zirconia, forming some octahedral magnesia-alumina spinel. It results in the stabilizer loss and the volume destabilization of zirconia. 3) The destabilizing effect of zirconia caused by aluminum can be defined three layers, which are original layer, transition layer and reaction layer.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 476-478)

Pages:

799-804

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.476-478.799

Citation:

Cite this paper

Online since:

February 2012

Authors:

Xiao Li Tian, Qun Hu Xue, Chong Bo Xue

Keywords:

Aluminum (Al), Destabilizing Effect, Stabilized Zirconia, Stabilizer, Thermodynamic Calculation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Bingkun Xiong: Preparation process and application of zirconia (In Chinese). Beijing, the metallurgical industry press(2008)

Google Scholar

[2] Chengxun Wang, Yixian Zhang and Qing Yu: Zirconia composite refractory (In Chinese). Beijing, the metallurgical industry press(2003)

Google Scholar

[3] Yiwen Zhu, Jierong Yan, Lei Wang, et al: Jiangsu Metallurgy (In Chinese). Vol.30(3)(2002), pp.24-25

Google Scholar

[4] Shengli Jin, Xiaochao Yan and Yawei Li: Journal of Wuhan University of Science and Technology (In Chinese). Vol.32(2)(2009), pp.178-180

Google Scholar

[5] Dalun Ye and Jianhua Hu: Thermodynamic data handbook of practical inorganic compounds (In Chinese). Beijing, the metallurgical industry press(2002)

Google Scholar

[6] Zhaoyou Chen: Chemical thermodynamics and refractory (In Chinese). Beijing, the metallurgical industry press(2005)

Google Scholar

[7] Guangping Li: Phase diagram and phase equilibrium of refractory (In Chinese). Beijing, the metallurgical industry press(1994)

Google Scholar

[8] Chuichang Zhang and Shaowei Zhang: Calculation of phase diagram and its application in refractory (In Chinese). Beijing, the metallurgical industry press(1993)

Google Scholar
