Fault Diagnosis of Bearing Based on the Ultrasonic Amplitude Histogram

Abstract:

The bearing of rotating machine often fails due to the frictional forces of rolling element, such frictional forces often generate a series of ultrasound, and that is to say, there must be some necessary relationships between the faults of rotating machinery equipment and the ultrasound from the equipment. In this paper, the histogram method which is the simplest method in statistics is used to analyze the ultrasonic signals. Through the analysis, the bearing faults could be preliminarily diagnosed. A verification research with respect to vibration method is carried out to analyze the effectiveness and superiority of ultrasonic method by using the histogram. Extensive experiments have been performed in a bearing vibration measuring instrument, and the results indicated that the fault diagnosis method based on the ultrasonic amplitude histogram is more useful than the method based on the vibration amplitude histogram. In addition, it is more sensitive and more effective than the method based on vibration amplitude histogram.

You might also be interested in these eBooks

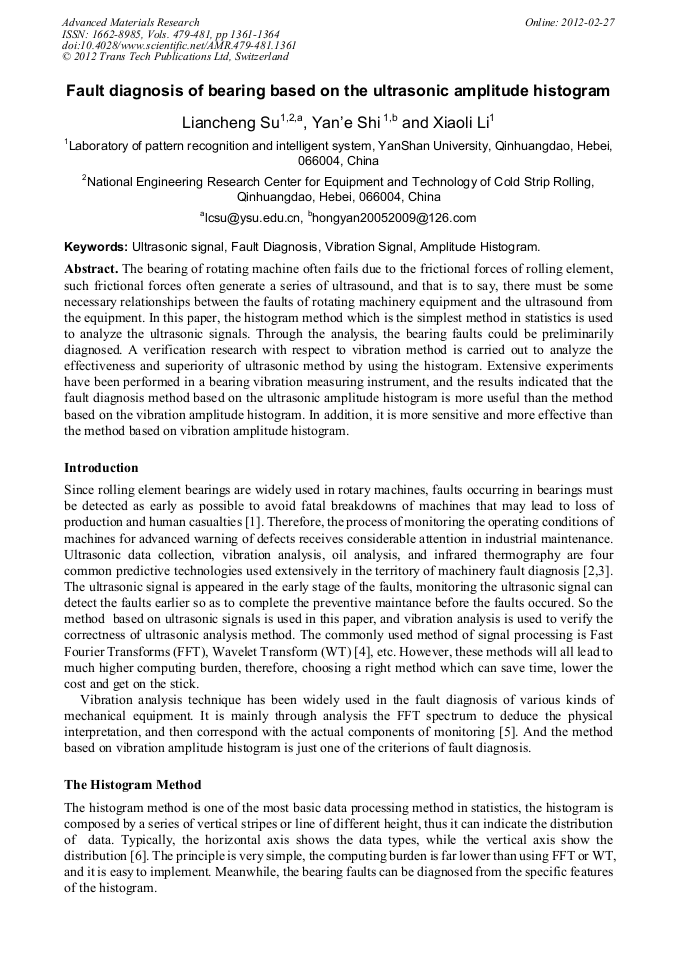

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 479-481)

Pages:

1361-1364

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.479-481.1361

Citation:

Cite this paper

Online since:

February 2012

Authors:

Lian Cheng Su, Yan E Shi, Xiao Li Li

Keywords:

Amplitude Histogram, Fault Diagnosis, Ultrasonic Signal, Vibration Signal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Ning Hua Zhu and Ji Min Wen, and Hai Sheng San: Quantum Electronics. Vol.42 (2006), pp.241-248

Google Scholar

[2] Han.D, Bhattacharya. S, Chatterjee. A: Computer & Digital Techniques. Vol.1 (2007), pp.170-179

Google Scholar

[3] Luisa F.Villa, Aníbal Reñones, Jose R.Peránand Luis J.de Migue: Mechanical Systems and Signal Processing. Vol.25 (2011), pp.2157-2168

Google Scholar

[4] Wenxian Yang, Peter J. Tavner: IEEE Transactions on industrial electronics. Vol.57 (2010), pp.263-271

Google Scholar

[5] F.Deneuville, M.Duquennoy, Ouaftouh, M.Ourak, F.Jenot: Ultrssonics. Vol. 49(2009), pp.89-93

DOI: 10.1016/j.ultras.2008.06.010

Google Scholar

[6] Mark A. Barnes, Soumya K. Nag, Herber U. Fluhler, U.S. Patent 6,552,677. (2003)

Google Scholar

[7] Zaher, A., McArthur, S.D.J., Infield, D.G: Wind Energy. Vol. 12 (2009), pp.574-593

Google Scholar
