A Low-Power ΣΔ Modulator Using Asynchronous SAR Quantizer for Sensor Application

Abstract:

This paper presents a low power ΣΔ modulator for a low power microsensor application. The ΣΔ modulator adopts second-order single loop topology with input feed-forward path. An asynchronous 4-bit successive approximation (SAR) quanztizer is employed to digitize the analog input. Inherent summation of SAR quantizer is utilized as analog summation. The switched operational amplifier is used in first integrator to reduced power consumption. The modulator, simulated at the transistor level using 0.13-μm CMOS technology, obtains a peak SNDR of 93 dB over an input signal of 5 kHz and simulation power consumption is 340 μW from 1-V supply.

You might also be interested in these eBooks

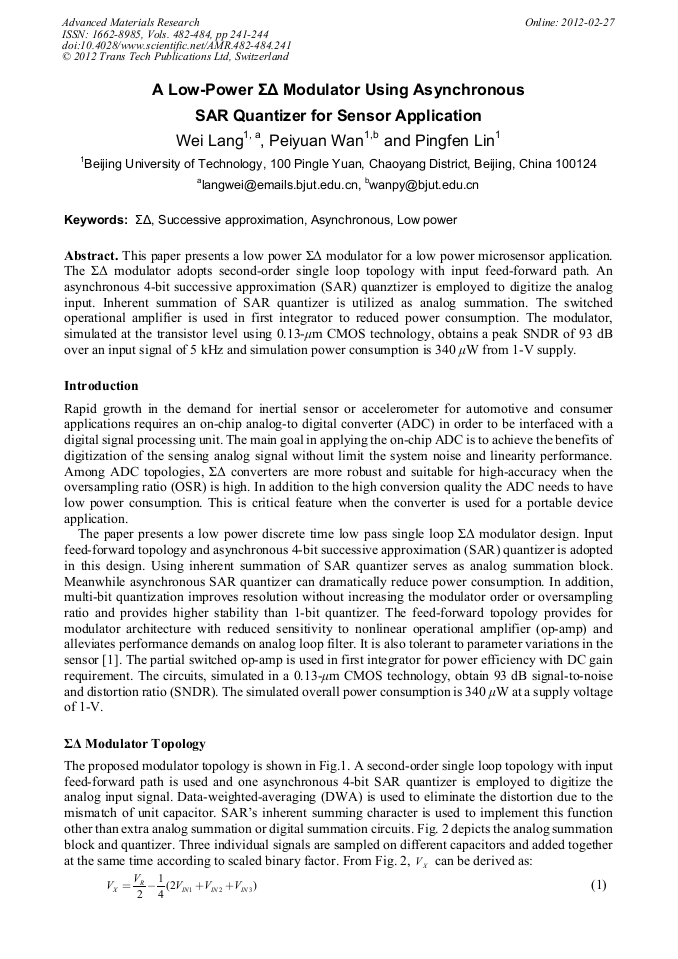

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 482-484)

Pages:

241-244

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.482-484.241

Citation:

Cite this paper

Online since:

February 2012

Authors:

Wei Lang, Pei Yuan Wan, Ping Fen Lin

Keywords:

Asynchronous, Low Power, Successive Approximation, ΣΔ

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Vladimir P.Petkov, Bernhard E.Boser , IEEE Journal of Solid-State Circuits, Vol.40, No.8, pp.1602-1609, Aug 2005.

Google Scholar

[2] Y. Yang, A. Chokhawala, M. Alexander, J. Melanson, and D. Hester, "A 114dB 68mW Chopper-Stablized Stereo Multi-Bit Audio A/D Converter, " IEEE ISSCC Dig. Tech. Papers, pp.56-57, Feb. (2003)

DOI: 10.1109/isscc.2003.1234205

Google Scholar

[3] K. Gulati, and H.-S. Lee, IEEE J. Solid-State Circuits, vol. 33, no. 12, DEC. 1998.

Google Scholar

[4] Liyuan Liu, Dongmei Li, Liangdong Chen, Chun Zhang, Shaojun Wei, and Zhihua Wang, "A 1V 350μW 92dB 24kHz ΔΣ Modulator in 0.18μm CMOS", IEEE ASSCC Dig. Tech. Papers, pp.1-4, Nov. 2010.

DOI: 10.1109/asscc.2010.5716629

Google Scholar

[5] M.van Elzakker, E. van Tuijl, P. Geraedts, D.Schinkel, E.Klumperink, and B. Nauta, "A 1.9 μW 4.4fJ/conversion-step 10b 1 MS/s charge-redistubution ADC," IEEE ISSCC Dig. Tech. Papers, pp.244-245, Feb.2008.

DOI: 10.1109/isscc.2008.4523148

Google Scholar

[6] P. Harpe, C. Zhou, X. Wang, G. Dolmans, and H. de Groot, "A 12fJ/conversion-step 8bit 10 MS/s asynchronous SAR ADC for low energy radios," IEEE ESSCIRC Dig. Tech. Papers, pp.214-217, Sept. 2010.

DOI: 10.1109/esscirc.2010.5619891

Google Scholar
