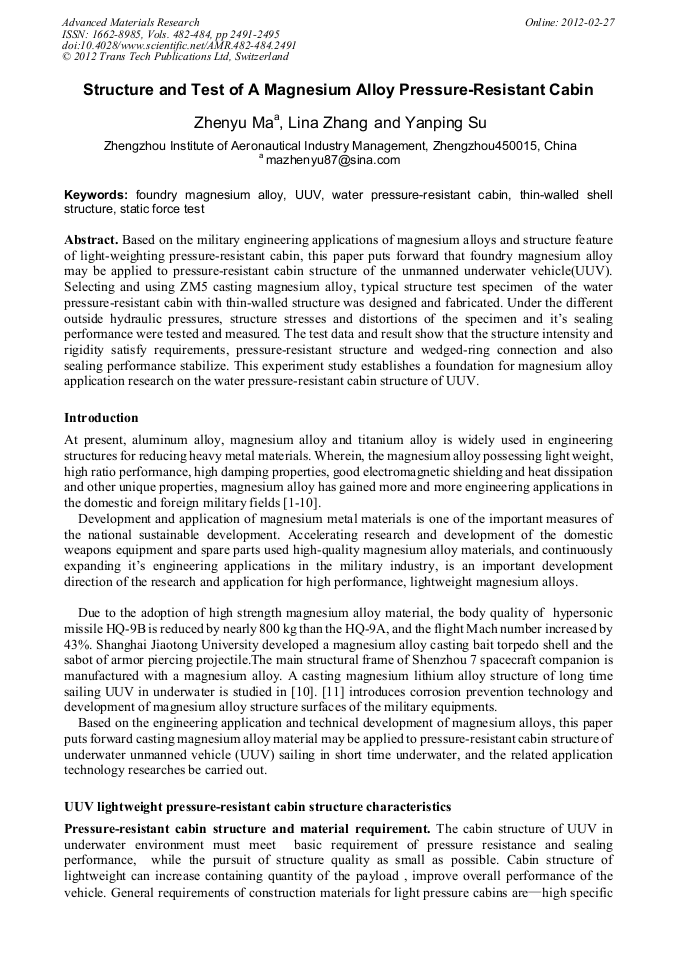

Structure and Test of a Magnesium Alloy Pressure-Resistant Cabin

Abstract:

Based on the military engineering applications of magnesium alloys and structure feature of light-weighting pressure-resistant cabin, this paper puts forward that foundry magnesium alloy may be applied to pressure-resistant cabin structure of the unmanned underwater vehicle(UUV). Selecting and using ZM5 casting magnesium alloy, typical structure test specimen of the water pressure-resistant cabin with thin-walled structure was designed and fabricated. Under the different outside hydraulic pressures, structure stresses and distortions of the specimen and it’s sealing performance were tested and measured. The test data and result show that the structure intensity and rigidity satisfy requirements, pressure-resistant structure and wedged-ring connection and also sealing performance stabilize. This experiment study establishes a foundation for magnesium alloy application research on the water pressure-resistant cabin structure of UUV.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 2491-2495
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.2491
• Online since: February 2012
• Authors: Zhen Yu Ma, Li Na Zhang, Yan Ping Su
• Keywords: Foundry Magnesium Alloy, Static Force Test, Thin-Walled Shell Structure, UUV, Water Pressure-Resistant Cabin

References

[1] TANG Quan-bo, HUANG Shao-dong,WU Tai-bin:Ordance Material Science and Engineering, Vol.30(2) (2007), p.69 (In Chinese).

[2] SHI Chang-xu, LI Heng-de, WANG Dian-zuo, etal: Materials Review, Vol.15(4)( 2001), p.5(In Chinese).

[3] Paul Lyon：Magnesium Technology (2004), p.311.

[4] Tyrone L. Jones, Richard D. DeLorme, etal：ARL-TR-4077(2007), p.1.

[5] Hisao Watarai：Quarterly Review (18)( 2006), p.84.

[6] GAO Jing：Rare Metals Letters, (11)(2002), p.9 (In Chinese).

[7] ZHONG Hao, LIU Pei-ying, ZHOU Tie-tao:Aviation Maintenance & Engineering, (4) (2002), p.41 (In Chinese).

[8] YU Kun, LI Wen-xian, WANG Ri-chu, etal: The Chinese Journal of Nonferrous Metals, Vol.13(2)(2003), p.277 (In Chinese).

[9] DING Wen-jiang, WU Yu-juan, PENG Li-ming, etal: Materials China, Vol.29(8) (2010), p.37 (In Chinese).

[10] Tadahiro Hyakudome, Satoshi Tsukioka,Ishibashi Shojiro,etal:Proceedings of the Seventeenth (2007) International Offshore and Polar Engineering Conference, Lisbon (2007), p.1126.

[11] WEI Shi-cheng, XU Bin-shi, WEI Dong-xing, etal: Journal of Academy of Armored Force Engineering, Vol.20(6) (2006), p.79 (In Chinese).

[12] ZUO Yu, XIONG Jin-ping: Engineering Material and its Corrosion Resistance (Sinopec Press, Beijing 2008) (In Chinese).

[13] Practical Handbook of Engineering Materials ( Standard Press of China, Beijing 1989） (In Chinese).

[14] GB/T1177-1991 (In Chinese).
