Study on the Formation Mechanism and Control of Untrimmed Aluminium Foil’s Surface Dirty Defect

Jing Zhong Gao; Shu De Zhou; Guo Liang Zhang; Xiang Hua Kong

doi:10.4028/www.scientific.net/AMR.485.433

Paper Titles

Modeling for Dynamic Topology of Equipment Support Information Network with Certain Equipment Materials
p.417

Energy Potentiality of Crops Straw Resources in Yunnan
p.421

City Energy Saving Assessment Based on Fuzzy Hierarchical Analysis - A Case Study of Wuhan City in China
p.425

Study and Application for Corrosion-Resistant Material Selection of Tubing and Casing in Sour Gas Reservoirs under Coexistence of H₂S and CO₂
p.429

Study on the Formation Mechanism and Control of Untrimmed Aluminium Foil’s Surface Dirty Defect
p.433

Performance and Microbial Characteristics of a Hybrid Biological Reactor Treating Industrial Wastewater
p.438

Synthesis of Al₃Ti(PO₄)_4.3333 and its Selectivity to Li⁺Exchange
p.442

Influencing Parameters Analysis of Solar Energy Regenerator Performance
p.446

Study of an Inorganic Ion Exchanger AlTi(PO₄)_2.3333
p.450

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 485Study on the Formation Mechanism and Control of...

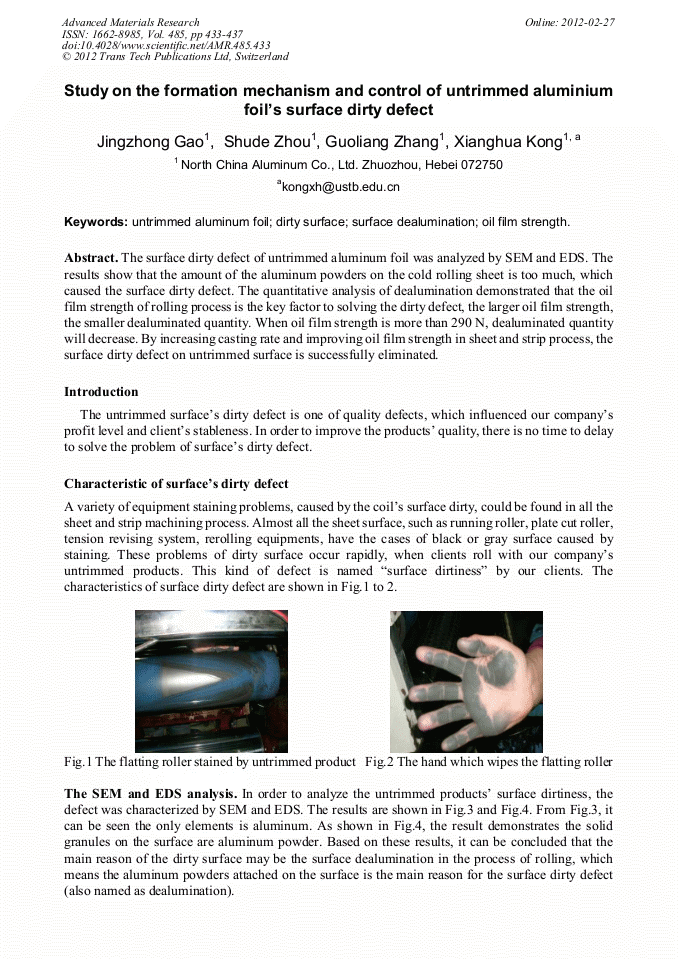

Study on the Formation Mechanism and Control of Untrimmed Aluminium Foil’s Surface Dirty Defect

Abstract:

The surface dirty defect of untrimmed aluminum foil was analyzed by SEM and EDS. The results show that the amount of the aluminum powders on the cold rolling sheet is too much, which caused the surface dirty defect. The quantitative analysis of dealumination demonstrated that the oil film strength of rolling process is the key factor to solving the dirty defect, the larger oil film strength, the smaller dealuminated quantity. When oil film strength is more than 290 N, dealuminated quantity will decrease. By increasing casting rate and improving oil film strength in sheet and strip process, the surface dirty defect on untrimmed surface is successfully eliminated.
